NTP Time Server

Name: 64 channel GPS Receiver Public Network Time Server with 2 LAN Ports
Availability: InStock

Home NTP Time Server

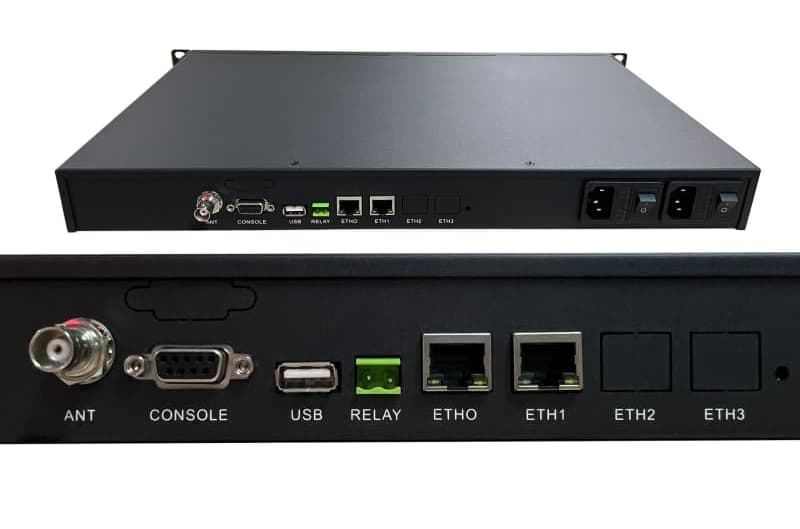

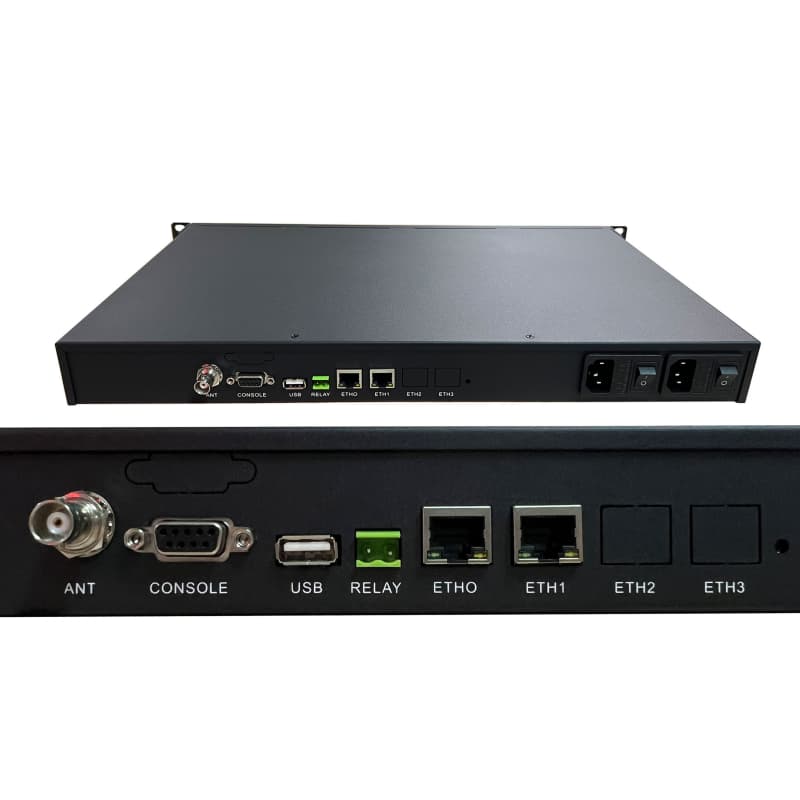

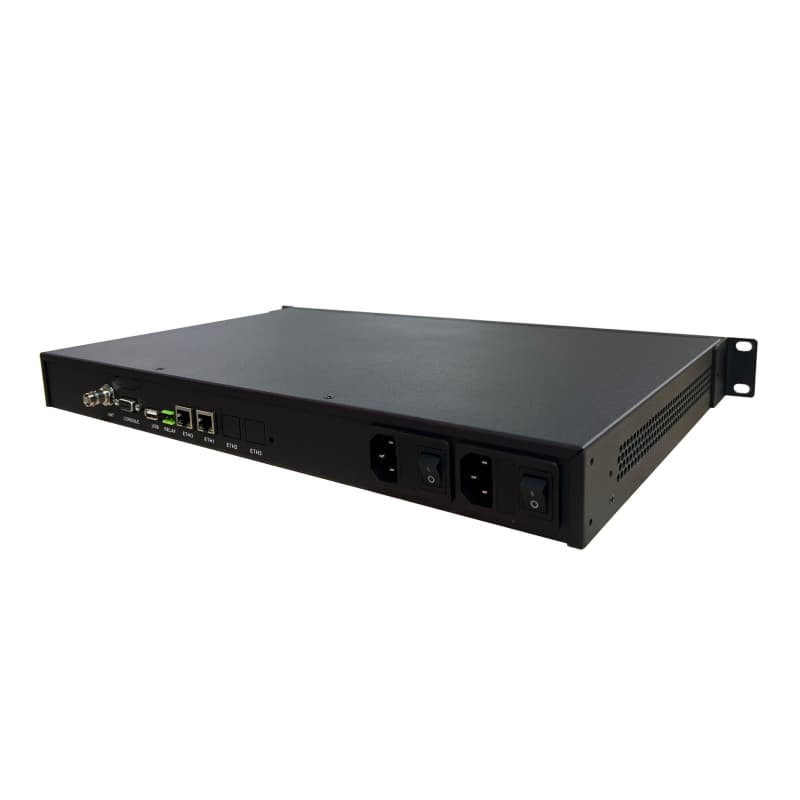

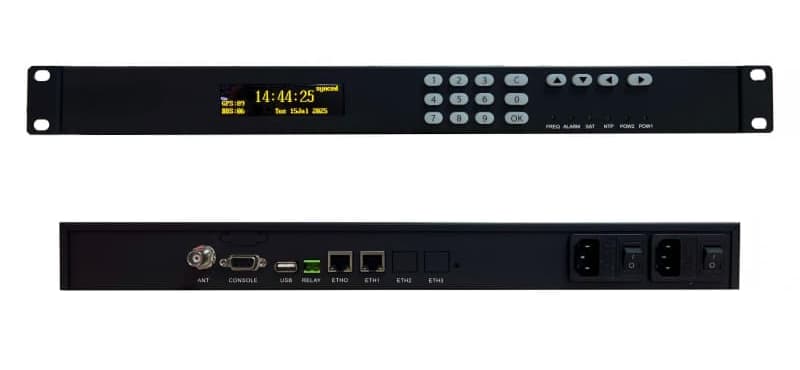

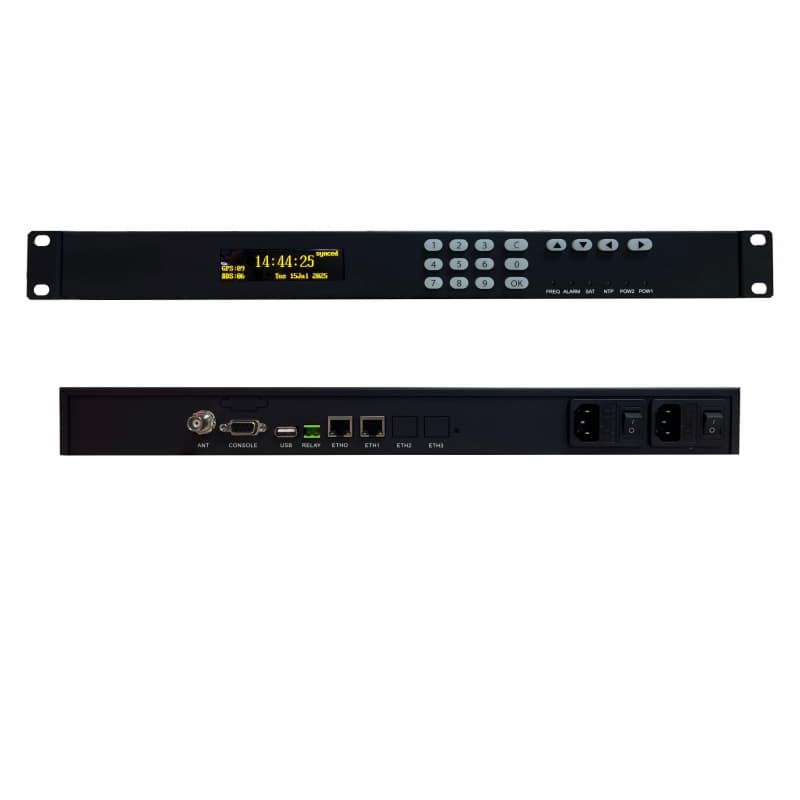

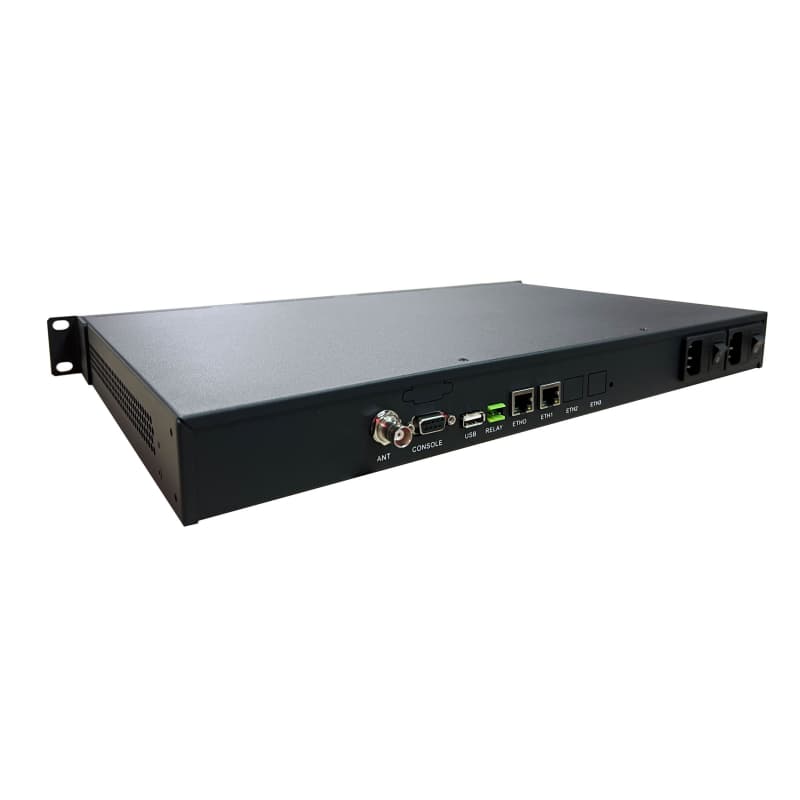

64 channel GPS Receiver Public Network Time Server with 2 LAN Ports

64 channel GPS Receiver Public Network Time Server with 2 LAN Ports

The Public Public Network Time Server is a high-performance network time synchronization solution. It achieves superior Stratum 1 accuracy by receiving signals from GPS and BeiDou satellites, ensuring high synchronization with UTC time. The device features two independent LAN ports, supporting isolation and synchronization across different network segments, and can be flexibly configured to Stratum 2 mode for connection to a higher-level clock.

Item No :
NTP200
Order(MOQ) :
1pcs
OEM/ODM :
Yes
Color :
Black
Lead Time :
1 week
Weight :
11kg

Inquire Now

64 channel GPS Receiver Public Network Time Server with 2 LAN Ports

The GPS NTP Server Description

The NTP server is based on signals from global positioning satellites (GPS and BDS) as the reference source. The time reference in the GPS/BDS satellite signal is synchronized with Coordinated Universal Time (UTC), and the long-term frequency stability reaches the level of 10-13 of cesium atomic clocks, equivalent to slowing down by only one second every 300,000 years. Using this signal as a time reference to adjust the local time can eliminate the accumulated deviation caused by the lower accuracy of the local clock, greatly improving the timing accuracy of the server. The GPS time server NTP uses a professional GPS/BDS timing receiver, which has fast signal acquisition and reliable lock-in.

The GPS NTP Server Features

✔ Web-based management with high security cipher suite, supports HTTP/HTTPS. Supports CLI

configuration. Keyboard can be used for easy and fast configuration

✔ Exceptional time accuracy to UTC

✔ Uses RFC1119/1305 NTP

✔ Supports RFC1769/2030 SNTP

✔ Supports SNMP,with a serial port for to log in; supports syslog, with iptables security protection

✔ Use 2 types of satellite signals

✔ MTBF:90000 Hours

Technical Specification

Applications
• Synchronizes hundreds of thousands of NTP clients.
• Security-hardened for peace-of-mind time service operations.
• Multiple GbE NTP ports for easy network configuration and adaptation.
• Best-in-class time accuracy for improved log file timestamp precision and usability.
• Very reliable and easy-to-use network time appliance for modern networks and business
Operations
Network Protocols
RFC 1119 1305 NTP v2/v3/v4
RFC 1769 2030 SNTPv2/v3/ v4
SNMPv1/v2
SSH
HTTP/HTTPS
SFTP
Mechanical/Environmental
• Size: 44cm x 28.6cm x 4.4cm,1U rack mount, including BNCs.
• Power: 10W, 110-230V AC, 50Hz-60Hz, dual power supplies (with dual-corded connectors and load sharing)
• Operating temperature:-10℃~65℃
• Storage temperature:-40℃~85℃
Performance
GPS/BEIDOU receiver
64 channel GPS receiver
Supports GPS/BEIDOU frequency band
Cold-start time: 50 seconds
Hot-start time: 2 seconds
Sensitivity:-162dBm
1PPS accuracy: 15ns (1 sigma)
*depends on the location of the antenna
Server Time Level: Stratum 1
Server time precision: 1ms
Precision of client time: 10ms
Timing capacity: >20000 times per second
Oscillator Aging ( yearly)
OCXO: 1E-7
Rb: 1E-9
RAM: 256M
ROM: 256M
MTBF:90000 Hours
General
Weight: 110KG
Size: 55X41X35 cm
Material: Metal
Option: NTP100 (1 LAN port), NTP200 (2 LAN ports), NTP400 (4 LAN ports)
Package:Time servers, power cords, antenna kits, cables, lightning arrestors
Compliance
CE/ FCC/ RoHS/ ISO9001

Application Scenario

School
Time management is vital in both K-12 and higher education. All campuses require a synchronized time system to ensure punctual classes and organized schedules.
Transportation
The transit industry thrives on reliability rather than physical goods. Accurate timing is the backbone of punctual services and seamless passenger transfers.
Healthcare

Precision timing is essential for medical staff to attend to patients. It ensures accurate treatment logs and efficient coordination in critical environments.
Hotel

Synchronized time aligns guests with staff for a better experience. It streamlines hotel operations like checkouts and improves overall service consistency.

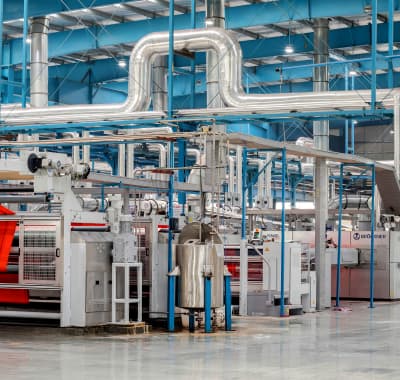

Manufacturing
To optimize output and meet deadlines, precise production timing is key. Unified clocks ensure every stage of the assembly line stays perfectly on schedule.
