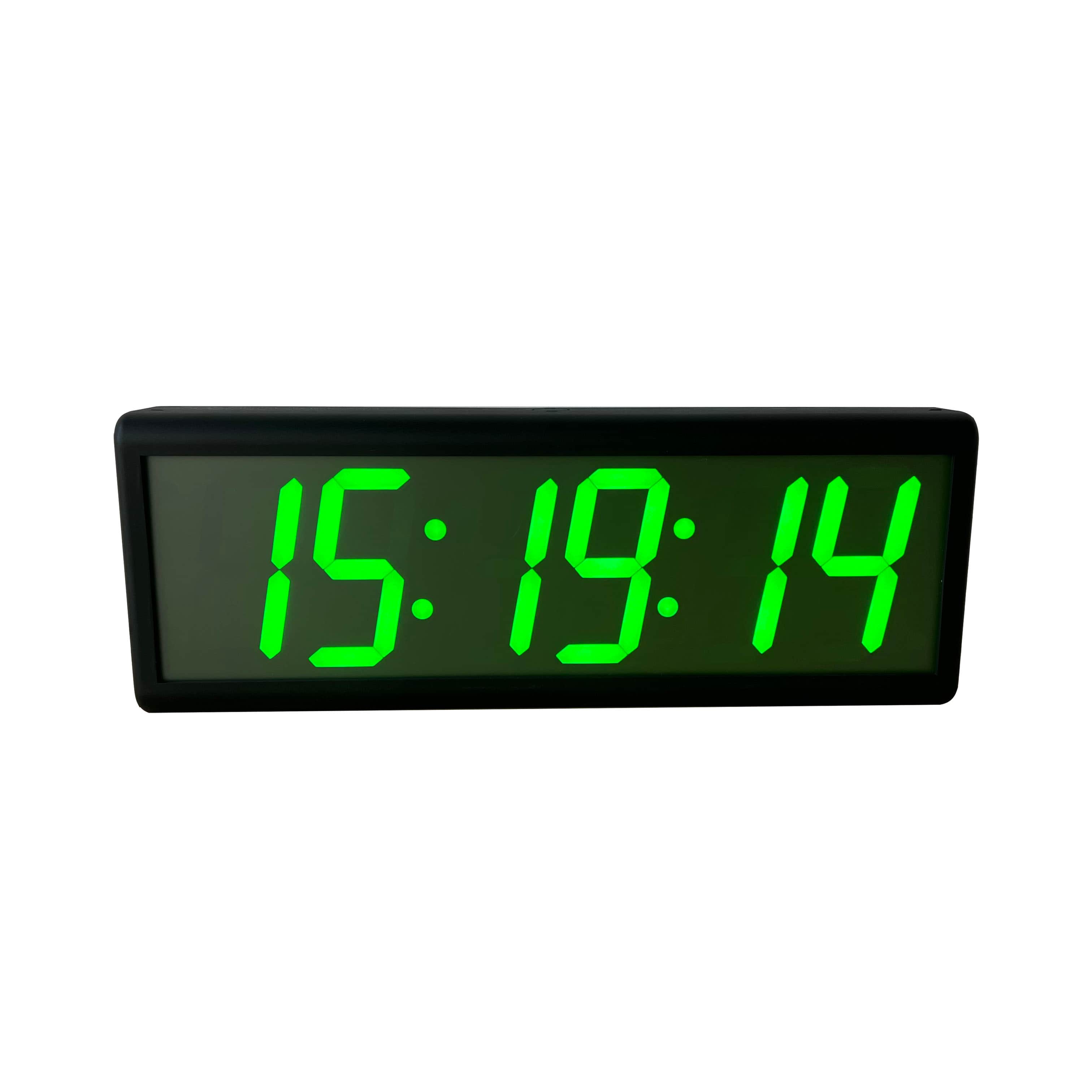

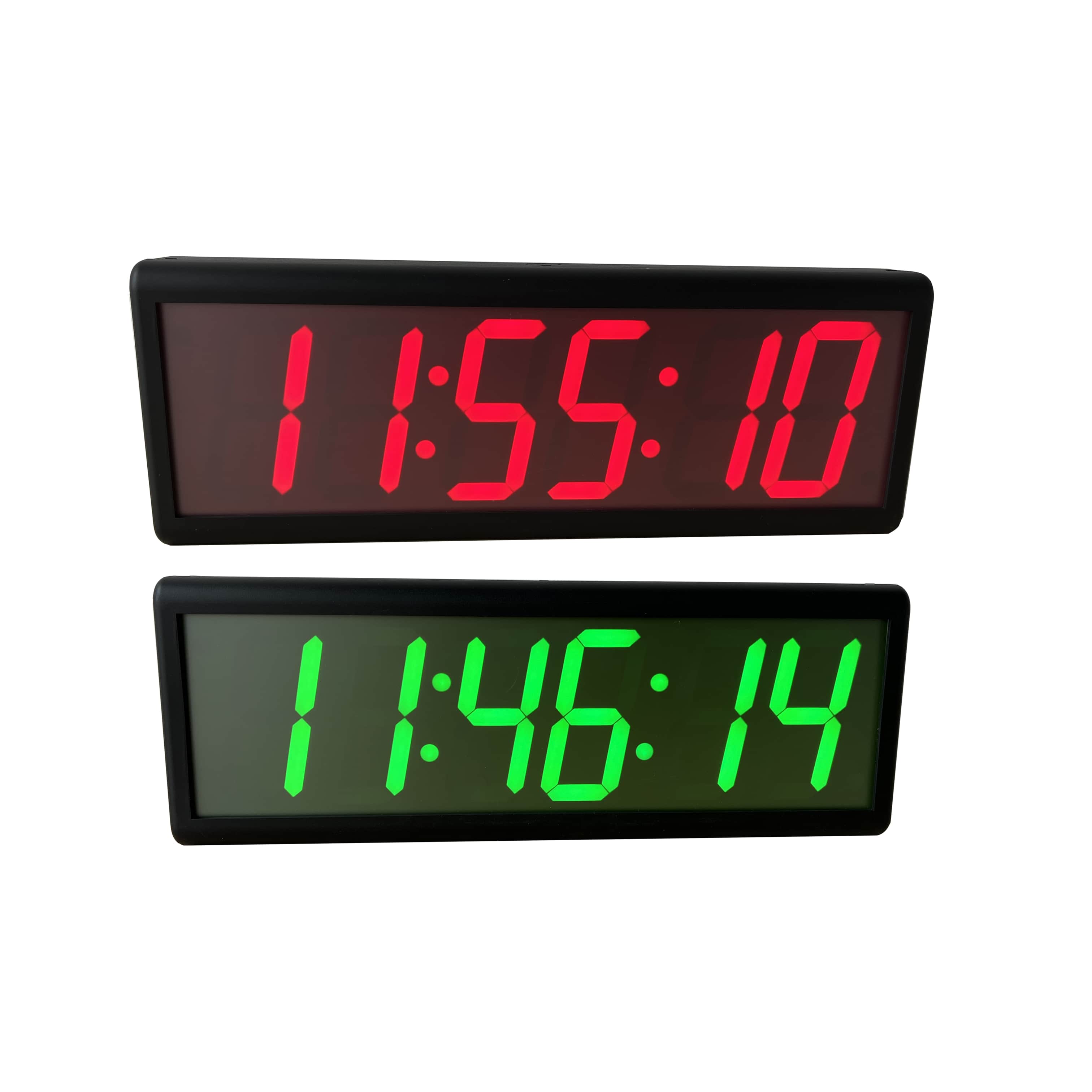

The high-precision WiFi Smart Wall Clock delivers real-time hours, minutes, and seconds display capabilities. Its vibrant LED colors in red and green (optional) make timekeeping a visual delight. It offers the flexibility of DHCP or static IP configurations for seamless connectivity. The clock operates in both 12-hour and 24-hour modes, accommodating various time preferences. It automatically adjusts for daylight saving time, ensuring accurate timekeeping year-round. Ideal for modern settings, the Wifi Synchronized Clock combines functionality with a sleek design, promising efficient time-tracking experience.
Item No :
SW300Order(MOQ) :
10pcsOEM/ODM :
YesColor :
Red, Green, YellowLead Time :
1 weekWeight :
0.9kg

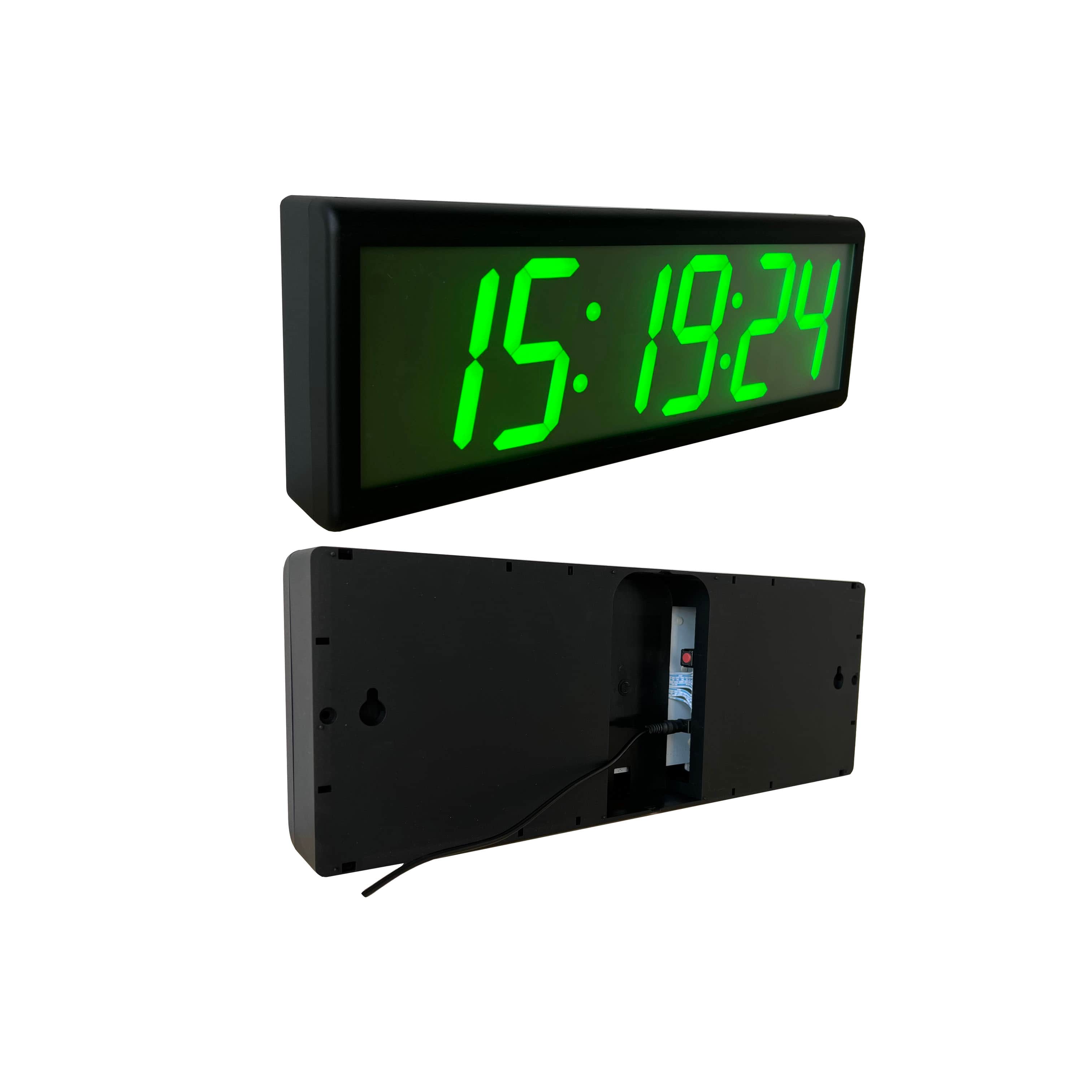

Product categories4" 6-digit WiFi Smart Wall Clock with Red, Green, Yellow or Amber LED HH, MM, SS
The WiFi Digital Clock Description

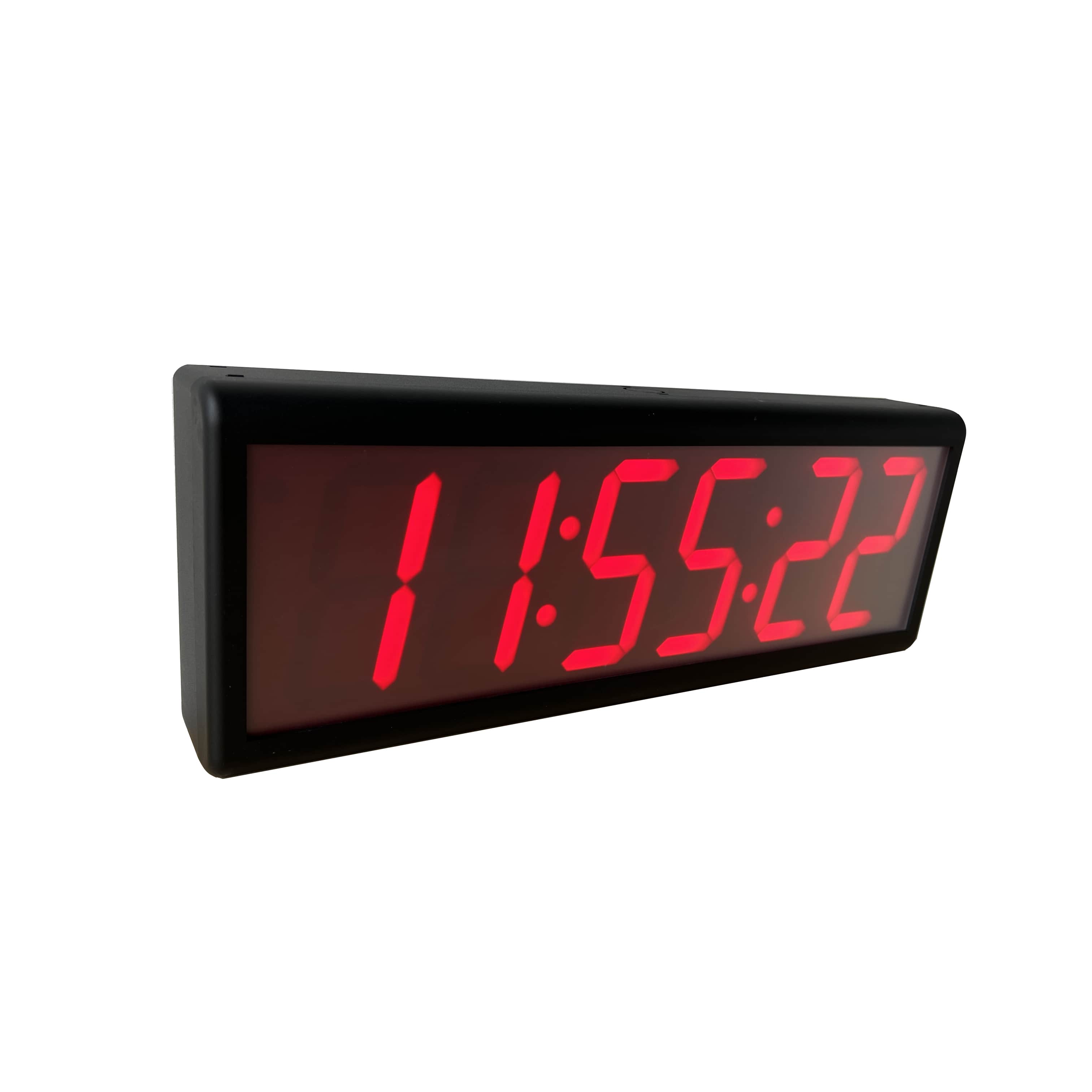

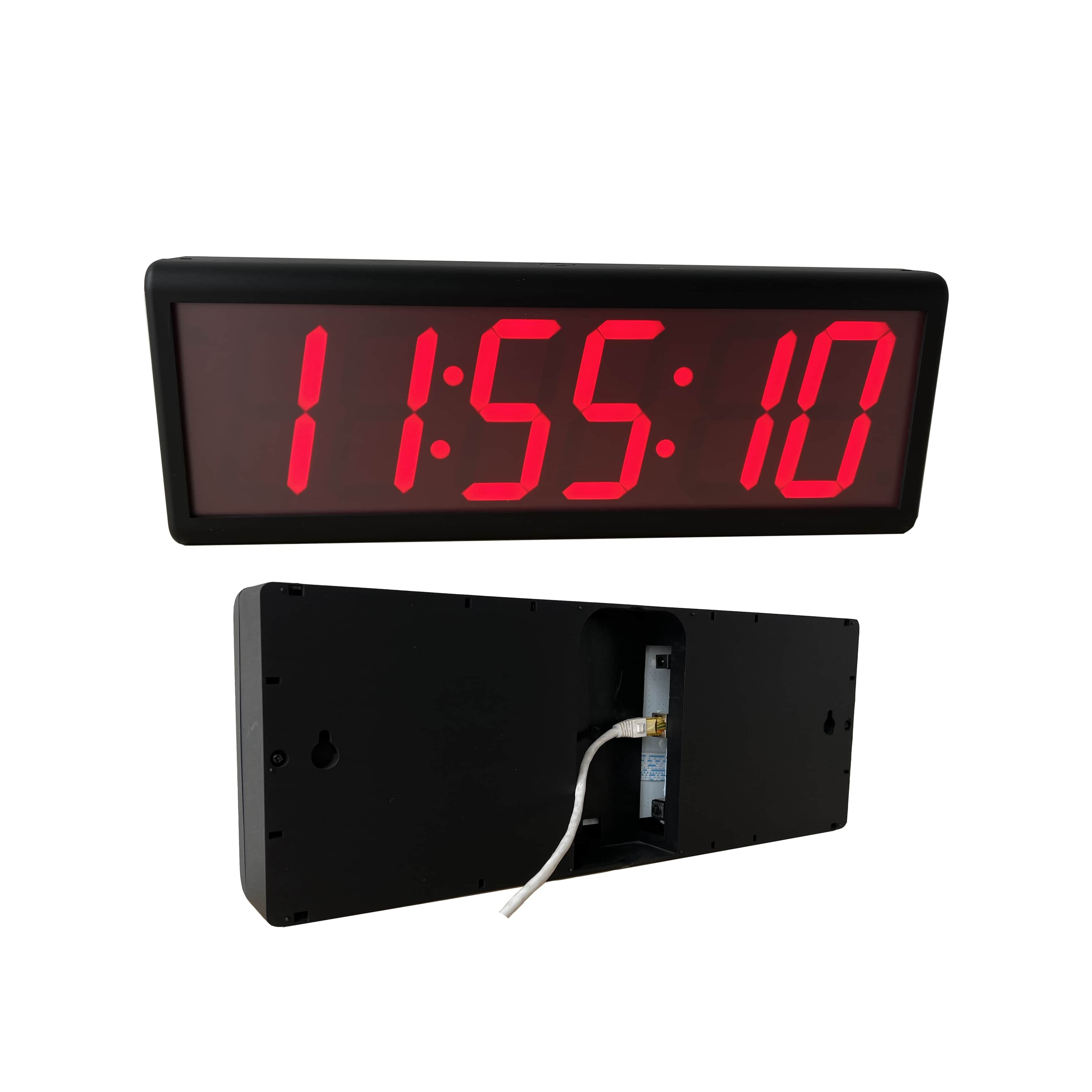

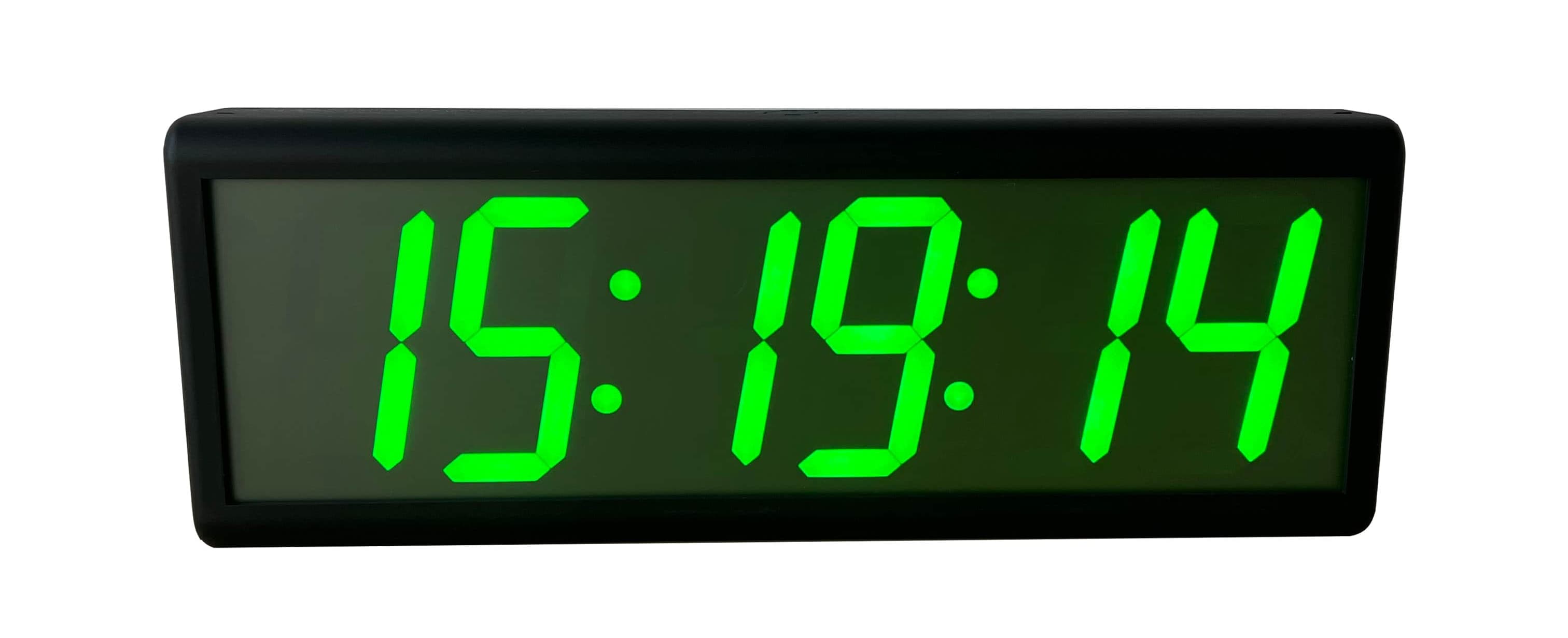

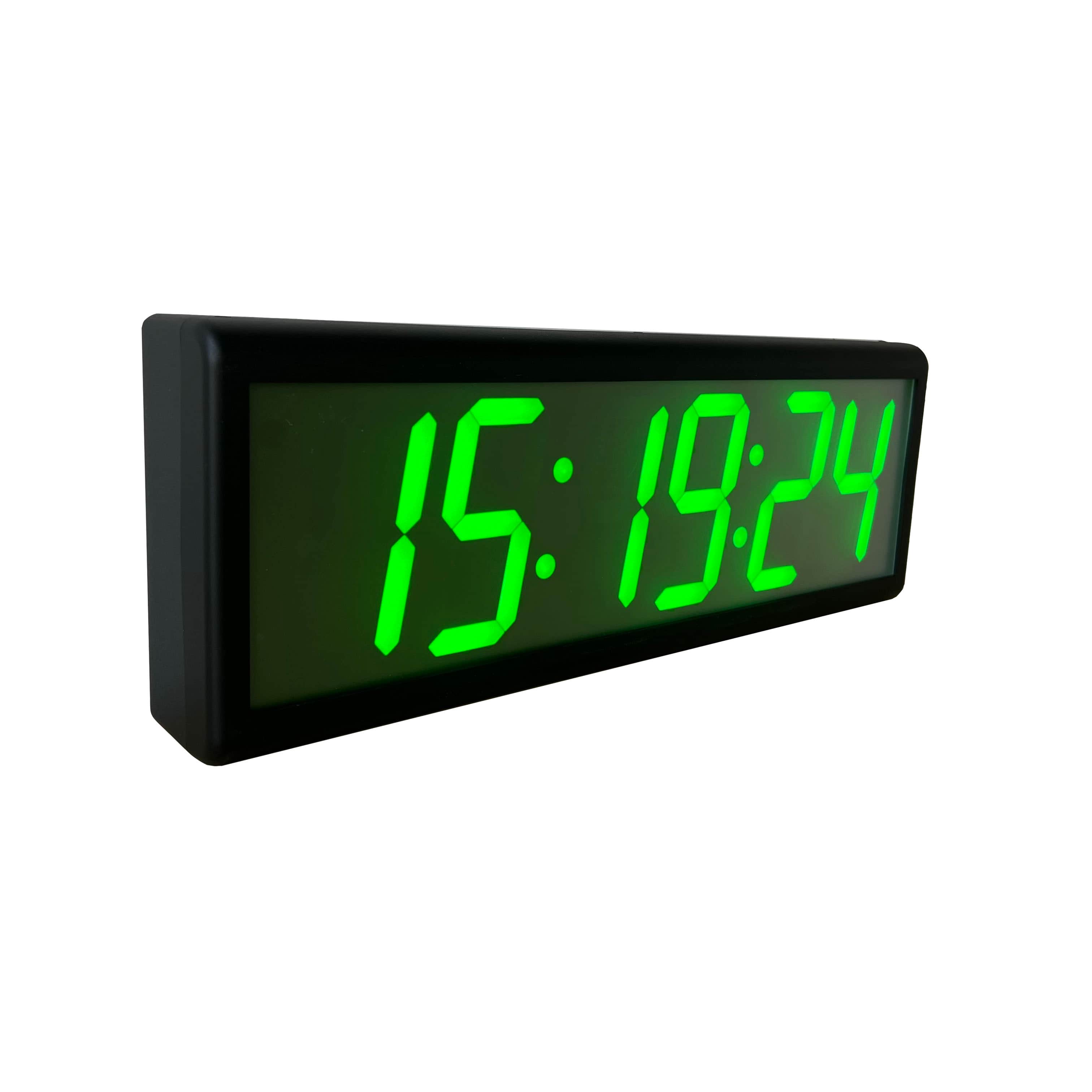

This single-sided 4-inch digital clock provides high-visibility timekeeping by displaying hours, minutes, and seconds. Featuring a 4-inch digit height and available in red or green LED options, the unit connects seamlessly to your network via WiFi, removing the need for physical Ethernet cables. It maintains precise time by automatically synchronizing with NTP servers, eliminating the cost and complexity of a master clock. Designed for versatility, it supports 12/24-hour formats and Daylight Saving Time, making it an ideal synchronized solution for schools, healthcare centers, manufacturing plants, and government facilities.
The WiFi Digital Clock Features

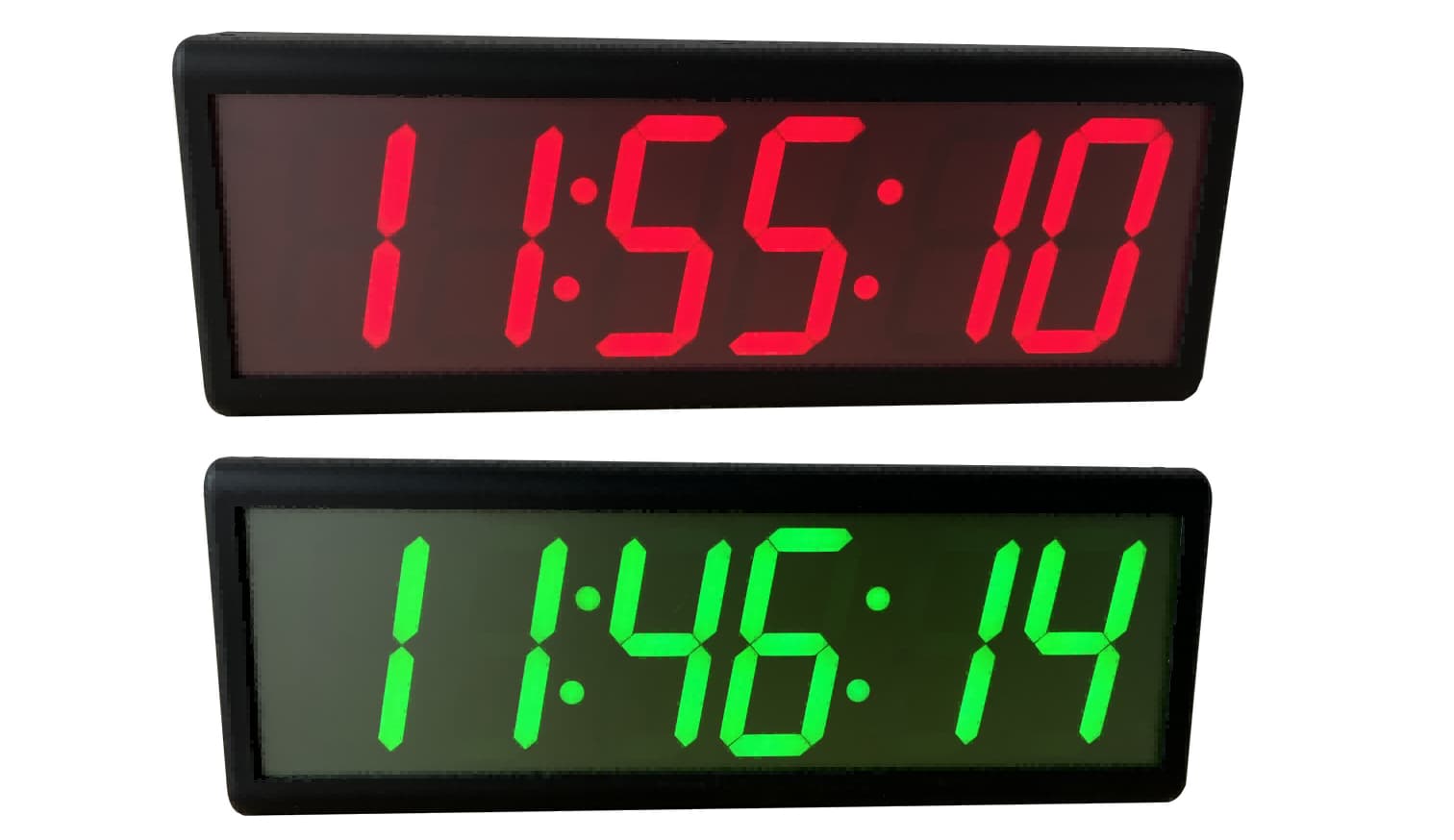

✔Vibrant Display: Selectable red or green LED colors to match your facility’s needs.
✔ Enhanced Reliability: Redundancy support for up to 5 SNTP servers ensures constant accuracy.
✔ Network Flexibility: Easy integration using either DHCP or Static IP addressing.
✔ Time Customization: Toggle easily between 12-hour and 24-hour display modes.
✔ Automated Updates: Built-in support for hassle-free Daylight Saving Time transitions.
Technical Specification
| Network | |
| Protocol Supported | NTP, HTTP |
| NTP Protocol Modes | C/S mode |
| Transport Protocol | TCP/IP |
| IP Addressing | Static IP address or DHCP |
| Device management | web or Free software |
| WiFi Frequency | 2.4GHz |
| Supports | IEEE 802.11 b/g/n |
| Encryption | WEP/ WPA-PSK/ WPA2-PSK |
| Receiving sensitivity | 802.11b:-86d8m(11Mbps); 802.11g:-71d8m(54Mbps) |
| General | |
| Operating Temperature | -10℃ to 60℃ |
| Operating Humidity | 90% maximum, non-condensing |
| Digit Size | 4 inches |
| Viewing Distance | 150 feet (50 meters) |
| Accuracy | approximately ±40 milliseconds |
| Mounting Option | Pendant, Cantilever, Wall, Surface |
| Time Format | 12 or 24 hour display |
| Material | Black |
| Color | Red, Green, Yellow, Amber optional |
| LED Color | Red |

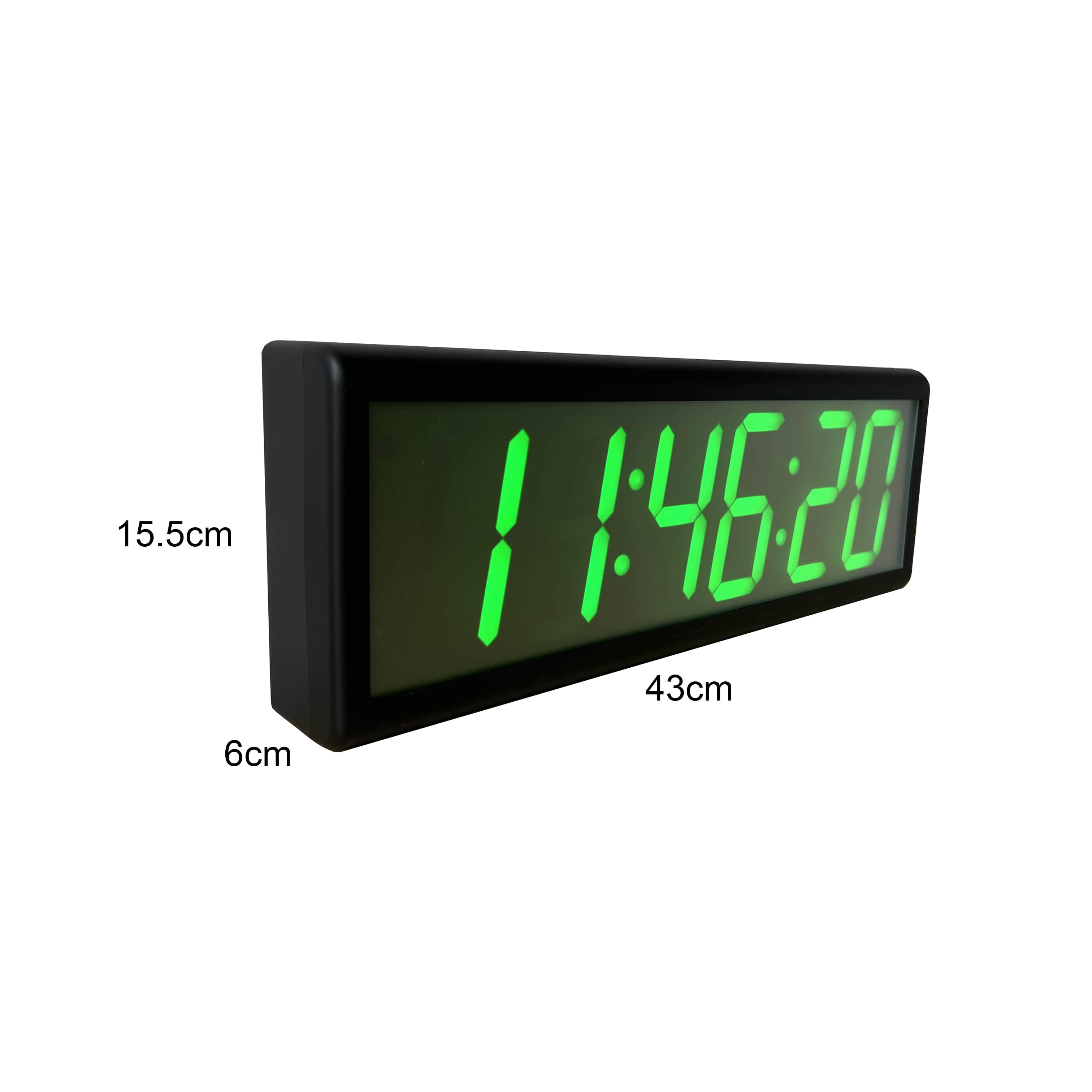

| Dimension | 43cm*15.7cm*5.7cm |
| Weight | 0.9KG |
| OEM/ODM | Yes |
| Warranty | 1 year |
| Compliance | |
| Certificate | CE, FCC, RoHS |

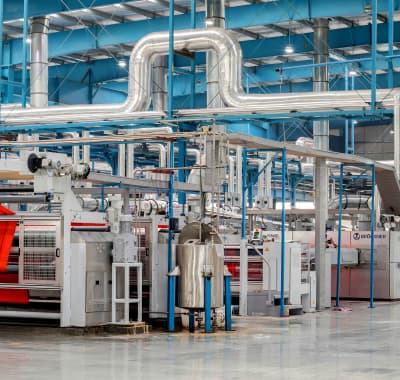

Application Scenario
FAQS
Q: Does the clock require NTP Server?
A: Yes,it will need a private or publick server to ensure uniform time source.
Q: How is the WiFI digital clock powered?
A: It's powered through a 5.5mm x 2.1mm plug DC adapter, 12V DC for red/amber/yellow clock, 18V DC for green clock.
Q: What information can the clock display?
A: It displays hours and minutes.
Q: Does the clock support 12/24-hour formats and Daylight Saving Time?
A: Yes. Both 12/24-hour modes and DST adjustment are supported.
Q: What network settings are available?
A: The clock supports DHCP or Static IP and can connect to up to 5 SNTP servers for redundancy.
Q: What extra function is optional?
A: The belling, temperature or humidity display is optional in hardware.Q: Does the clock require a master clock to keep accurate time?
