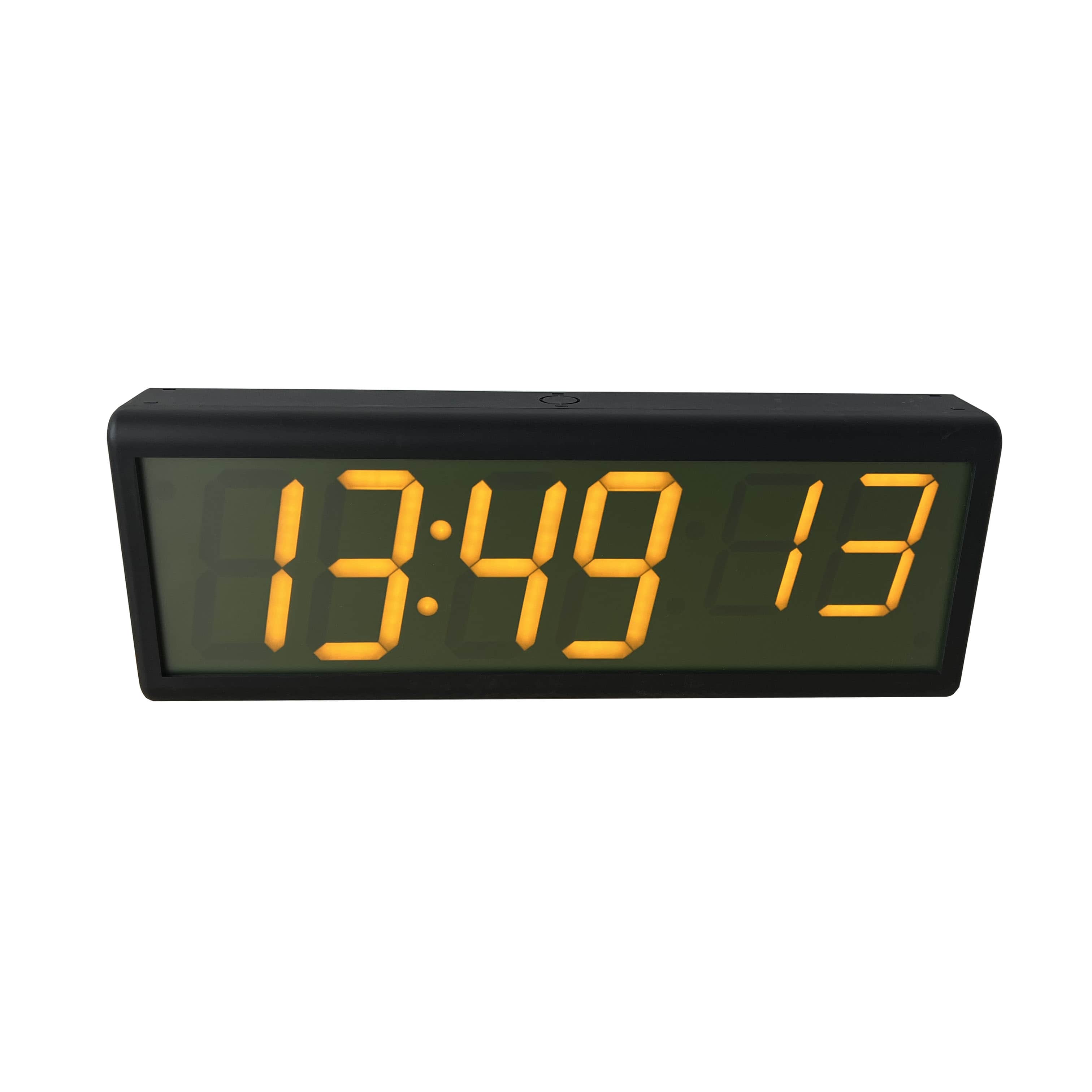

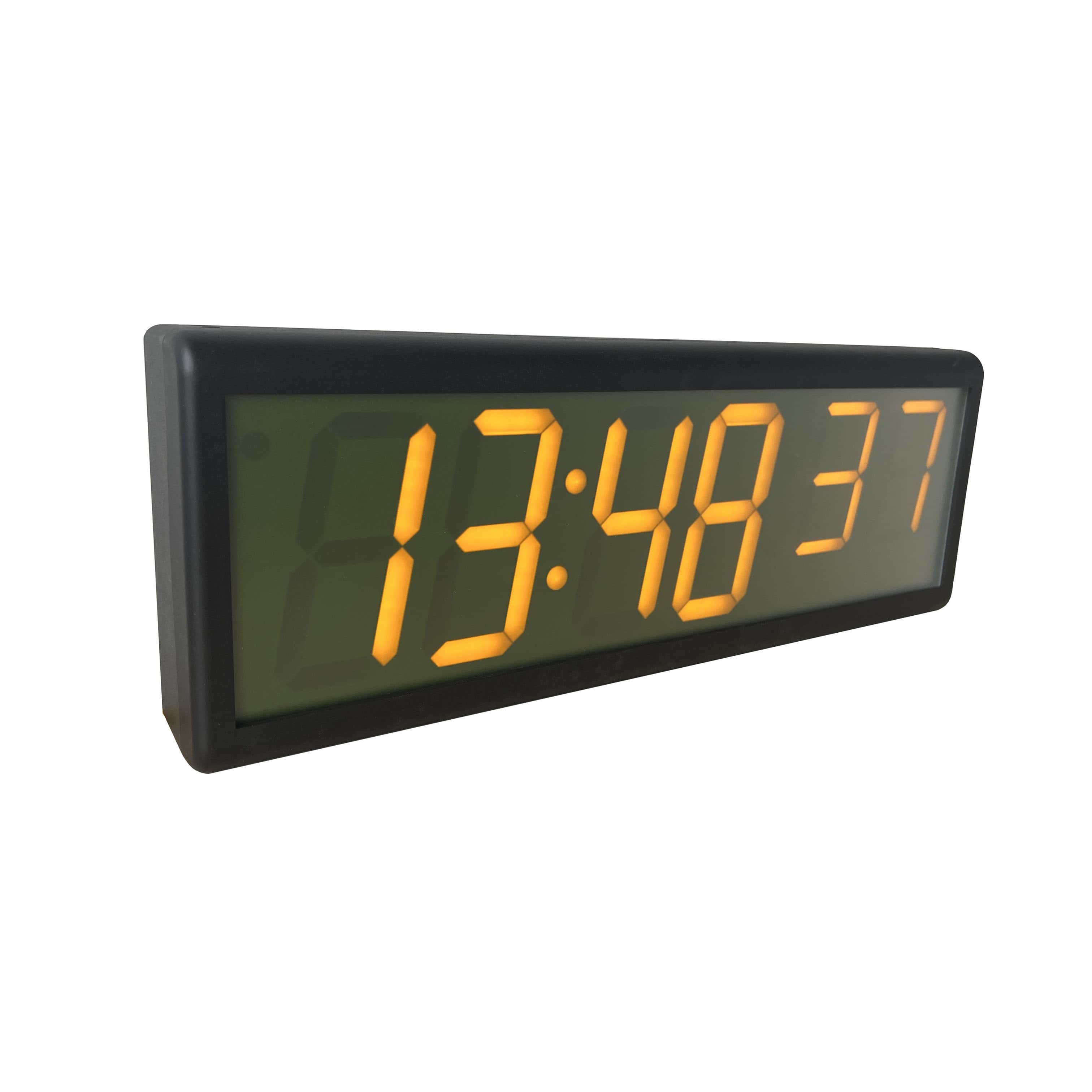

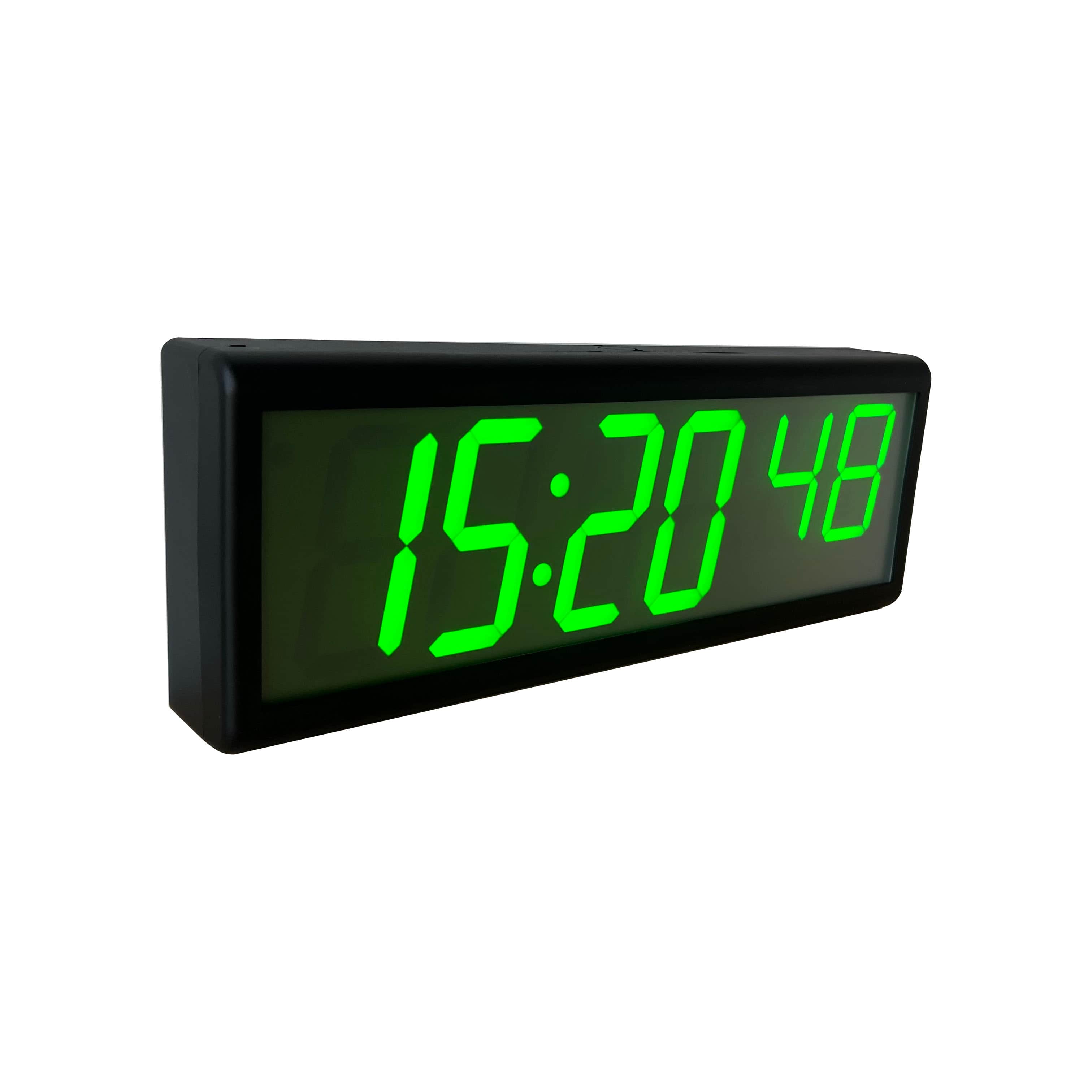

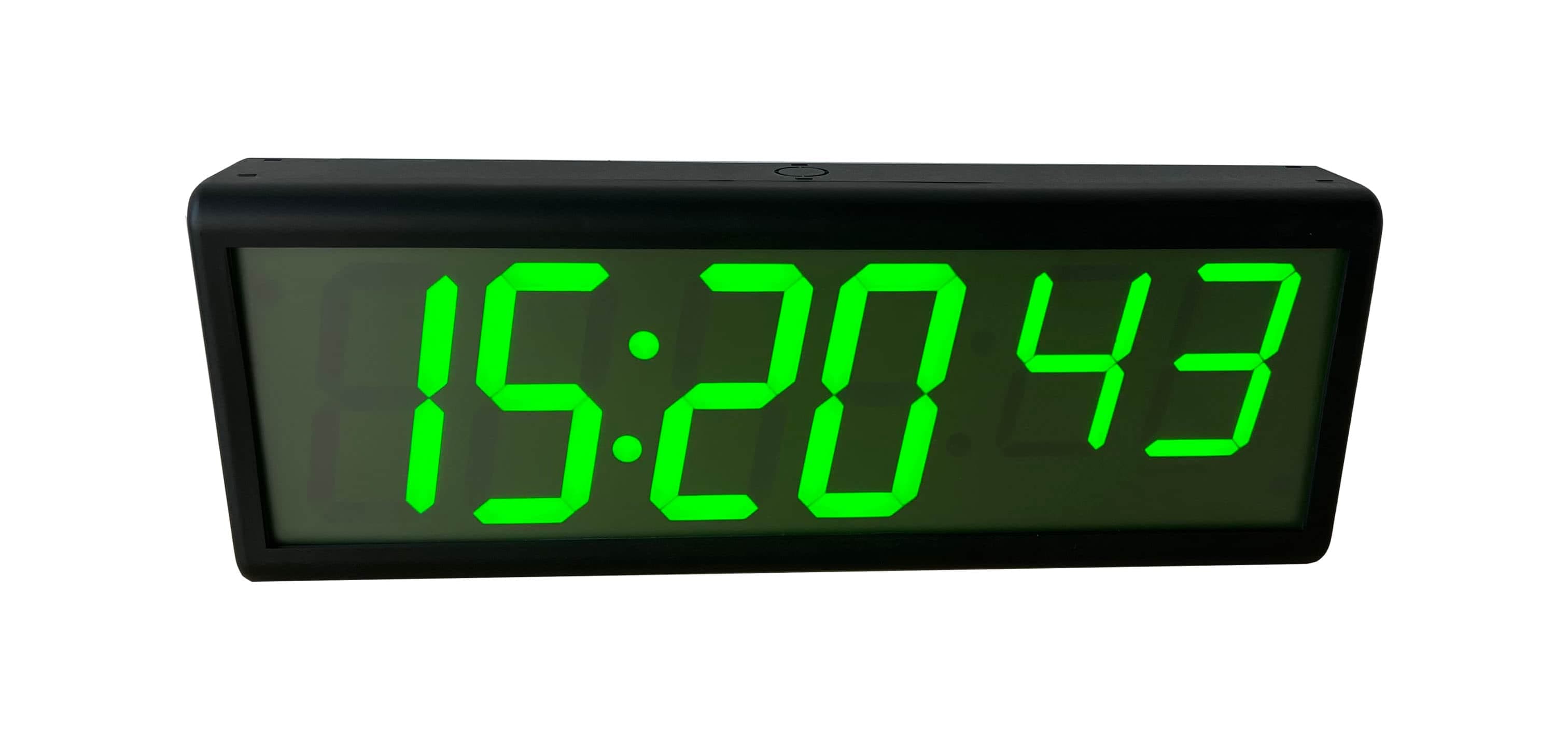

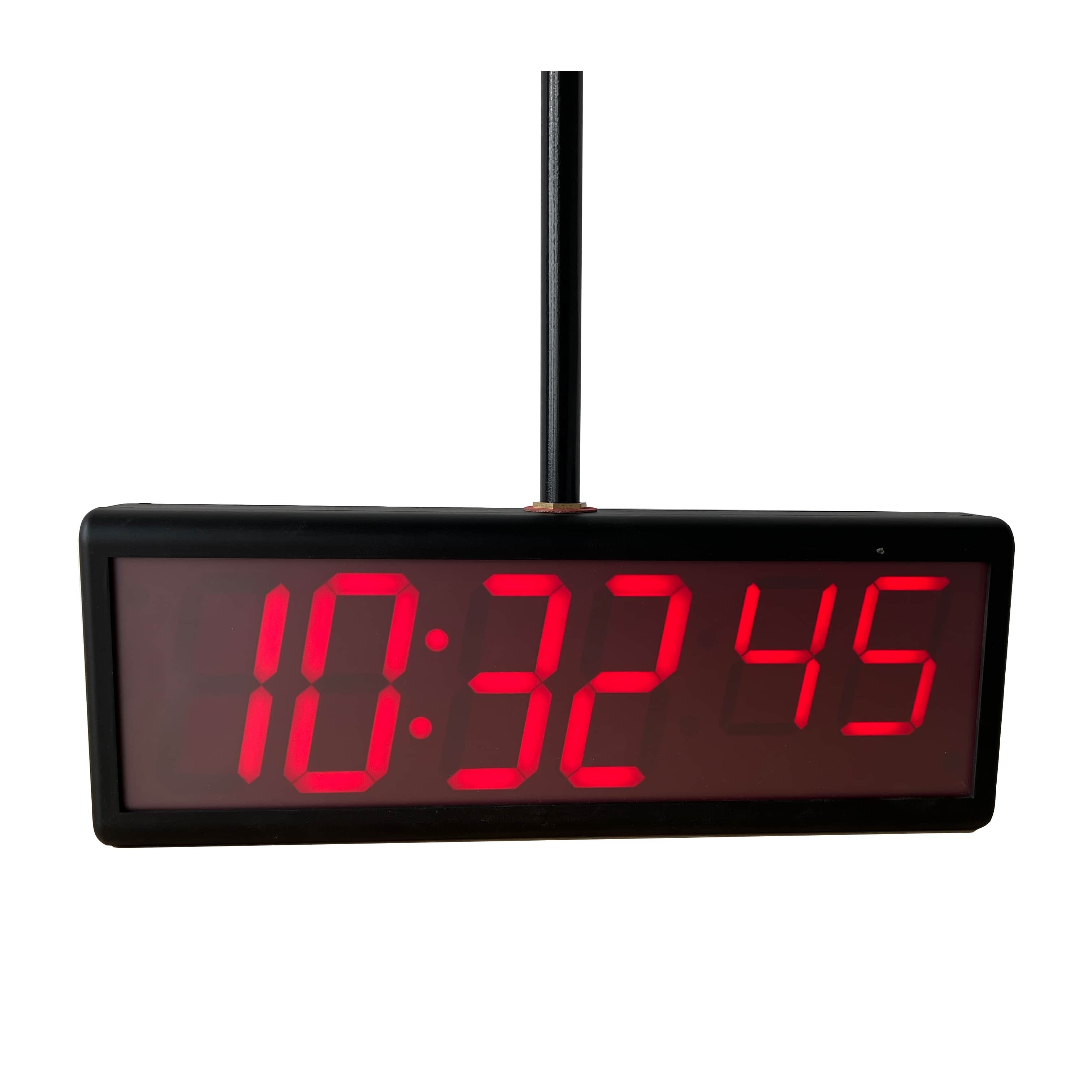

4" 6-digit Double-sided WiFi Network Wall Clock 4"HH, 4"MM, 3”ss

4" 6-digit Double-sided WiFi Network Wall Clock 4"HH, 4"MM, 3”ss

The 4 Inches 6-digit Double-sided WiFi Network Wall Clock displays hours, minutes and seconds in a clear format. Powered by a single PoE cable, this WiFi NTP Wall Clock can be seamlessly integrated into your space. It's flexible to set DHCP or a static IP, 12-hour or 24-hour. The automatic daylight saving time adjustment adds convenience to your timekeeping.

Item No :
SW201
Order(MOQ) :
10pcs
OEM/ODM :
Yes
Color :
Red, Green, Yellow
Lead Time :
1 week
Weight :
1.5kg

Inquire Now

4" 6-digit Double-sided WiFi Network Wall Clock 4"HH, 4"MM, 3”ss

The WiFi LED Clock Description

This double-sided 4-inch WiFi digital clock displays hours, minutes, and seconds, featuring high-visibility 4-inch digits for time and 3-inch digits for the second count. Available in red, green, or yellow LED options, the unit connects to your network via WiFi to eliminate the need for Ethernet cabling. It receives automatic time synchronization directly from NTP servers, removing the requirement for a master clock system.

The WiFi Digital Clock Features

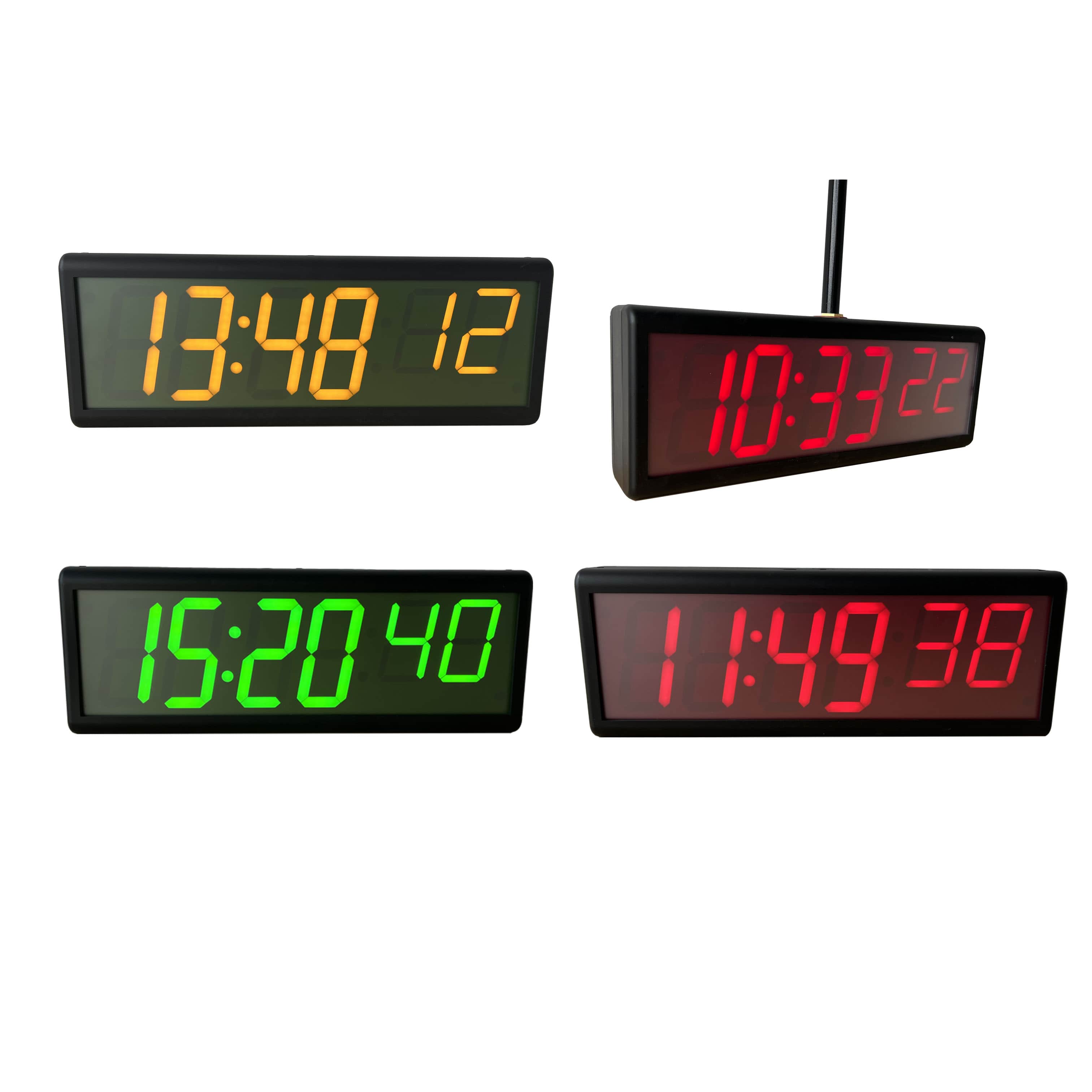

✔ LED Versatility: Choice of red, green, or yellow display colors to suit your environment.

✔ Reliable Sync: Supports up to 5 SNTP servers to ensure continuous redundancy.

✔ Flexible Networking: Compatible with both DHCP and Static IP addressing configurations.

✔ Display Modes: User-selectable 12-hour or 24-hour time formats.

✔ Smart Adjustments: Automated support for Daylight Saving Time transitions.

✔ High Precision: Maintains exceptional accuracy within ±40 milliseconds.

✔ Customizable Brightness: Features adjustable brightness settings for optimal visibility.

Technical Specification

Network
Protocol Supported	NTP, HTTP
NTP Protocol Modes	C/S mode
RTransport Protocol	TCP/IP
IP Addressing	Static IP address or DHCP
WiFi Frequency	2.4GHz
Supports	IEEE 802.11 b/g/n
Encryption	WEP/ WPA-PSK/ WPA2-PSK
Receiving sensitivity	802.11b:-86d8m(11Mbps); 802.11g:-71d8m(54Mbps)
Power Supply
Power Input	12V DC for red/amber/yellow clock, 18V DC for green clock
General
Operating Temperature	-10℃ to 60℃
Operating Humidity	90% maximum, non-condensing
Digit Size	4 inches
Viewing Distance	150 feet (50 meters)
Accuracy	approximately ±40 milliseconds

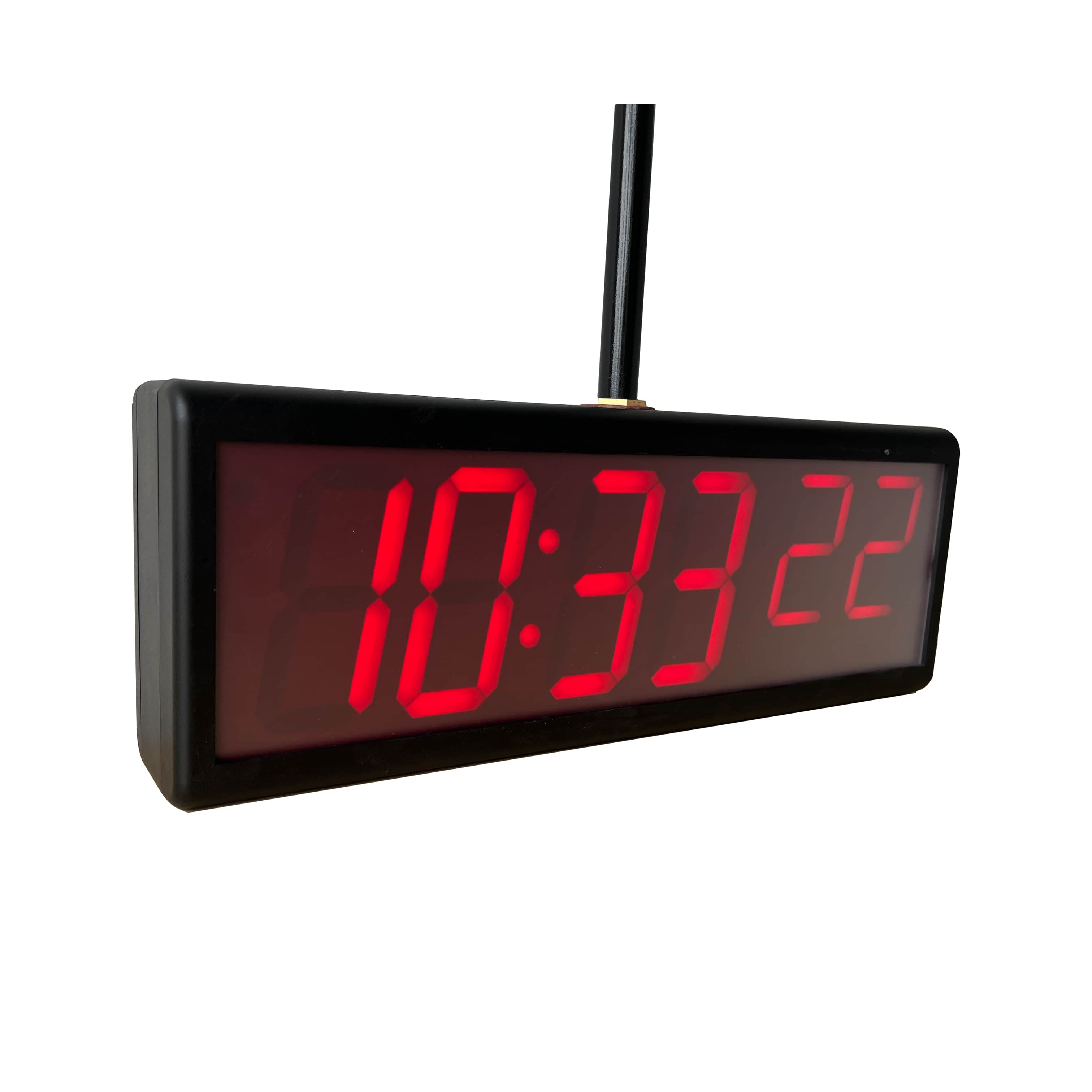

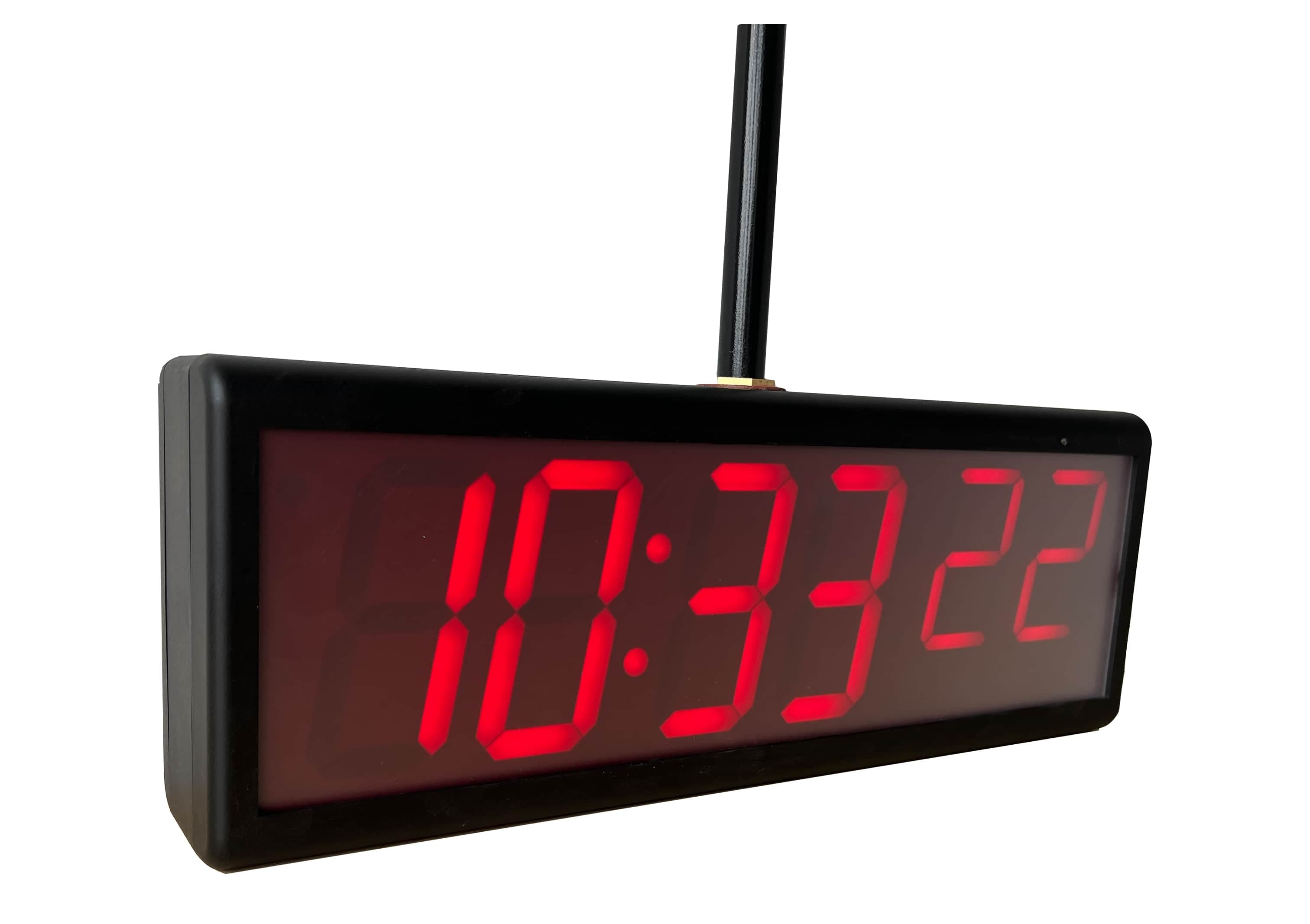

Mounting Option	Pendant, Cantilever, Wall, Surface
Time Format	12 or 24 hour display
Material	Metal
Color	Black
LED Color	Red, Green, Yellow optional
Dimension	43cm15.7cm8cm
Weight	1.5KG
OEM/ODM	Yes
Warranty	1 year
Compliance
Certificate	CE, FCC, RoHS

Application Scenario

Education
Time management is crucial for both K-12 and higher education, which is why all schools require the implementation of a reliable synchronized time system.
Transportation
Transportation industry is unique because it provides punctual and reliable service instead of physical goods, making accurate timekeeping its most essential and core offering.
Healthcare
Efficient time management is a vital skill for doctors and nurses, allowing medical staff to effectively prioritize and address the diverse needs of their patients
Hotel

Synchronized time ensures that guests and staff see the same time, which helps improve overall service quality and streamlines key operations such as the checkout.
Manufacturing
To ensure that the correct volume of products is shipped, planning and allocating the appropriate amount of production time is an absolutely essential business process.
