The NTP Wall WiFi Analog Clock, boasting a 15-inch diameter, seamlessly connects via WiFi, ensuring accurate timekeeping in any time zones. Powered by batteries for convenience and mobility, this clock supports DHCP for easy network configuration and adjusts automatically for daylight saving time. With a silent sweeping second hand and a round 15 inches aluminium design, it combines classic elegance with modern technology to enhance any spaces.
Item No :
SW501Order(MOQ) :
10pcsOEM/ODM :
YesColor :
ColorLead Time :
1 weekWeight :
1.1kg
Product categories15" Large Silver Auminum Round NTP Wall WiFi Analog Clock, WiFi Enabled Clock

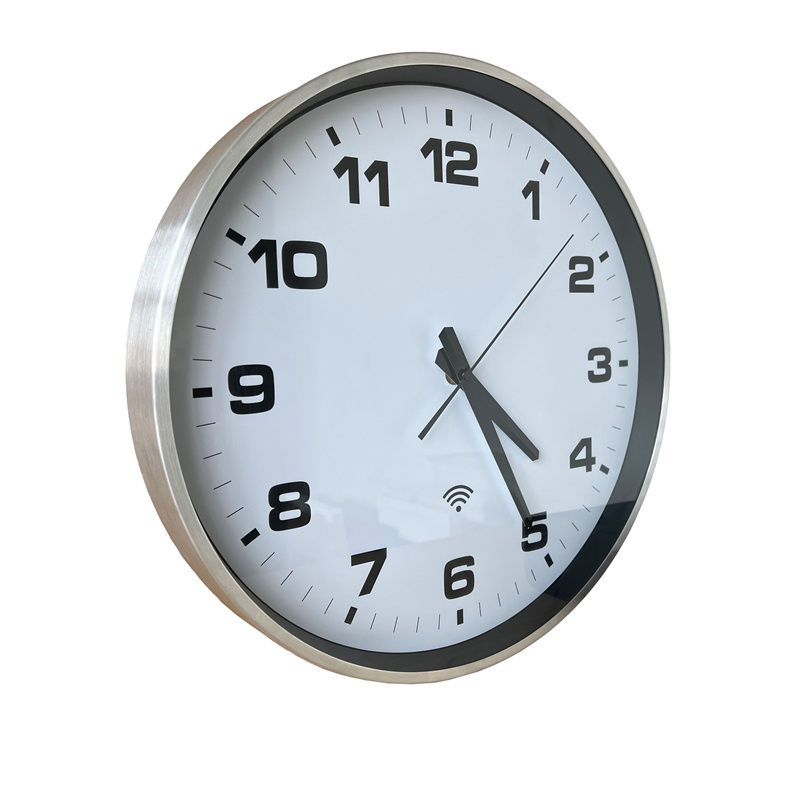

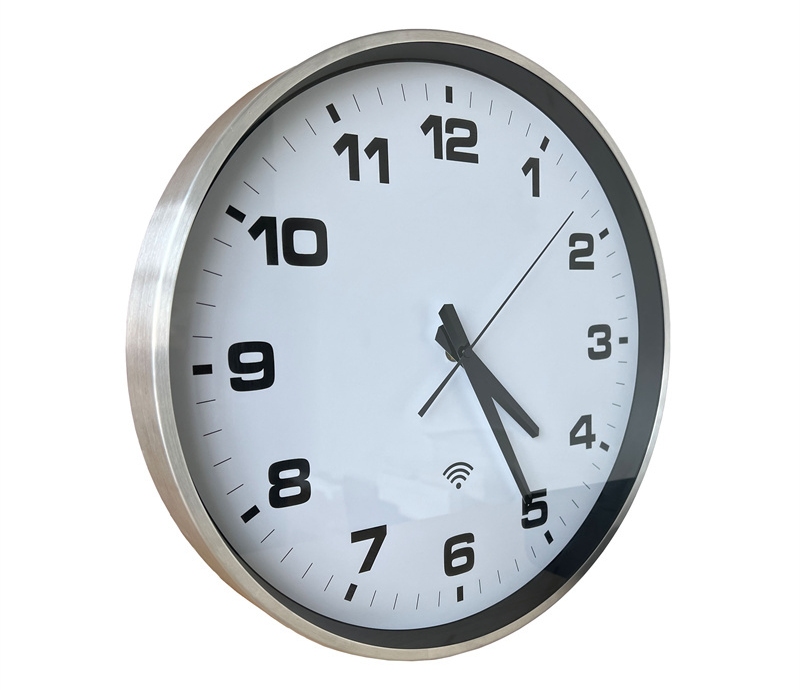

The WiFi Analog Clock Description
The 15" WiFi analog clock SW501 is a premium auminum clock engineered for environments where accuracy and longevity are non-negotiable, supporting NTP Synchronized. It's operated via WiFi, receiving automatic synchronization of time via NTP server, no need of master clock. It's powered via 2pcs 1.5V batteries. The NTP analog clock supports automatic time adjustment and Daylight Saving Time. The synchronized time can be applied in various facilities, including school, transportation, healthcare, miltary base, hotel, government, etc.
The WiFi Analog Clock Features
✔ No cable required
✔ 50000 hours MTBF
✔ Reduce maintenance cost
✔ DHCP addressing.
✔ Supports daylight saving time
✔ Accuracy ±1 second
✔ Software free of charge
Technical Specification
| 15" Large Silver Auminum Round NTP Wall WiFi Analog Clock, WiFi Enabled Clock | |
| Network | |
| Protocol Supported | NTP, HTTP, FTP |
| NTP Protocol Modes | C/S mode |
| Transport Protocol | TCP/IP |
| IP Addressing | Static IP address or DHCP |
| Device management | Web |
| WiFi Frequency | 2.4GHz |
| Supports | IEEE 802.11 b/g/n |
| Encryption | WEP/ WPA-PSK/ WPA2-PSK |
| Receiving sensitivity | 802.11b:-86d8m(11Mbps); 802.11g:-71d8m(54Mbps) |
| Power Supply | |
| Power Input | Alkaline batteries 2 x 1.5V size LR6 |
| Average life of battery | 12 months |
| General | |
| Operating Temperature | -10℃ to 70℃ |
| Operating Humidity | 90% maximum, non-condensing |
| Accuracy | Approximately ±1 second |
| Mounting Option | Wall, Surface |
| Material | Aluminium |
| Color | Silver |
| Dimension | 38cm*35cm*5.1cm |
| Weight | 1.1KG |
| OEM/ODM | Yes |
| Warranty | 1 year |
| Compliance | |
| Certificate | CE, FCC, RoHS |
Application Scenario
FAQS
Q1: Does the clock require a dedicated master clock for synchronization?
A: No. Our WiFi analog clocks are designed as autonomous network devices. They synchronize automatically with local or public NTP/SNTP servers via your existing wireless infrastructure, eliminating the cost and complexity of a traditional master clock system.
Q2: How is the WiFi analog clock powered, and does it require wiring?

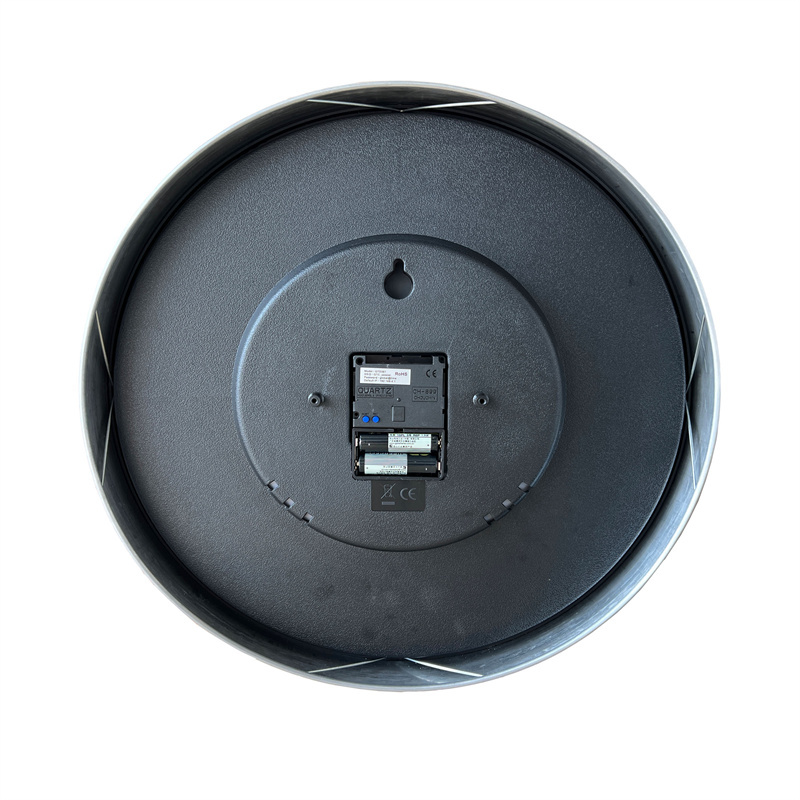

A: The SW501 WiFi analog clock offers a true wireless solution, powered by 2pcs 1.5V Alkaline batteries (Size LR6). This allows for maximum flexibility in placement without the need for electrical outlets or network cabling.
Q3: What is the default network configuration for IP addressing?
A: The factory default setting is DHCP, allowing the clock to automatically acquire an IP address from your network for a seamless "plug-and-play" installation. Static IP configuration is also supported via the management interface.
Q4: How can I manage and configure the clock settings?
A: Each clock features a built-in Web Interface. This allows administrators to conveniently manage settings, such as time zone offsets and DST adjustments, directly through a standard web browser.
Q5: What are the available mounting and installation options?
A: For versatile integration into any architectural environment, the clock supports both surface and wall mounting options.

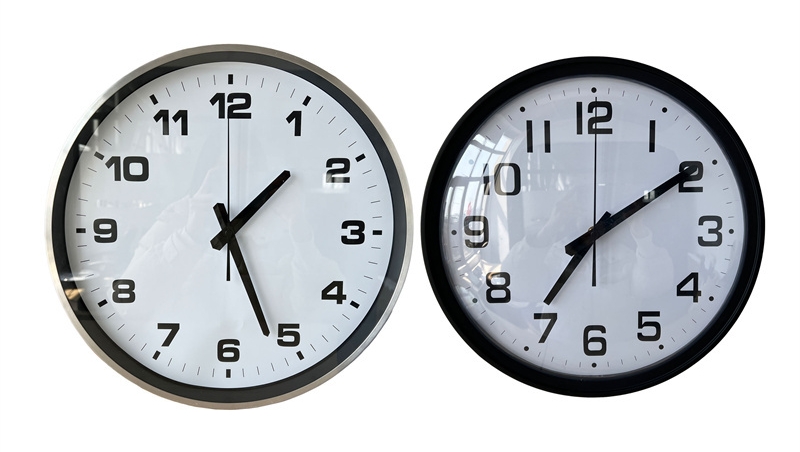

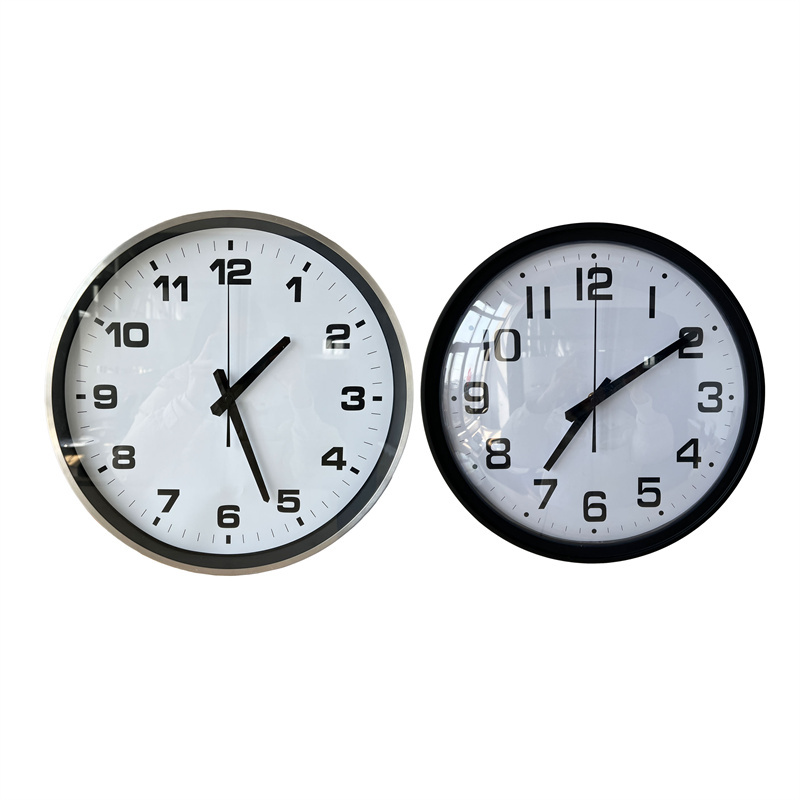

Q6: What models and material options are available for the WiFi analog wall clock?
A: We offer two professional configurations to suit different aesthetic and functional needs:
13.7-inch clock: Features a durable, sleek black plastic housing.
15-inch clock: Features a premium silver aluminium frame for industrial or high-end corporate settings.
