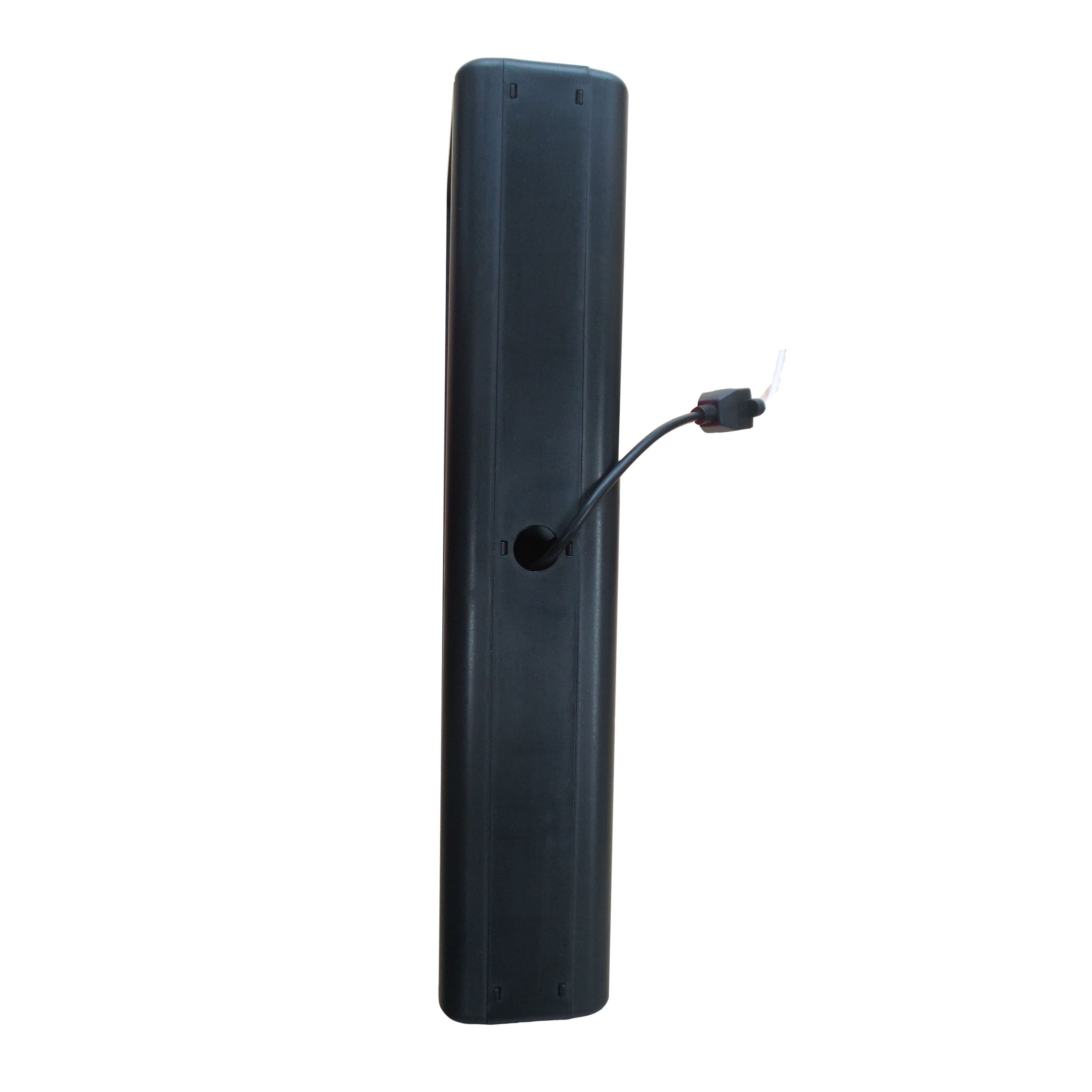

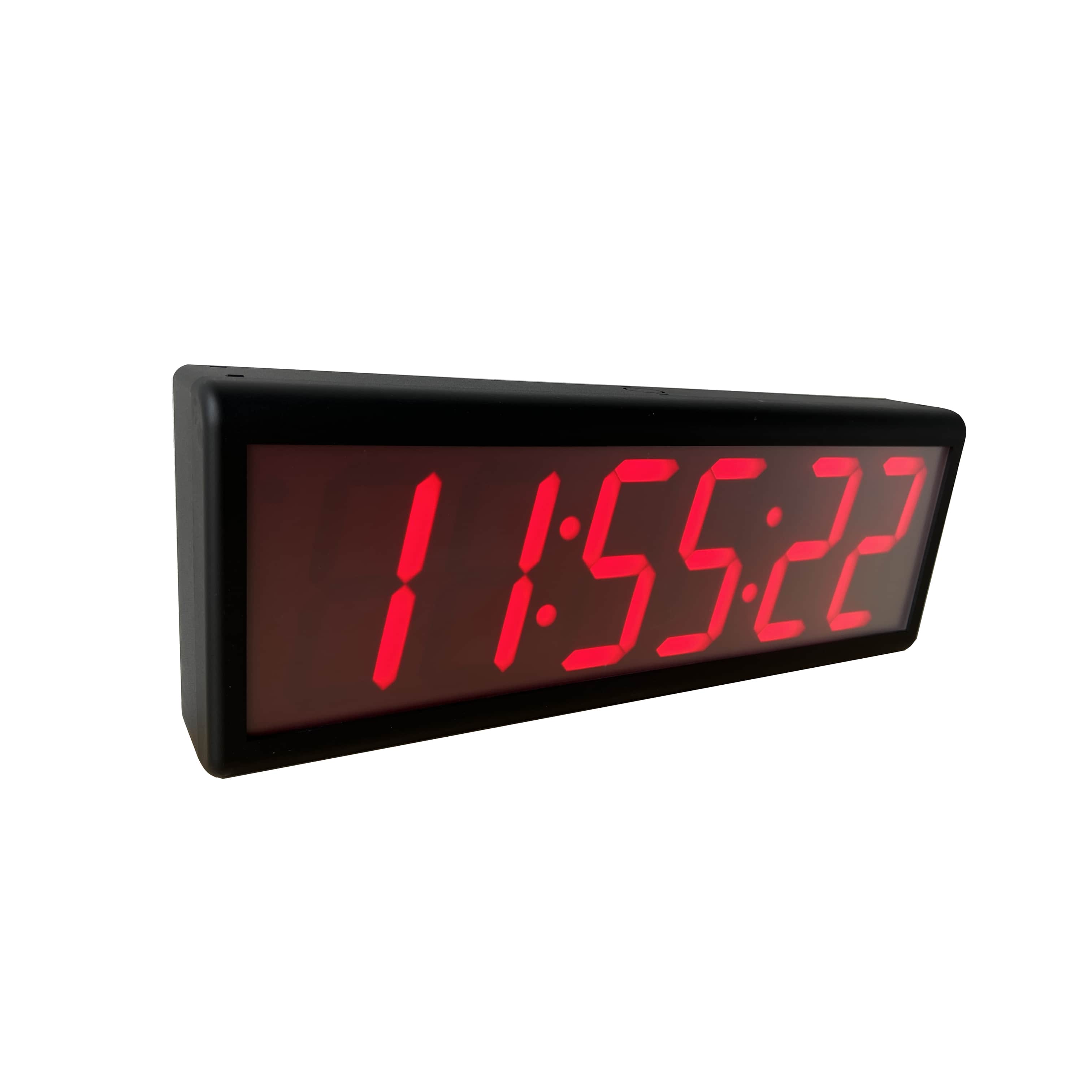

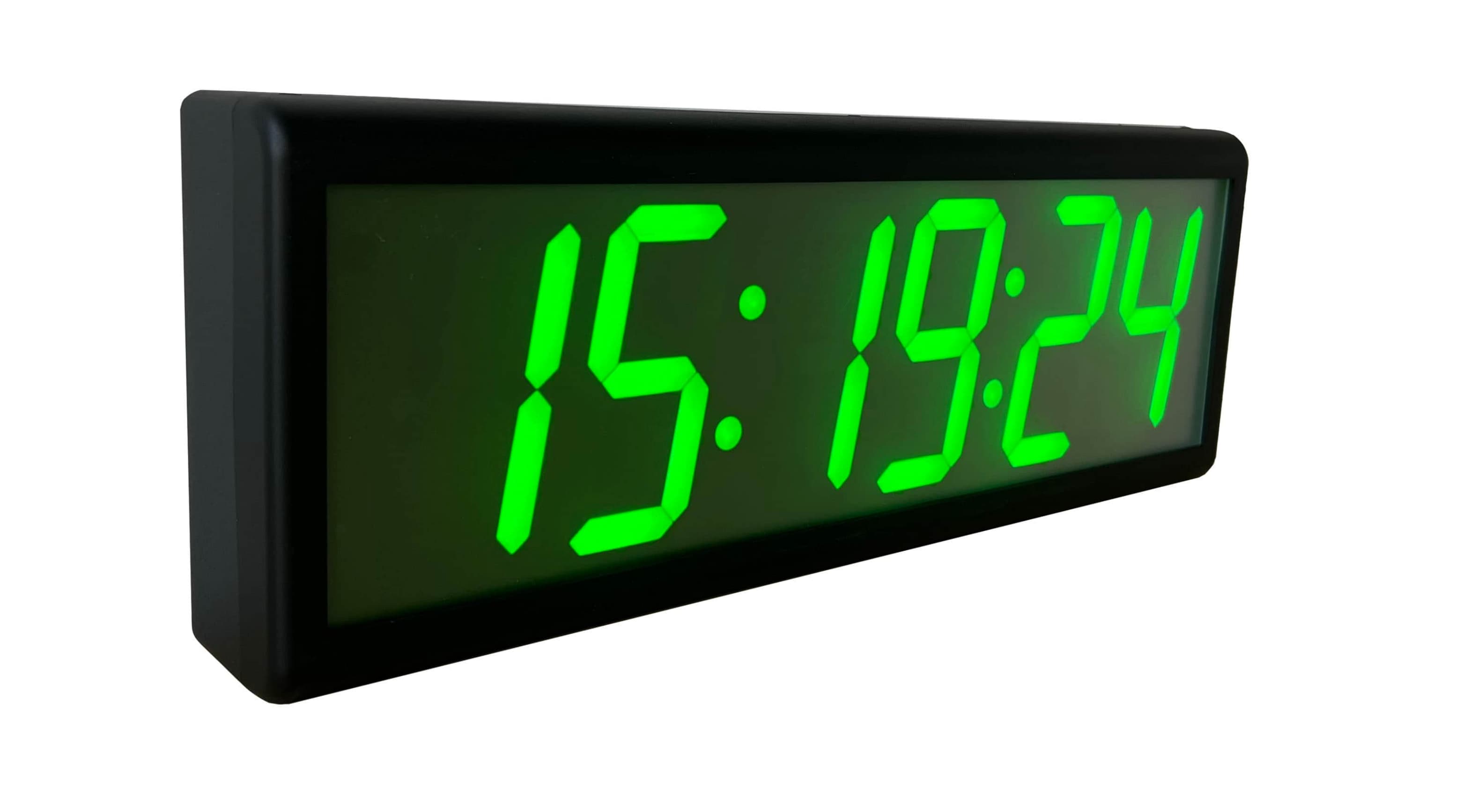

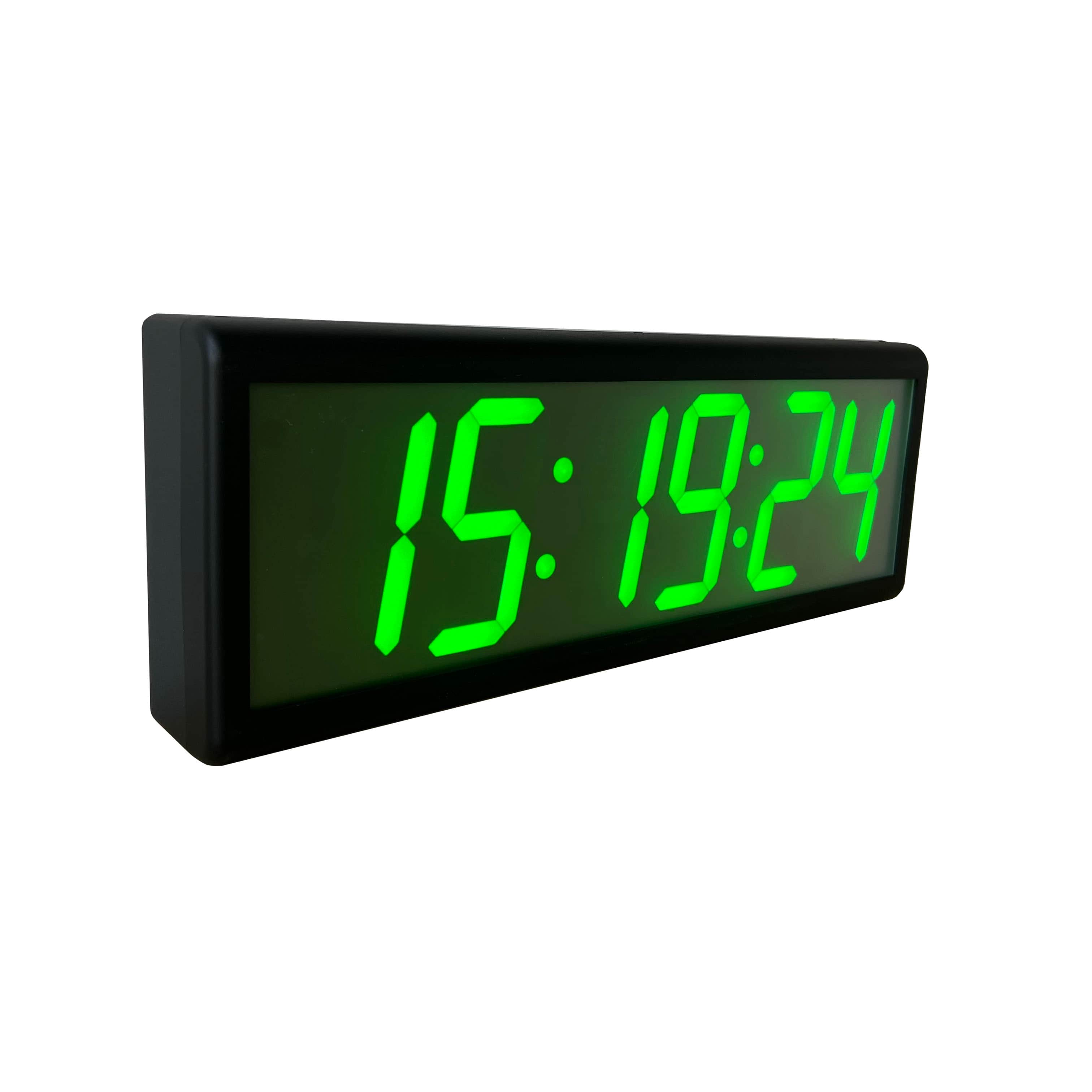

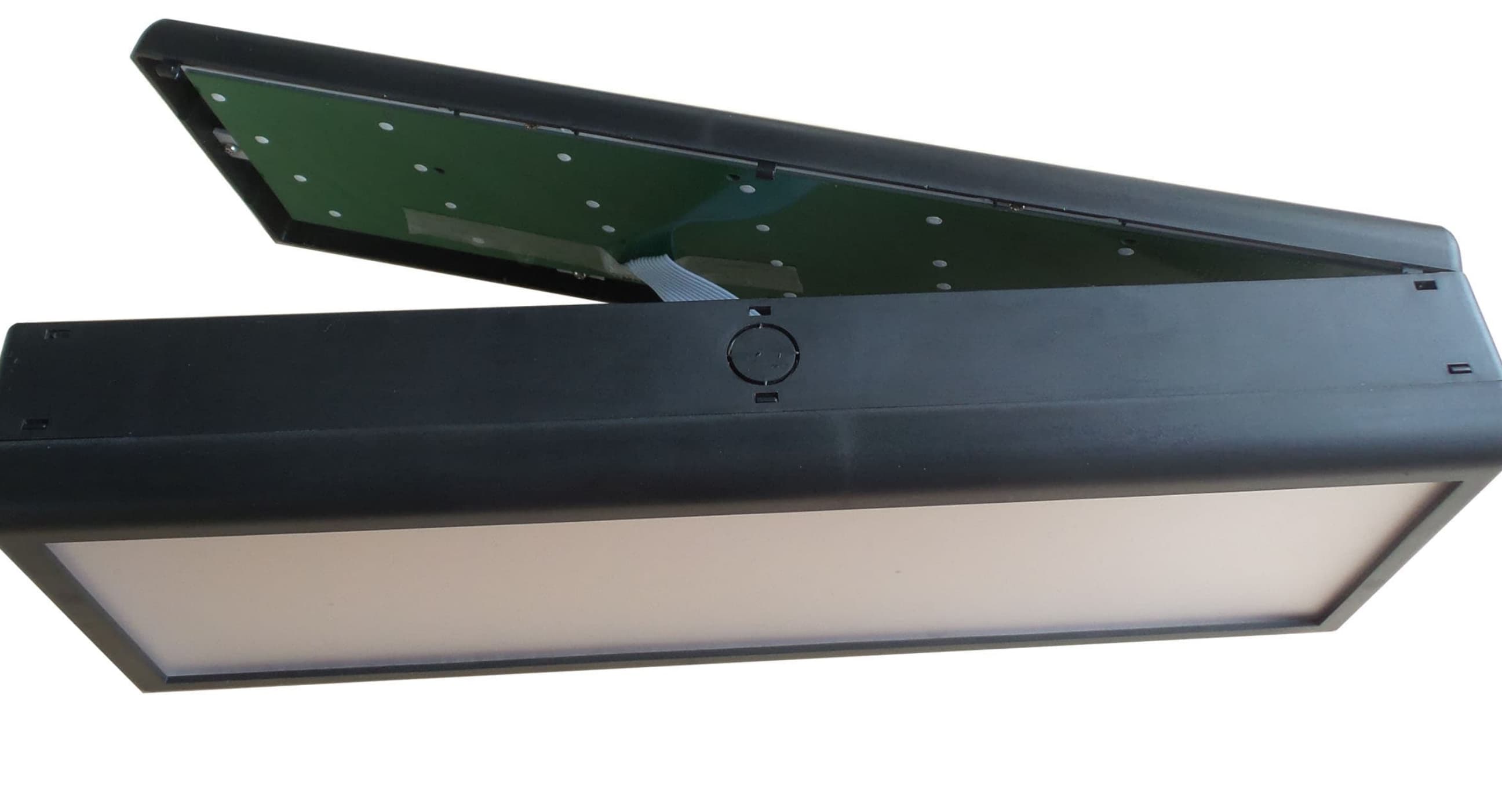

The Double-sided WiFi LED Wall Clock displays the time in hours, minutes, and seconds (HH/MM/SS) on both faces, ensuring visibility from all angles. With options of red or green LED, IP setting of DHCP or stastic IP, 12 or 24 hours mode, it suits your preferences. Featuring daylight saving time, it effortlessly synchronize with precise time.Embrace the future of timekeeping with our WiFi Enabled Wall Clock, the perfect fusion of elegance and innovation.
Item No :
SW301Order(MOQ) :
10pcsOEM/ODM :
YesColor :
Red, GreenLead Time :
1 weekWeight :
1.5kg

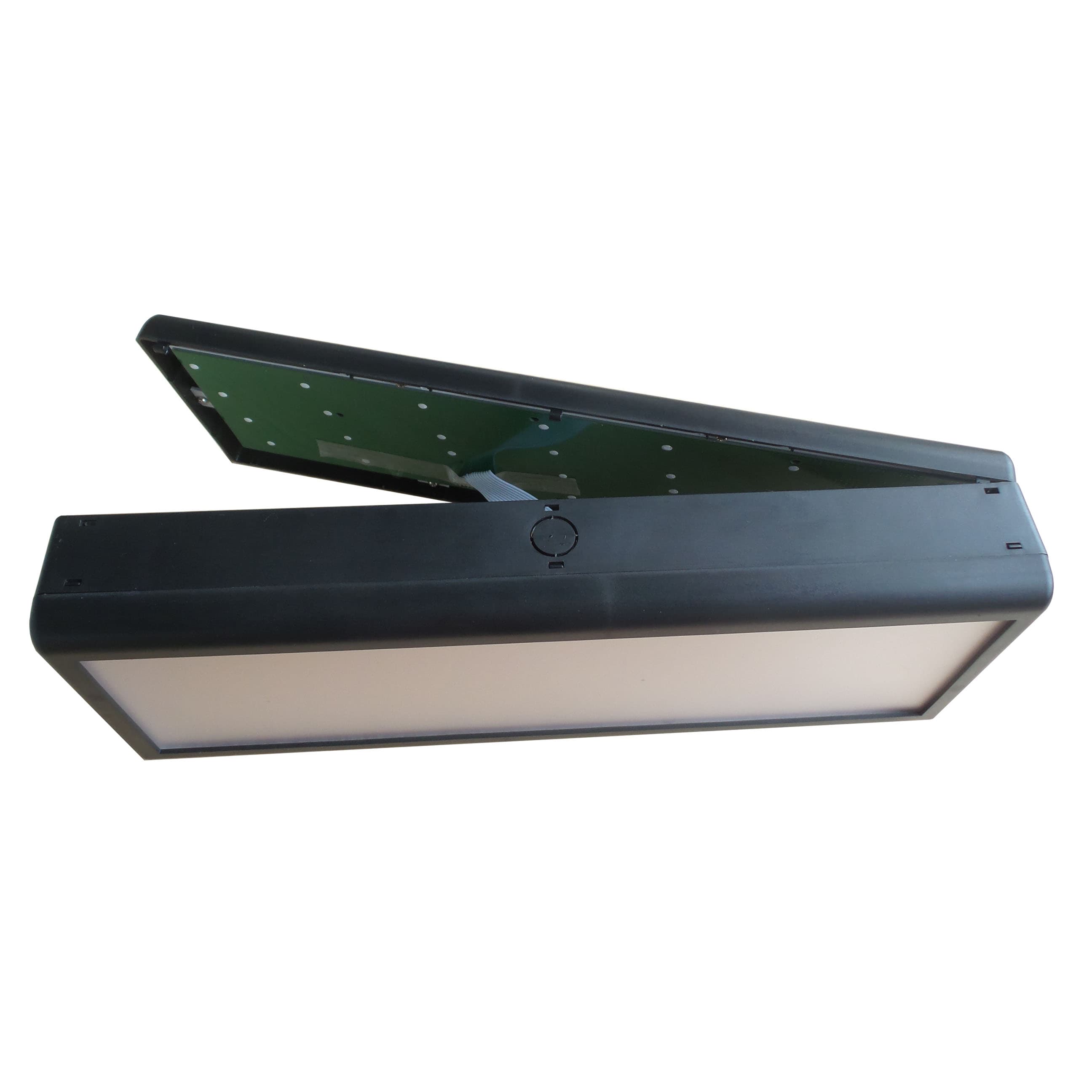

Product categories4" 6-digit Double-sided WiFi LED Wall Clock, WiFi Enabled Wall Clock HH, MM, SS
The WiFi Digital Clock Description

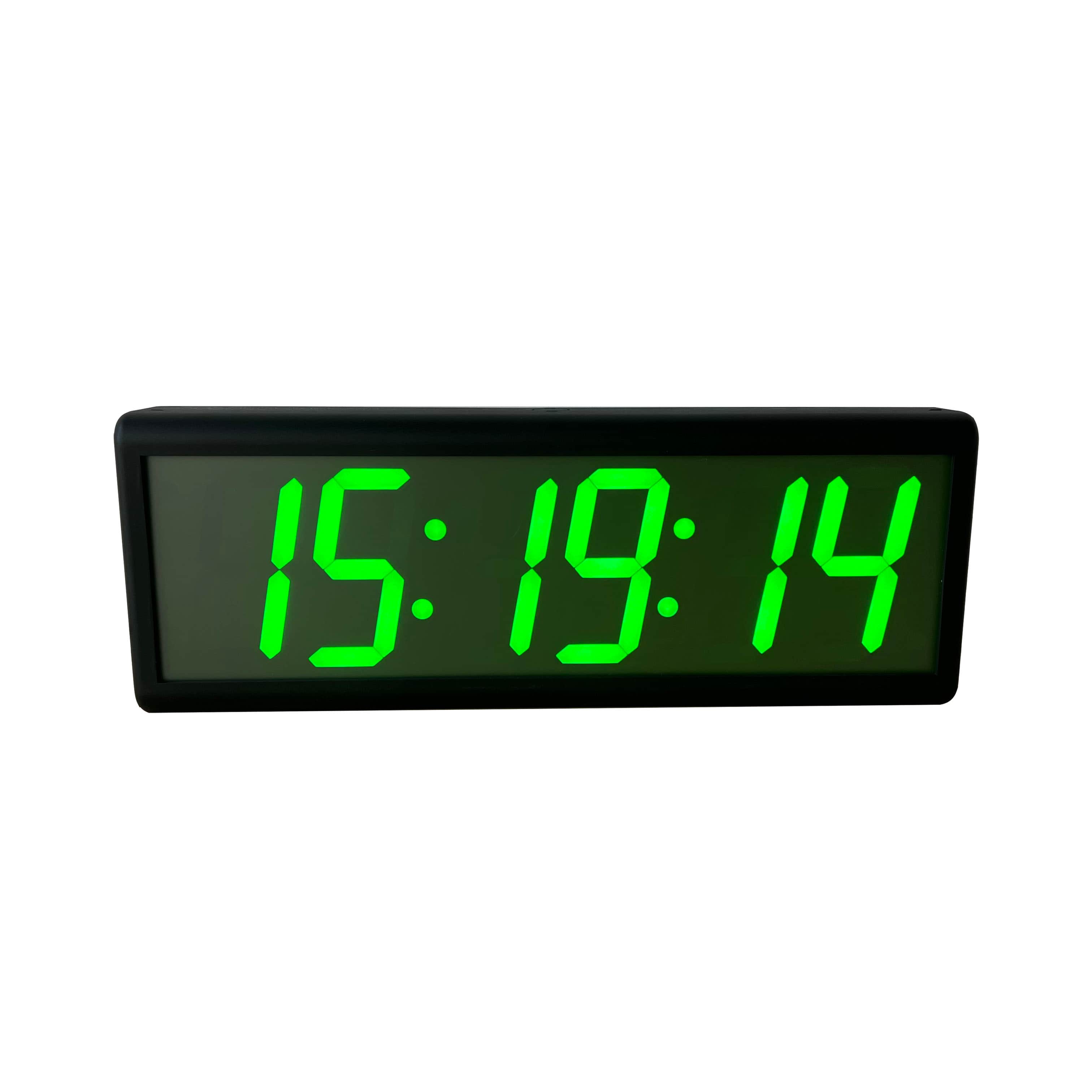

The NTP WiFi Clock Description This double-sided digital clock features 4-inch digits and provides a high-visibility display of hours, minutes, and seconds. By utilizing a WiFi network connection, the system eliminates the need for Ethernet cabling while receiving automated time updates from NTP servers without a master clock. Supporting both 12/24-hour formats and Daylight Saving Time, this synchronized solution is ideal for schools, healthcare facilities, manufacturing plants, and government buildings.
The WiFi Digital Clock Features

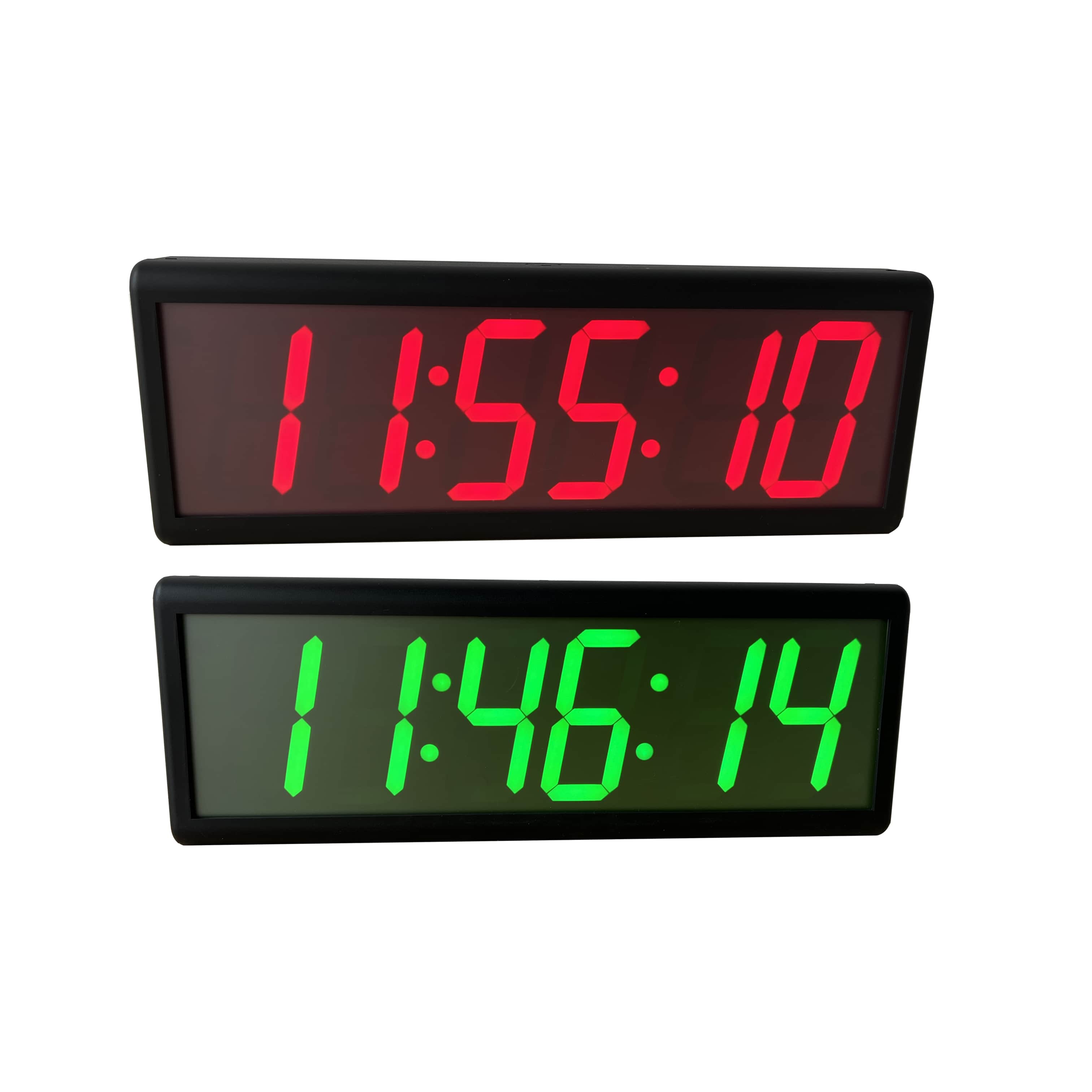

✔ Dual Color Options: Available in red or green LED displays.
✔ Server Redundancy: Supports up to five SNTP servers to ensure continuous synchronization.
✔ Network Versatility: Compatible with both DHCP and Static IP addressing.
✔ Smart Timekeeping: Includes selectable 12/24-hour modes and automatic DST adjustments.
✔ Customized Control: Features adjustable brightness, real-time countdowns, and free management software.
✔ Expandable Functionality: Optional bell relay or temperature and humidity sensors are available.
✔ Requires a 5.5mm x 2.1mm plug adapter (purchasable separately or through us).
Technical Specification
| Network | |
| Protocol Supported | NTP, HTTP |
| NTP Protocol Modes | C/S mode |
| Transport Protocol | TCP/IP |
| IP Addressing | Static IP address or DHCP |
| Device management | web or Free software |
| WiFi Frequency | 2.4GHz |
| Supports | IEEE 802.11 b/g/n |
| Encryption | WEP/ WPA-PSK/ WPA2-PSK |
| Receiving sensitivity | 802.11b:-86d8m(11Mbps); 802.11g:-71d8m(54Mbps) |
| General | |
| Operating Temperature | -10℃ to 60℃ |
| Operating Humidity | 90% maximum, non-condensing |
| Digit Size | 4 inches |
| Viewing Distance | 150 feet (50 meters) |
| Accuracy | approximately ±40 milliseconds |
| Mounting Option | Pendant, Cantilever, Wall, Surface |
| Time Format | 12 or 24 hour display |
| Material | METAL |
| Color | Black |
| LED Color | Red, Green optional |
| Dimension | 43cm*15.7cm*5.7cm |
| Weight | 0.9KG |
| OEM/ODM | Yes |
| Warranty | 1 year |
| Compliance | |
| Certificate | CE, FCC, RoHS |
Application Scenario
FAQS
Q: Does the clock require NTP Server?
A: Yes,it will need a private or publick server to ensure uniform time source.
Q: How is the WiFI digital clock powered?
A: It's powered through a 5.5mm x 2.1mm plug DC adapter, 12V DC for red/amber/yellow clock, 18V DC for green clock.
Q: What information can the clock display?
A: It displays hours and minutes.
Q: Does the clock support 12/24-hour formats and Daylight Saving Time?
A: Yes. Both 12/24-hour modes and DST adjustment are supported.
Q: What network settings are available?
A: The clock supports DHCP or Static IP and can connect to up to 5 SNTP servers for redundancy.
Q: What extra function is optional?
A: The belling, temperature or humidity display is optional in hardware.Q: Does the clock require a master clock to keep accurate time?
