The GPS NTP Time Server is designed for complex multi-network environments. Equipped with four independent LAN ports, it supports synchronization across four separate network segments, making it ideal for physically isolated networks. As a Stratum 1 time source, it obtains high-precision timing from GPS and BeiDou satellites, ensuring absolute synchronization with UTC.
Item No :
NTP400Order(MOQ) :
1pcsOEM/ODM :
YesColor :
BlackLead Time :
1 weekWeight :
11kg
Product categoriesOver 20000 times per second Timing capacity NTP Time Server with 4 LAN Ports

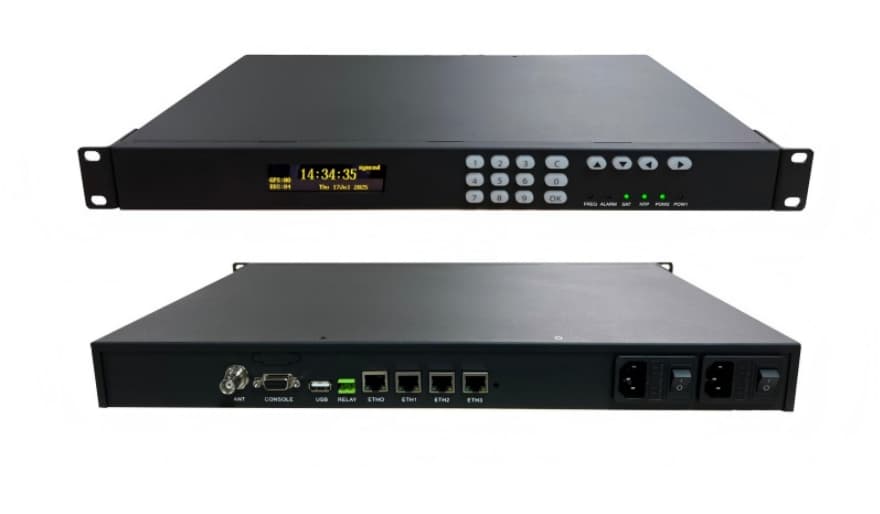

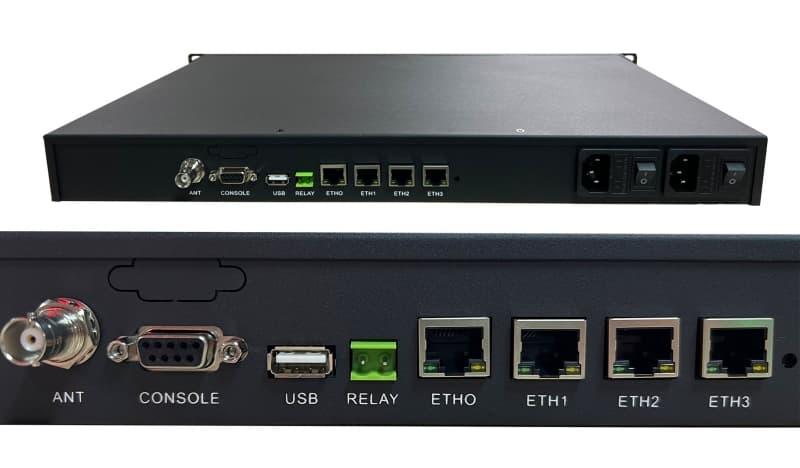

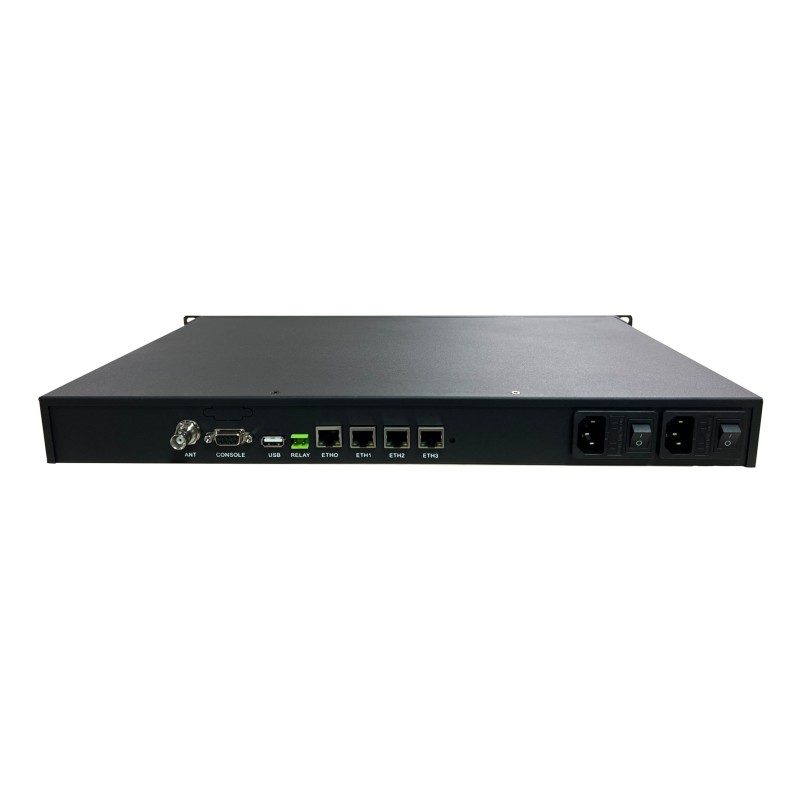

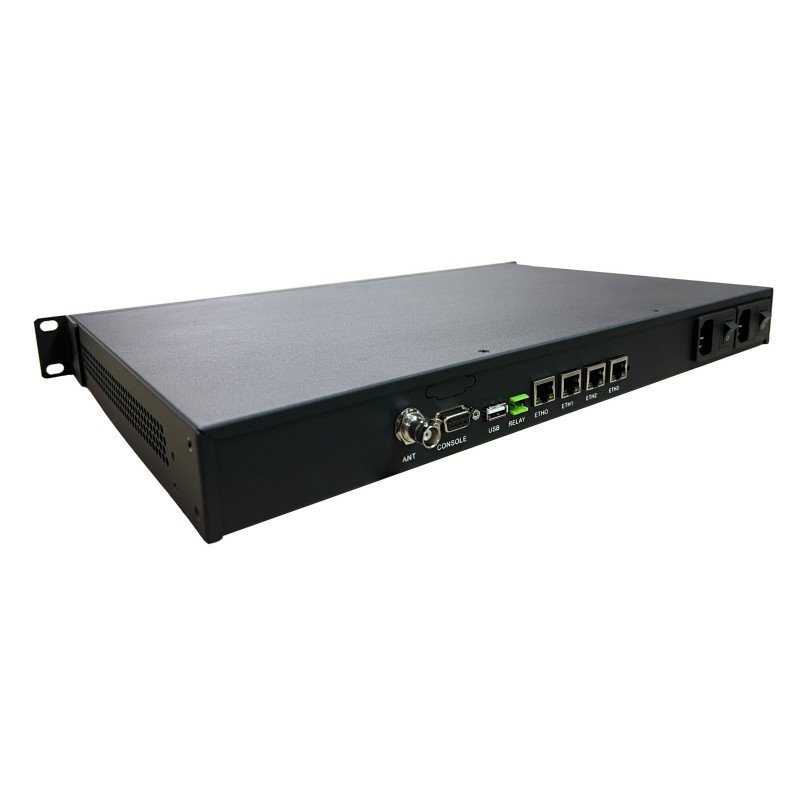

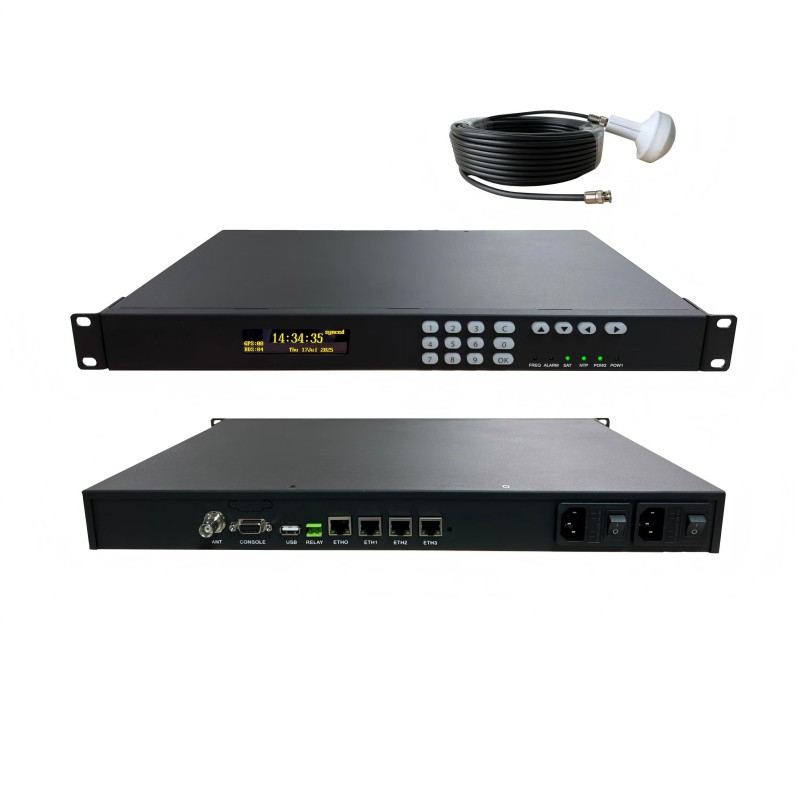

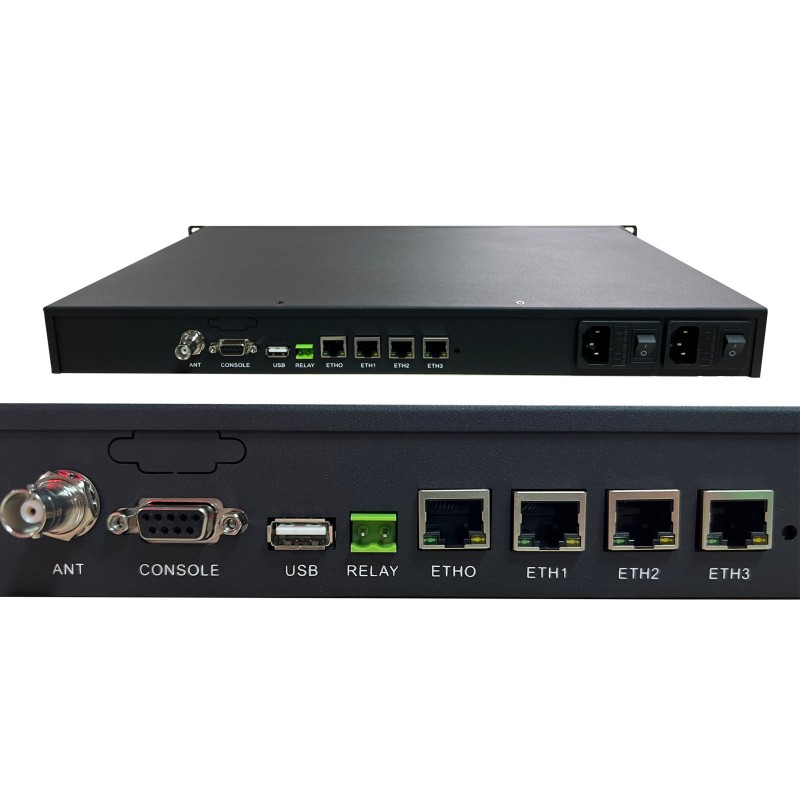

The GPS Time Server Description
The GPS Time Server NTP400 leverages advanced multi-constellation satellite signals (GPS & BDS) to provide an ultra-reliable time reference. By synchronizing with Coordinated Universal Time (UTC), it achieves a frequency stability comparable to cesium atomic clocks, ensuring an incredible accuracy that deviates by only one second every 300,000 years. This high-precision source eliminates local clock drift, providing your network with a rock-solid temporal foundation. Equipped with a professional-grade timing receiver, it guarantees rapid signal acquisition and a stable, continuous lock.
The GPS Time Server Features
✔ Secure & Flexible Management: Intuitive Web-based UI with a high-security cipher suite (HTTP/HTTPS), plus CLI and physical keyboard support for rapid deployment.
✔ Ultimate UTC Precision: Delivers exceptional time accuracy synchronized directly with global satellite standards.
✔ Universal Protocol Support: Fully compliant with NTP (RFC1119/1305) and SNTP (RFC1769/2030) for seamless integration.
✔ Robust Network Security: Features SNMP management, syslog logging, and built-in iptables firewall protection.
✔ Reliable & Traceable: Includes trace logs and a secondary development interface; boasting an MTBF of 90,000 hours for long-term industrial stability.
Technical Specification
| Applications | |
| • Synchronizes hundreds of thousands of NTP clients. | |
| • Security-hardened for peace-of-mind time service operations. | |
| • Multiple GbE NTP ports for easy network configuration and adaptation. | |
| • Best-in-class time accuracy for improved log file timestamp precision and usability. | |
| • Very reliable and easy-to-use network time appliance for modern networks and business | |
| Operations | |
| Network Protocols | |
| RFC 1119 1305 NTP v2/v3/v4 | |
| RFC 1769 2030 SNTPv2/v3/ v4 | |
| SNMPv1/v2 | |
| SSH | |
| HTTP/HTTPS | |
| SFTP | |
| Mechanical/Environmental | |
| • Size: 44cm x 28.6cm x 4.4cm,1U rack mount, including BNCs. | |
| • Power: 10W, 110-230V AC, 50Hz-60Hz, dual power supplies (with dual-corded connectors and load sharing) | |
| • Operating temperature:-10℃~65℃ | |
| • Storage temperature:-40℃~85℃ | |
| Performance | |
| GPS/BEIDOU receiver | |
| 64 channel GPS receiver | |
| Supports GPS/BEIDOU frequency band | |
| Cold-start time: 50 seconds | |
| Hot-start time: 2 seconds | |
| Sensitivity:-162dBm | |
| 1PPS accuracy: 15ns (1 sigma) | |
| *depends on the location of the antenna | |
| Server Time Level: Stratum 1 | |
| Server time precision: 1ms | |
| Precision of client time: 10ms | |
| Timing capacity: >20000 times per second | |
| Oscillator Aging ( yearly) | |
| OCXO: 1E-7 | |
| Rb: 1E-9 | |
| RAM: 256M | |
| ROM: 256M | |
| MTBF:90000 Hours | |
| General | |
| Weight: 110KG | |
| Size: 55X41X35 cm | |
| Material: Metal |
Application Scenario
FAQS
Q: Does the IP clock system require NTP Server?
A: Yes, the NTP server is a must in IP clock system.
Q: What's the options of the NTP server?
A: SeedlingNet network time protocol server has three options, including NTP100 (1 LAN port), NTP200 (2 LAN ports), NTP400 (4 LAN ports).
Q: What's the MTBF of the clock NTP server?
A: More than 90000hours.
Q: What's the satellite signal does the clock NTP server use?
A: It uses 2 types of satellite signals, GPS& BEIDOU ad defauted.
Q: How many NTP requests can the internet time server IP handle?
A: It can handle 20000 NTP requests per second, meantime it can ensure the accuracy associated
with reference time source.
Q: Does the GPS based NTP server supports trace log?
A: Yes, it supports trace log. With a second development interface.
IPv6 Network Supportedleave a message
