The PoE Digital Clock supports Calendar DD/MM/YY (UK format) or texts within 64 bites. As for grey color, it's made of stainless steel. It also has black and white optional with metal material. It can be powered via DC adapter optionally. It supports DHCP or static IP, 12/24 hour mode, daylight saving time.
Item No :
SP400-G-UKOrder(MOQ) :
10pcsOEM/ODM :
YesColor :
GreyLead Time :
1 weekWeight :
1.7kg

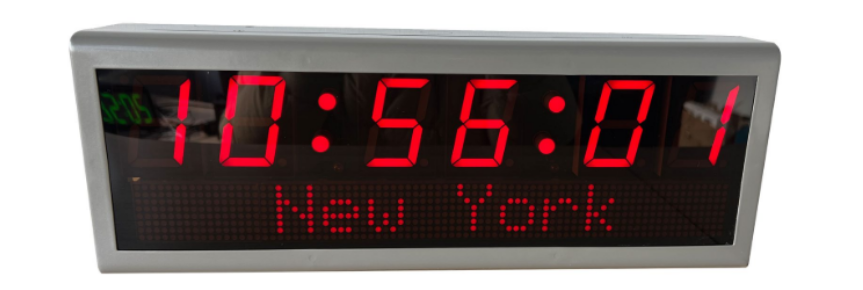

Product categories2.3" Grey Stainless Steel PoE Digital Clock with Calendar DD/MM/YY
The PoE Digital Clock Description

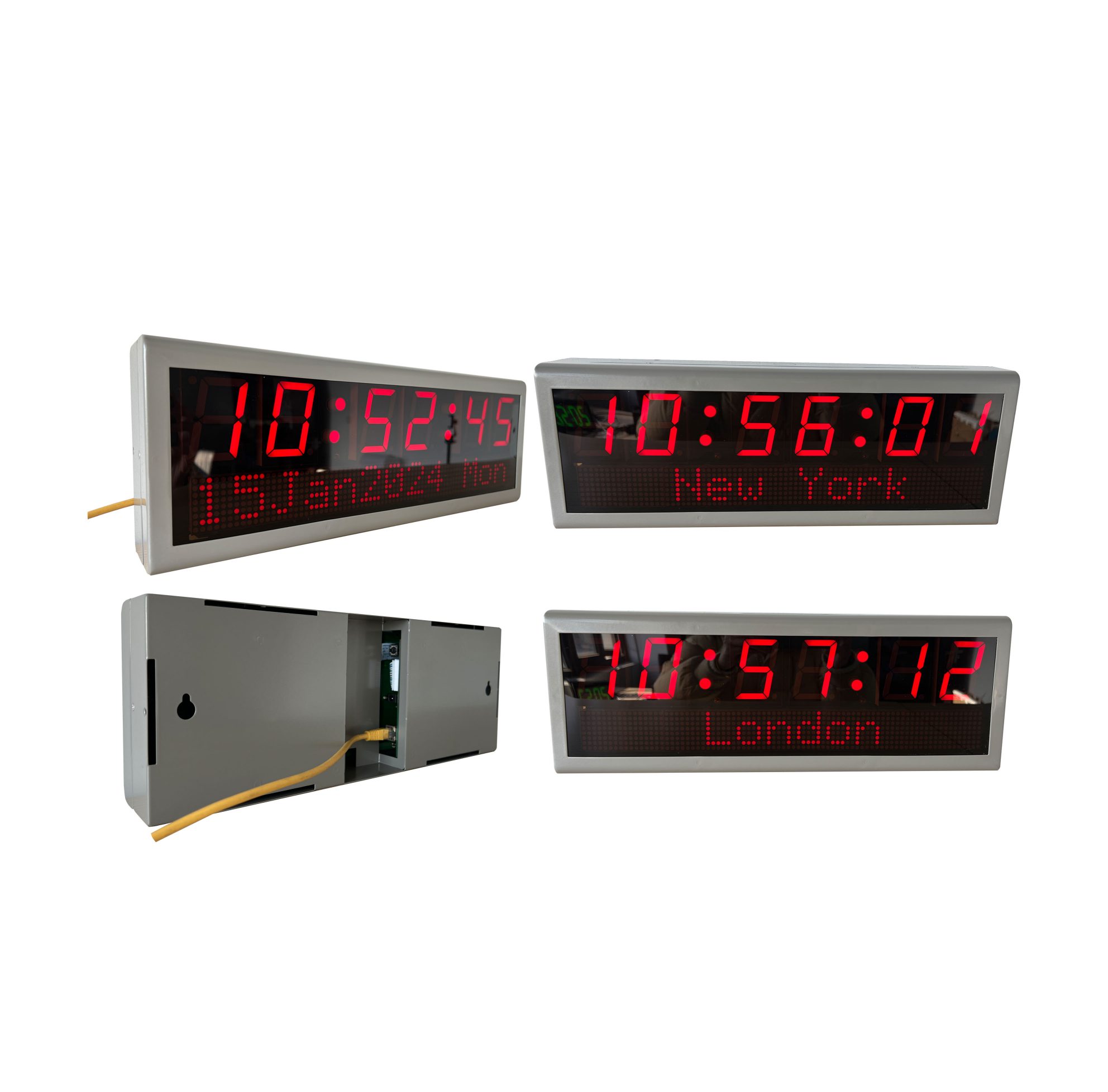

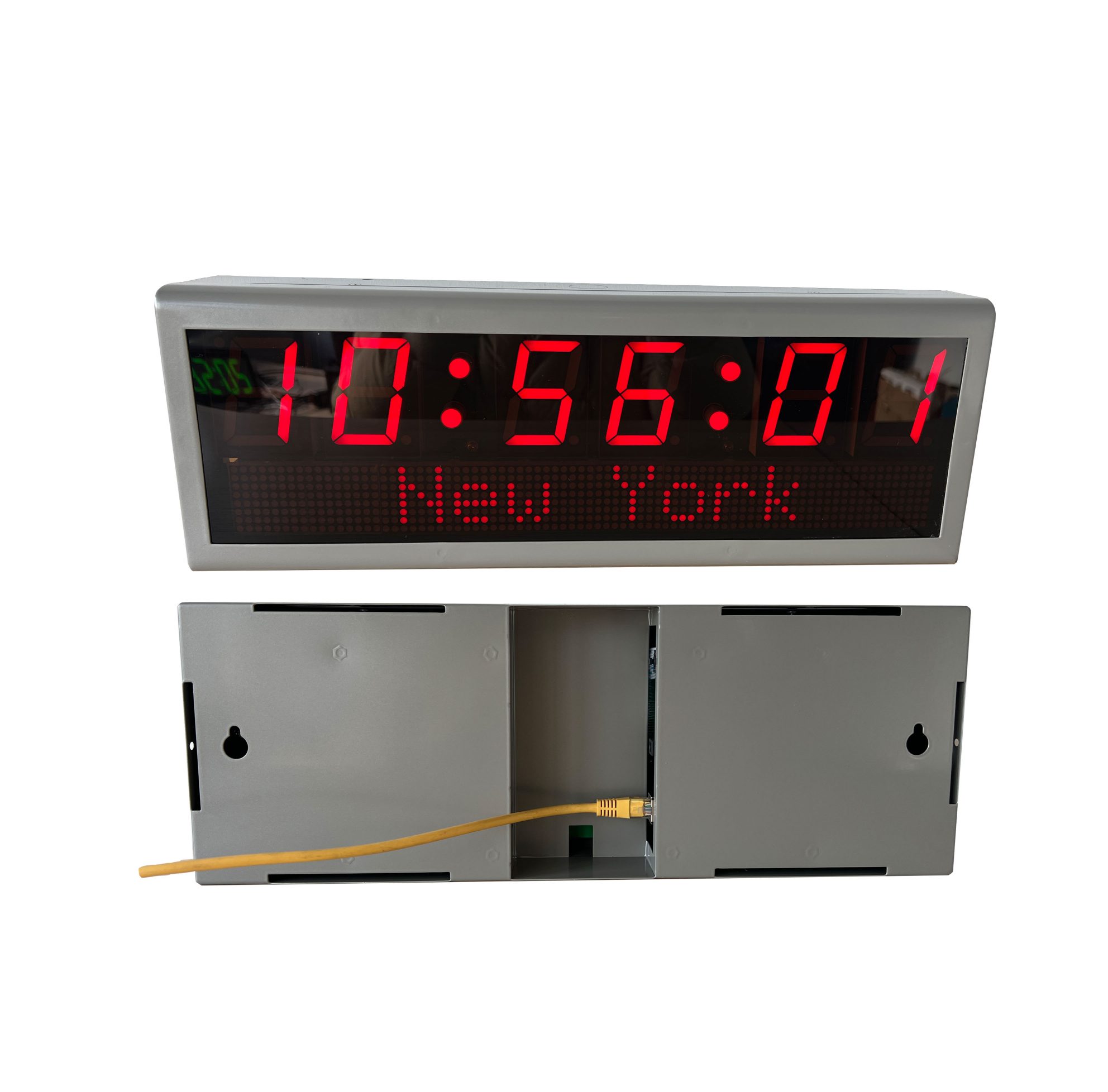

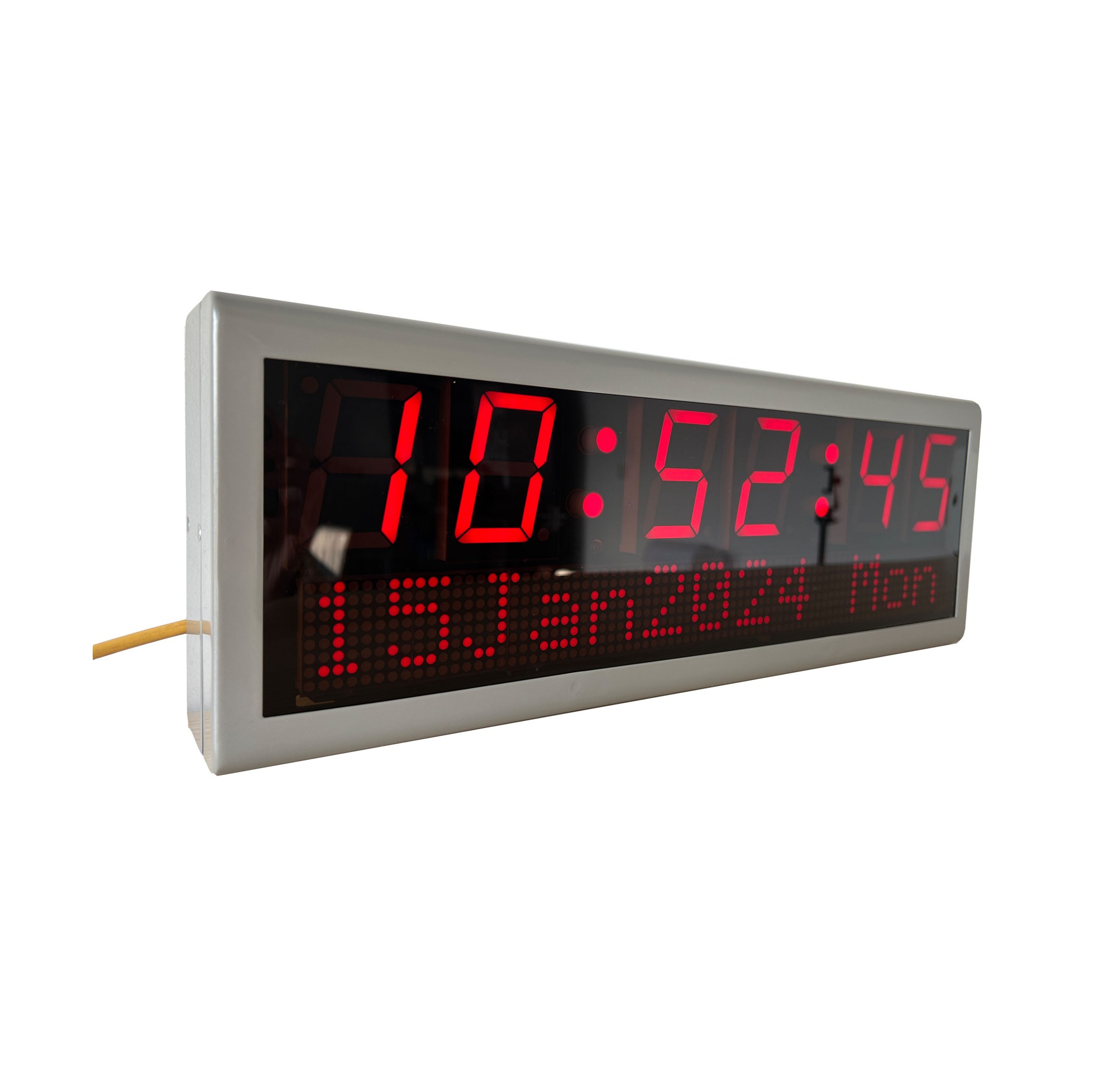

The 2.3" PoE digital clock can display the hour, minute, second and calendar. It has white, black, grey metal and grey stainless steel options. It's operated via Power over Ethernet (PoE), receiving automatic synchronization of time via NTP server, no need of master clock. The ntp Poe clock supports 12 or 24 hour format Daylight Saving Time. The synchronized time can be applied in various facilities, including schools, transportation, healthcare, miltary, government, etc.
The PoE Digital Clock Features
✔ With calendar or texts that within 64 bites.
✔ Supports up to 5 SNTP servers for redundancy.
✔ DHCP or Static IP addressing.
✔ 12/24 hour mode optional
✔ Supports daylight saving time
✔ Accuracy ±20 milliseconds
✔ Adjustable brightness settings
✔ Software free of charge
✔ Bell relay or Temperature/ Humidity Display optional
Technical Specification
| Network | |
| Ethernet | 10/100 Base-TX, RJ45 |
| Data Protocol | NTP, SNTP |
| Routing Protocol | IPv4 |
| Compatibility | EEE802.3af |
| IP Addressing | Static IP address or DHCP |
| Device management | Free software |
| Support DNS | Yes |
| Power Supply | |
| Power Input | PoE or 12V DC |
| General | |
| Operating Temperature | -10℃ to 60℃ |
| Operating Humidity | 90% maximum, non-condensing |
| Display | 2.3” digit (56mm character), 8*8 dot matrix(38mm high) |
| Viewing Distance | 50 feet (15 meters) |
| Accuracy | approximately ±20 milliseconds |
| Mounting Option | Pendant, Cantilever, Wall, Surface |
| Time Format | 12 or 24 hour display |
| Material | Stainless |
| Color | Grey (white and black optional) |
| LED Color | Red |

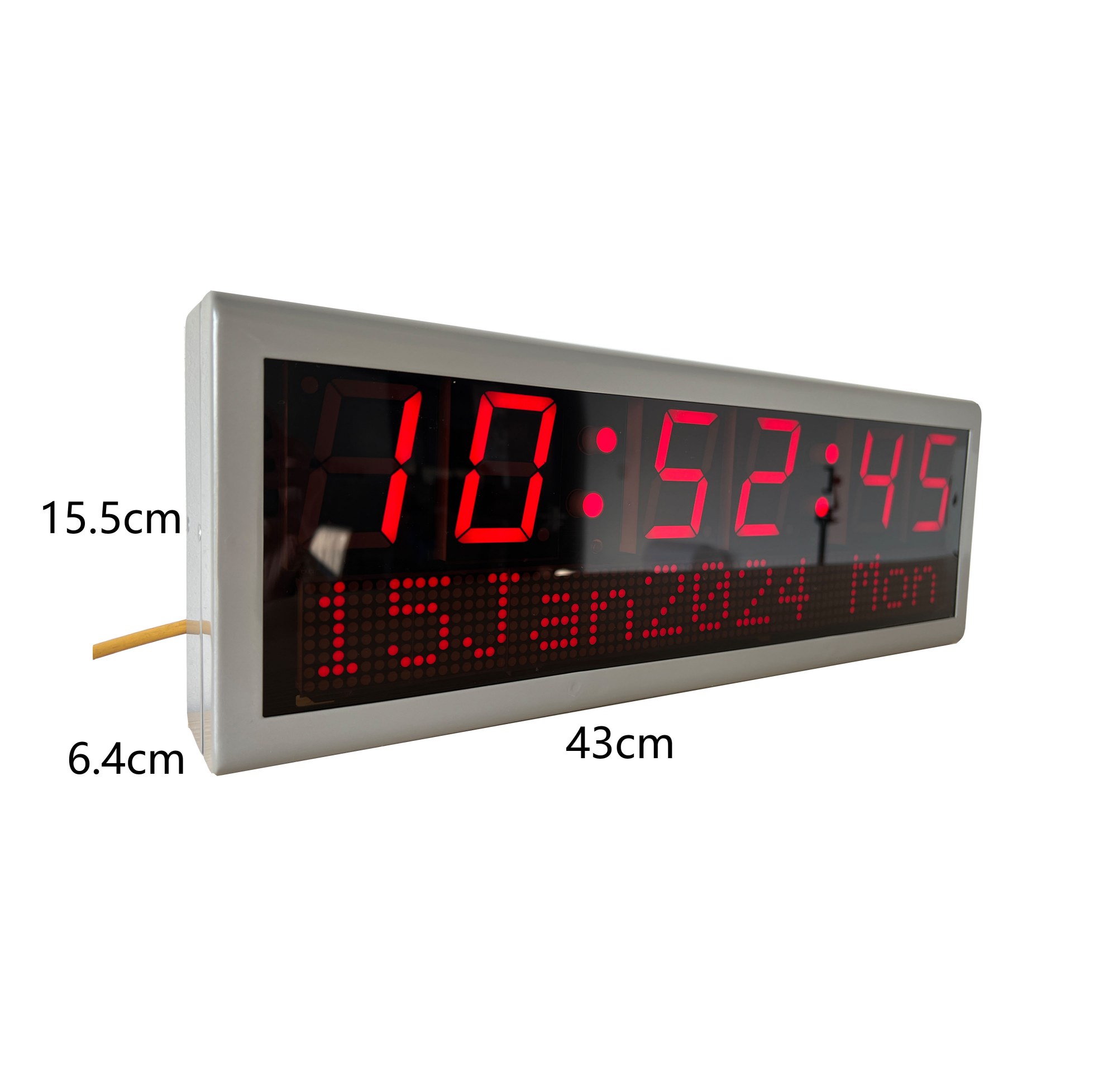

| Dimension | 43cm*15.5cm*6.4cm |
| Weight | 1.7KG |
| OEM/ODM | Yes |
| Warranty | 1 year |
| Compliance | |
| Certificate | CE, FCC, RoHS |
Application Scenario
FAQS
Q: Does the clock require a master clock to keep accurate time?
A: No. It synchronizes automatically through NTP/SNTP servers, so no master clock is needed.
Q: How is the PoE digital clock powered?
A: It's powered through Power over Ethernet (PoE). The 12V DC power is optional.
Q: What information can the clock display?
A: displays hours, minutes, seconds, the full calendar, or custom text up to 64 bytes.
Q: Does the clock support 12/24-hour formats and Daylight Saving Time?
A: Yes. Both 12/24-hour modes and DST adjustment are supported.
Q: What network settings are available?
A: The clock supports DHCP or Static IP and can connect to up to 5 SNTP servers for redundancy.
