The PoE Digital Wall Clock combines precise network-synchronized time with a clear 2.3" display. It shows hours, minutes, seconds, and full calendar information, and is powered via PoE for easy installation. The simple and sleek white metal design makes it well blended in various industries.
Item No :
SP400-W-UKOrder(MOQ) :
10pcsOEM/ODM :
YesColor :
WhiteLead Time :
1 weekWeight :
1.8kg
Product categories
2.3" White Network-Synchronized PoE Digital Wall Clock with DHCP DD/MM/YY
The PoE Digital Clock Description
The 2.3" PoE Digital Clock delivers precise, network-synchronized time with automatic updates via an NTP server, eliminating the need for a master clock. It clearly displays hours, minutes, seconds, and full calendar information. The clock is housed in durable stainless steel, available in white, black, grey metal, or grey stainless steel finishes, and is powered through Power over Ethernet (PoE) for easy installation. Supporting both 12- and 24-hour formats as well as Daylight Saving Time, it is suitable for schools, hotels, manufacturing facilities, transportation hubs, healthcare centers, military bases, government buildings, and other professional environments.
The PoE Digital Clock Features
✔ Clear display of time, full calendar, and customizable text up to 64 bytes for versatile messaging
✔ Supports connection to multiple SNTP servers (up to 5) to ensure uninterrupted synchronization
✔ Flexible network configuration via DHCP or static IP, suitable for different IT environments.
✔ Choice between 12-hour or 24-hour display modes, automatically adjusting for Daylight Saving Time.
✔ Adjustable brightness settings for optimal readability in any lighting condition.
✔ Free software for setup and monitoring, making configuration simple and convenient.
✔ Includes complimentary, user-friendly management software for easy batch configuration and monitoring.
✔ Optional additional features including bell relay for alarms, or temperature and humidity readings for facility monitoring.
Technical Specification
| Network | |
| Ethernet | 10/100 Base-TX, RJ45 |
| Data Protocol | NTP, SNTP |
| Routing Protocol | IPv4 |
| Compatibility | EEE802.3af |
| IP Addressing | Static IP address or DHCP |
| Device management | Free software |
| Support DNS | Yes |
| Power Supply | |
| Power Input | PoE or 12V DC |
| General | |
| Operating Temperature | -10℃ to 60℃ |
| Operating Humidity | 90% maximum, non-condensing |
| Display | 2.3” digit (56mm character), 8*8 dot matrix(38mm high) |
| Viewing Distance | 50 feet (15 meters) |
| Accuracy | approximately ±20 milliseconds |
| Mounting Option | Pendant, Cantilever, Wall, Surface |
| Time Format | 12 or 24 hour display |
| Material | Metal |
| Color | White (black and grey optional) |
| LED Color | Red |

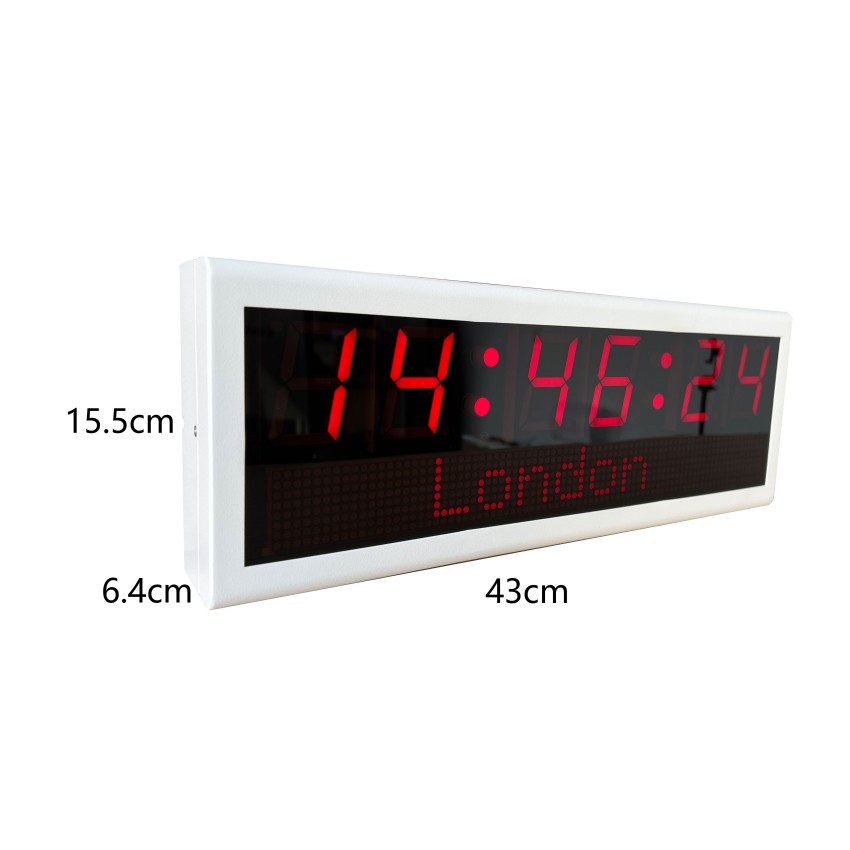

| Dimension | 43cm*15.5cm*6.4cm |
| Weight | 1.8KG |
| OEM/ODM | Yes |
| Warranty | 1 year |
| Compliance | |
| Certificate | CE, FCC, RoHS |
Application Scenario
FAQS
Q: Does the clock need an NTP server to work?
A: Yes, it requires a private or public NTP server to keep all clocks synchronized with a uniform time source.
Q: How is the clock powered?
A: The clock is powered via Power over Ethernet (PoE), with an optional 12V DC adapter if needed.
Q: What can the clock display?
A: It shows hours, minutes, seconds, full calendar information, or custom text messages up to 64 bytes.
Q: Can the clock switch between 12-hour and 24-hour formats, and handle Daylight Saving Time?
A: Yes, it supports both 12/24-hour formats and automatic DST adjustments.
Q: What network configuration options does it have?
A: The clock can be set up with DHCP or a static IP, and can connect to up to 5 SNTP servers for backup.
Q: Are there additional features available?
A: Yes, optional hardware features include bell alerts, temperature, or humidity display.
