The PoE Digital Wall Clock provides accurate network-synchronized time with automatic daylight saving adjustment. Powered via PoE, it features a clear digital display and durable black housing, making it suitable for commercial, industrial, educational, and public environments.
Item No :
SP400-B-USOrder(MOQ) :
10pcsOEM/ODM :
YesColor :
BlackLead Time :
1 weekWeight :
1.8kg
Product categories2.3" Professional-grade Black PoE Digital Wall Clcok with Automatic DST MM/DD/YY
The PoE Digital Clock Description

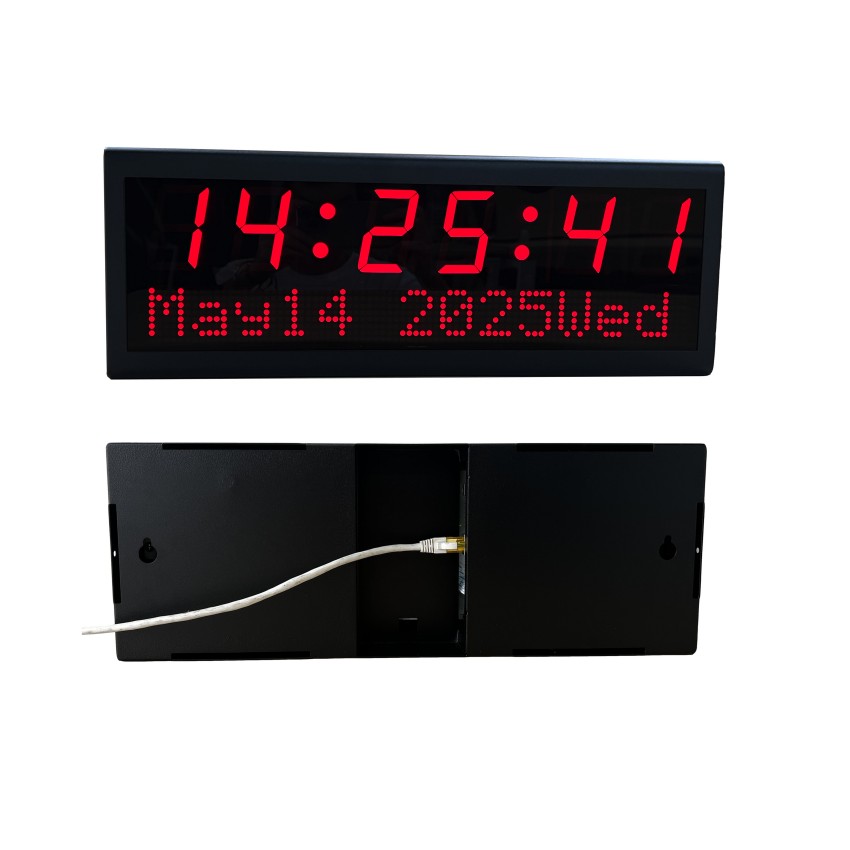

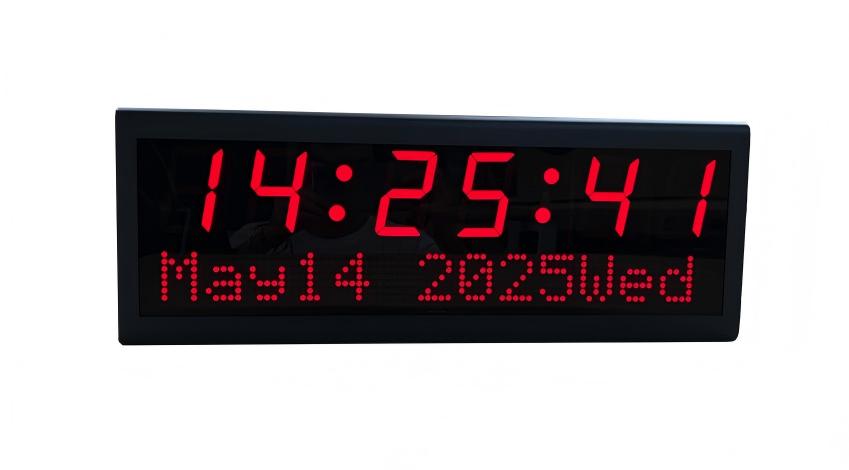

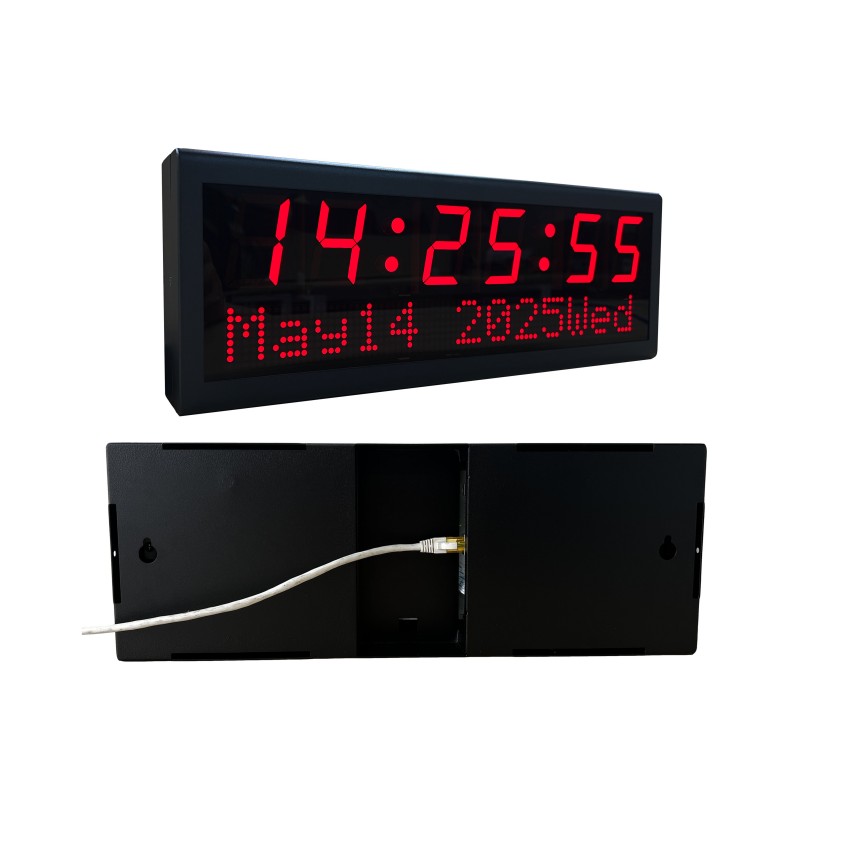

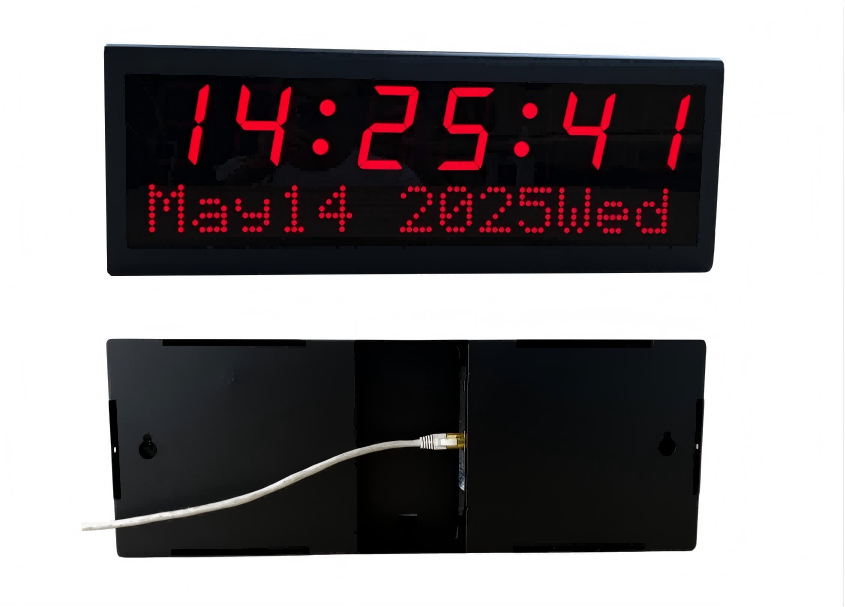

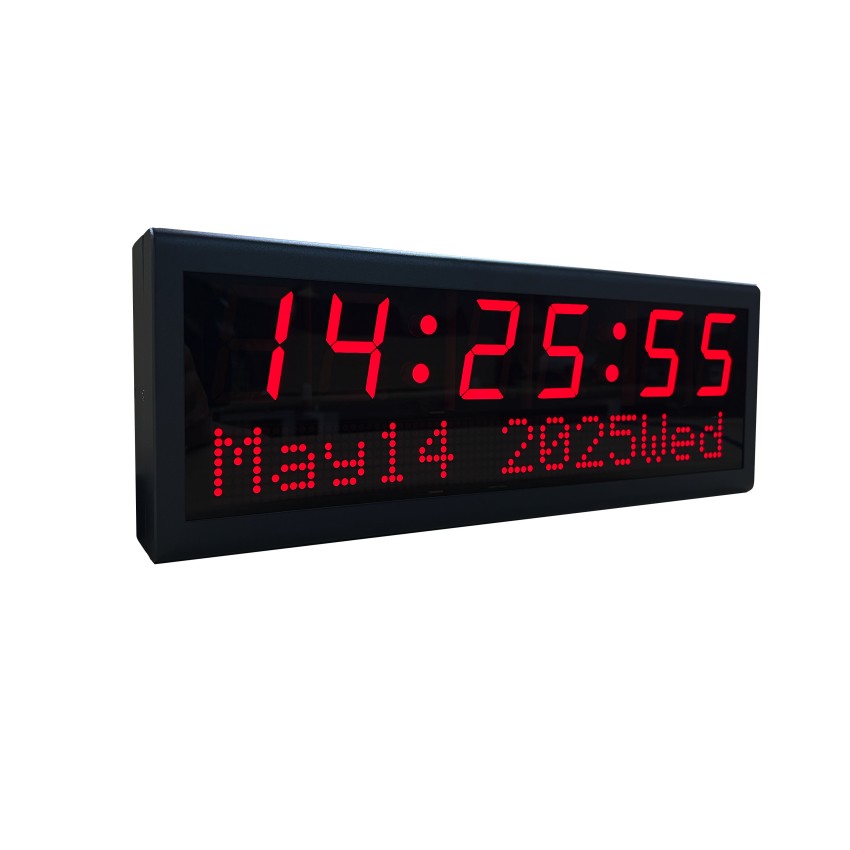

The SP400-B-US is a professional-grade 2.3-inch PoE digital clock featuring a premium black stainless steel housing that offers exceptional durability and a sleek, modern aesthetic for offices, schools, and control rooms. Unlike standard time displays, this unit provides dual functionality: it can alternate between precise NTP-synchronized time and a US-standard calendar format (MM/DD/YY), or switch to a message board mode to display custom scrolling text up to 64 bytes. Powered entirely via Power over Ethernet (PoE), it eliminates the need for external power supplies and bulky wiring. The device connects directly to your local area network (LAN) to receive time updates from local or public NTP servers, ensuring maintenance-free operation with zero drift. Its high-contrast LED display ensures visibility in various lighting conditions, making it a perfect solution for facilities requiring accurate, synchronized timekeeping without the hassle of a master clock system.
The PoE Digital Clock Features
✔ Features a versatile display mode that supports US-style Calendar (MM/DD/YY) or custom scrolling text messages (limit of 64 bytes)
✔ Engineered with high network redundancy, supporting up to 5 different SNTP servers to guarantee continuous time synchronization.
✔ Offers flexible network configuration options with full support for both DHCP auto-allocation and Static IP addressing.
✔ User-selectable 12-hour or 24-hour time format with built-in logic for automatic Daylight Saving Time (DST) adjustments.
✔ Delivers ultra-precise timekeeping with an accuracy tolerance of ±20 milliseconds relative to the time server.
✔ Equipped with adjustable brightness settings, allowing users to optimize the LED intensity for dark or bright environments.
✔ Includes complimentary, user-friendly management software for easy batch configuration and monitoring.
✔ Expandable hardware design with optional support for Bell Relay control or external Temperature/Humidity sensor display.
Technical Specification
| Network | |
| Ethernet | 10/100 Base-TX, RJ45 |
| Data Protocol | NTP, SNTP |
| Routing Protocol | IPv4 |
| Compatibility | EEE802.3af |
| IP Addressing | Static IP address or DHCP |
| Device management | Free software |
| Support DNS | Yes |
| Power Supply | |
| Power Input | PoE or 12V DC |
| General | |
| Operating Temperature | -10℃ to 60℃ |
| Operating Humidity | 90% maximum, non-condensing |
| Display | 2.3” digit (56mm character), 8*8 dot matrix(38mm high) |
| Viewing Distance | 50 feet (15 meters) |
| Accuracy | approximately ±20 milliseconds |
| Mounting Option | Pendant, Cantilever, Wall, Surface |
| Time Format | 12 or 24 hour display |
| Material | Metal |
| Color | Black (white and grey optional) |
| LED Color | Red |

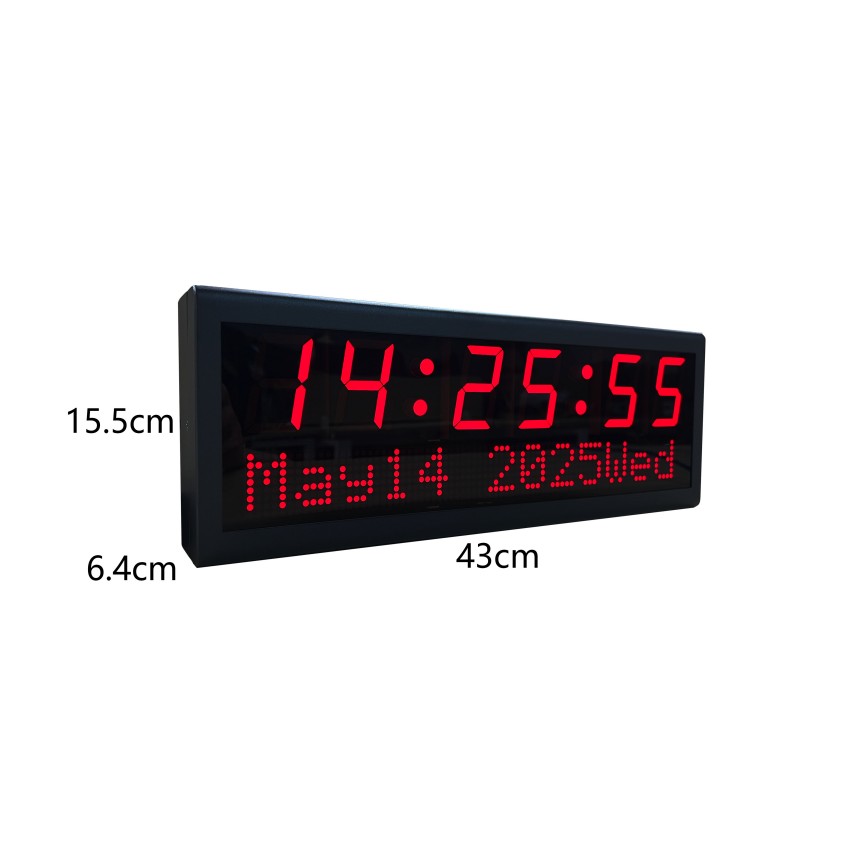

| Dimension | 43cm*15.5cm*6.4cm |
| Weight | 1.8KG |
| OEM/ODM | Yes |
| Warranty | 1 year |
| Compliance | |
| Certificate | CE, FCC, RoHS |
Application Scenario
FAQS
Q: Does the clock need an NTP server to work?
A: Yes, it requires a private or public NTP server to keep all clocks synchronized with a uniform time source.
Q: How is the clock powered?
A: The clock is powered via Power over Ethernet (PoE), with an optional 12V DC adapter if needed.
Q: What can the clock display?
A: It shows hours, minutes, seconds, full calendar information, or custom text messages up to 64 bytes.
Q: Can the clock switch between 12-hour and 24-hour formats, and handle Daylight Saving Time?
A: Yes, it supports both 12/24-hour formats and automatic DST adjustments.
Q: What network configuration options does it have?
A: The clock can be set up with DHCP or a static IP, and can connect to up to 5 SNTP servers for backup.
Q: Are there additional features available?
A: Yes, optional hardware features include bell alerts, temperature, or humidity display.
