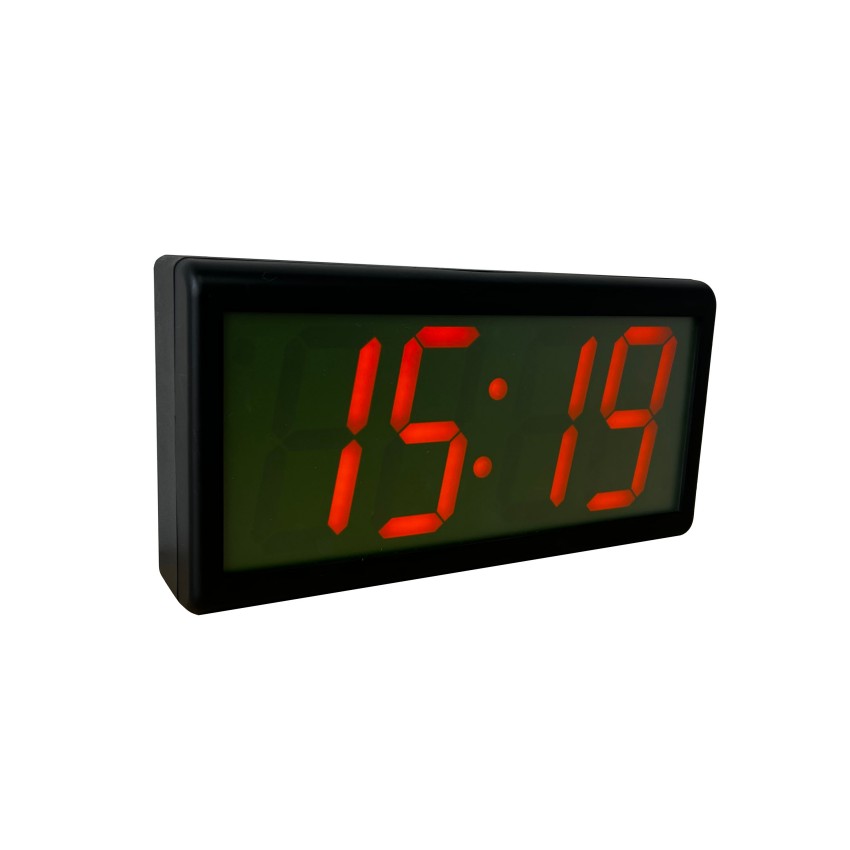

The Network Time PoE Wall Clock provides accurate network-synchronized time, perfect for public application including office, school, hotel, hospital and etc.It's made of classic black design, and led color of red, green, yellow and amber optional.
Item No :
SP100Order(MOQ) :
10pcsOEM/ODM :
YesColor :
Red, Green, Yellow, AmberLead Time :
1 weekWeight :
0.7kg
Product categories

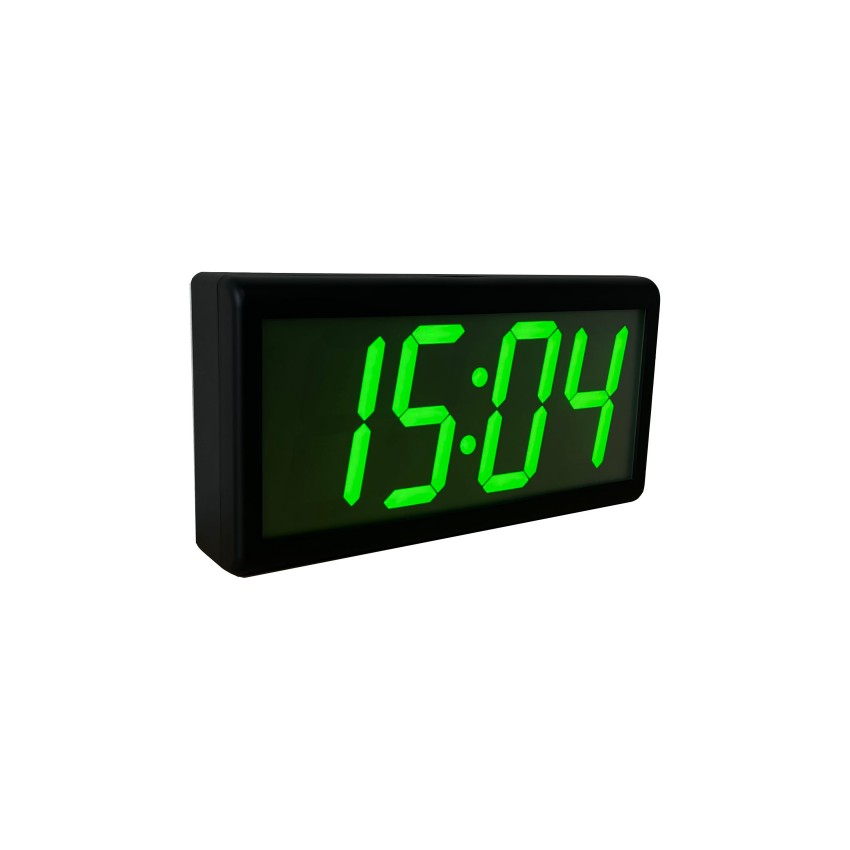

4" 4-digit Single-face Flush-Mount Network Time PoE Wall Clock with DHCP HH, MM
The PoE Digital Clock Description

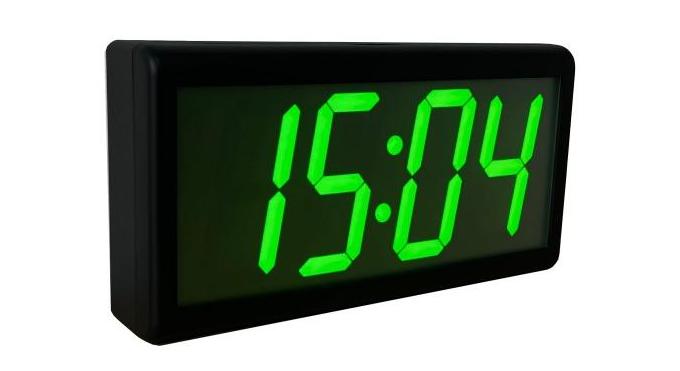

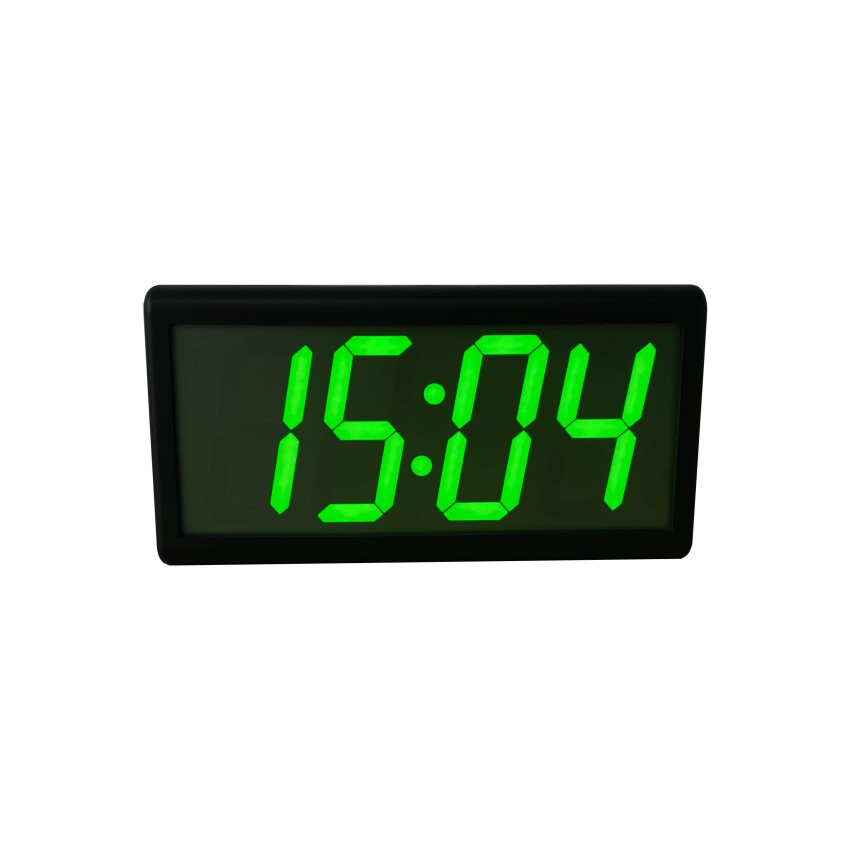

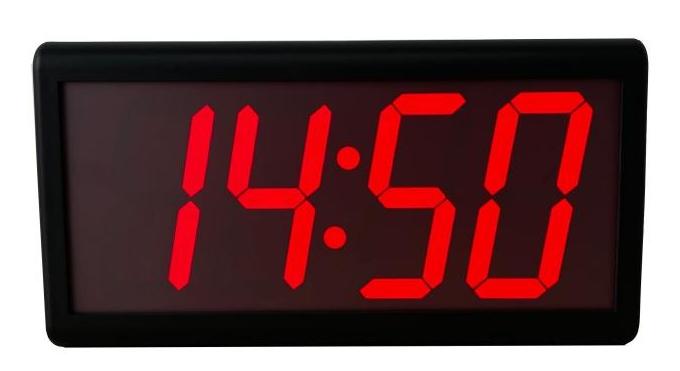

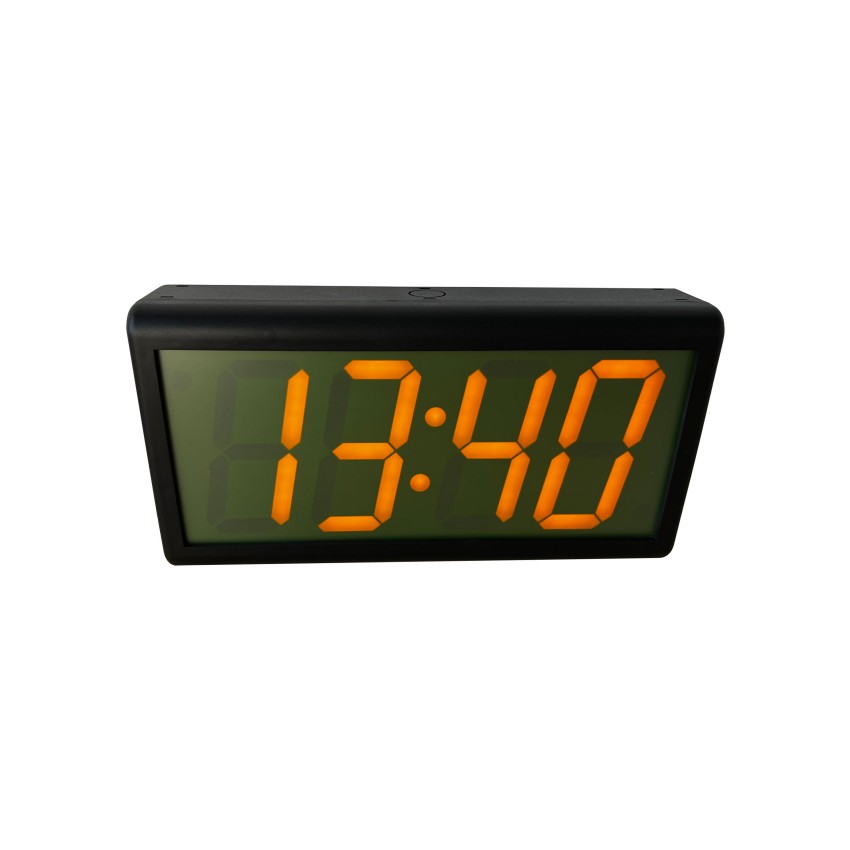

This 4" 4-Digit Single-Face Flush-Mount PoE Digital Clock is engineered for facilities that demand a sleek, integrated architectural look. Unlike standard wall-mounted units, this device features a flush-mount profile that sits recessed within the wall, making it an ideal choice for clean rooms, surgical suites, and streamlined corporate corridors. The clock showcases time in a bold 4-digit format (HH:MM) using high-intensity Red LEDs, ensuring maximum readability from long distances. Powered exclusively via Power over Ethernet (PoE), it simplifies installation by eliminating the need for AC outlets and master clocks. It operates as a precise NTP client, automatically synchronizing with local or internet time servers to maintain split-second accuracy. Additionally, the unit is versatile enough to handle realtime countdowns and automatic Daylight Saving Time adjustments, serving critical roles in schools, transportation hubs, and government buildings.
The PoE Digital Clock Features
✔ Features a high-visibility Red LED display (Green, Yellow, and Amber options are also available upon request)
✔ Ensures reliable timekeeping with redundancy support for up to 5 different SNTP servers.
✔ Adaptable network configuration supporting both Dynamic (DHCP) and Static IP addressing.
✔ User-configurable time format, allowing a quick switch between 12-hour and 24-hour display modes.
✔ Built-in logic to automatically handle Daylight Saving Time (DST) changes without manual intervention.
✔ Maintains industrial-grade precision with an internal time accuracy of ±20 milliseconds.
✔ Equipped with adjustable brightness controls to optimize visibility in varying lighting conditions.
✔ Comes with comprehensive management software provided free of charge for easy network-wide control.
Technical Specification
| Network | |
| Ethernet | 10/100 Base-TX, RJ45 |
| Data Protocol | NTP, SNTP |
| Routing Protocol | IPv4 |
| Compatibility | EEE802.3af |
| IP Addressing | Static IP address or DHCP |
| Device management | Free software |
| Support DNS | Yes |
| Power Supply | |
| Power Input | PoE or 12V DC |
| General | |
| Operating Temperature | -10℃ to 60℃ |
| Operating Humidity | 90% maximum, non-condensing |
| Digit Size | 4 inches |
| Viewing Distance | 150 feet (50 meters) |
| Accuracy | approximately ±20 milliseconds |
| Mounting Option | Pendant, Cantilever, Wall, Surface |
| Time Format | 12 or 24 hour display |
| Material | Metal |
| Color | Black |
| LED Color | Red, Green, Yellow, Amber optional |
| Dimension | 30.2cm*15.7cm*5.7cm |
| Weight | 0.7KG |
| OEM/ODM | Yes |
| Warranty | 1 year |
| Compliance | |
| Certificate | CE, FCC, RoHS |
Application Scenario
FAQ
1. Does the clock require an NTP server?
Yes, it needs a private or public NTP server to ensure a uniform and accurate time source.
2. How is the clock powered?
It is powered through Power over Ethernet (PoE). A 12V DC power option is also available.
3. What information does the clock display?
It shows hours and minutes.
4. Does the clock support 12/24-hour formats and Daylight Saving Time?
Yes, both 12-hour and 24-hour formats are supported, and it adjusts automatically for daylight saving time.
5. What network settings are available?
The clock supports DHCP or static IP and can connect to up to 5 SNTP servers for redundancy.
6. What LED colors are available?
Red, green, yellow, and amber LEDs are optional.
7. Are there any extra or customizable features?
Yes, optional hardware features include bell relay, temperature, and humidity display. Adjustable brightness and real-time countdown are also supported.
8. Where can this clock be used?
It is suitable for schools, hotels, factories, hospitals, government offices, transport hubs, military bases, and other facilities needing synchronized time.
9. Do I need additional software?
No, the clock comes with free software for easy setup.
