The PoE digital clock is powered by PoE, synchronized by NTP/SNTP. It's a popular internet connected wall clock with wide applications, single-sided, HH/MM/ss, LED Colors of red, green, yellow optional. It's a maintenance-free digital clock with large 6-digit time display for facility-wide accuracy. OEM/ODM supportive.
Item No :
SP200Order(MOQ) :
10pcsOEM/ODM :
YesColor :
Red, Green, YellowLead Time :
1 weekWeight :
0.9kg
Product categories4" 6-digit Internet Internet Synchronized Clock with Multi LED Colors 4"HH, 4"MM, 3”ss

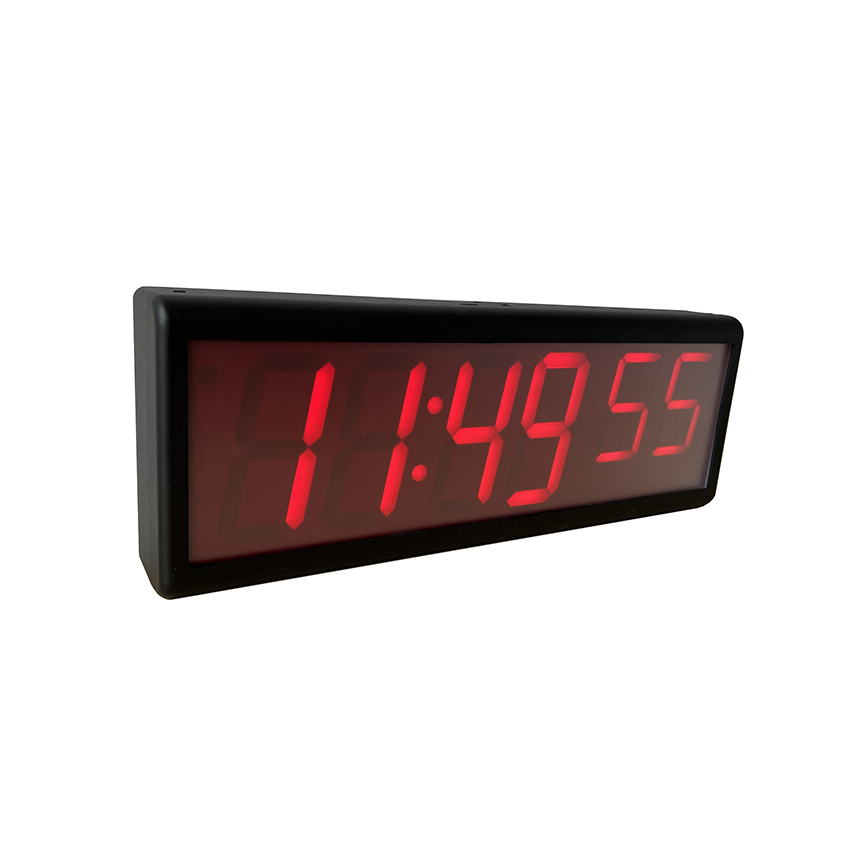

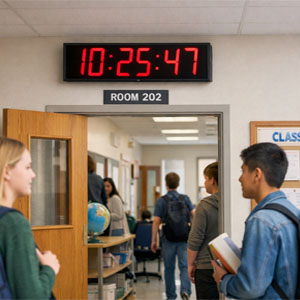

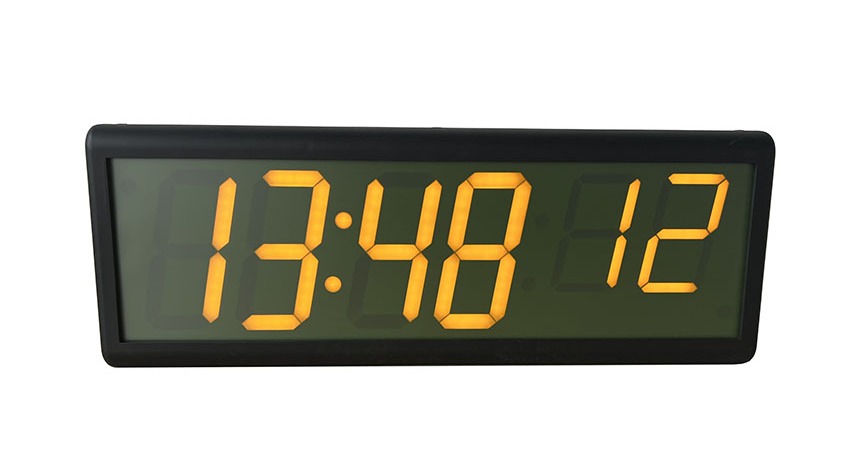

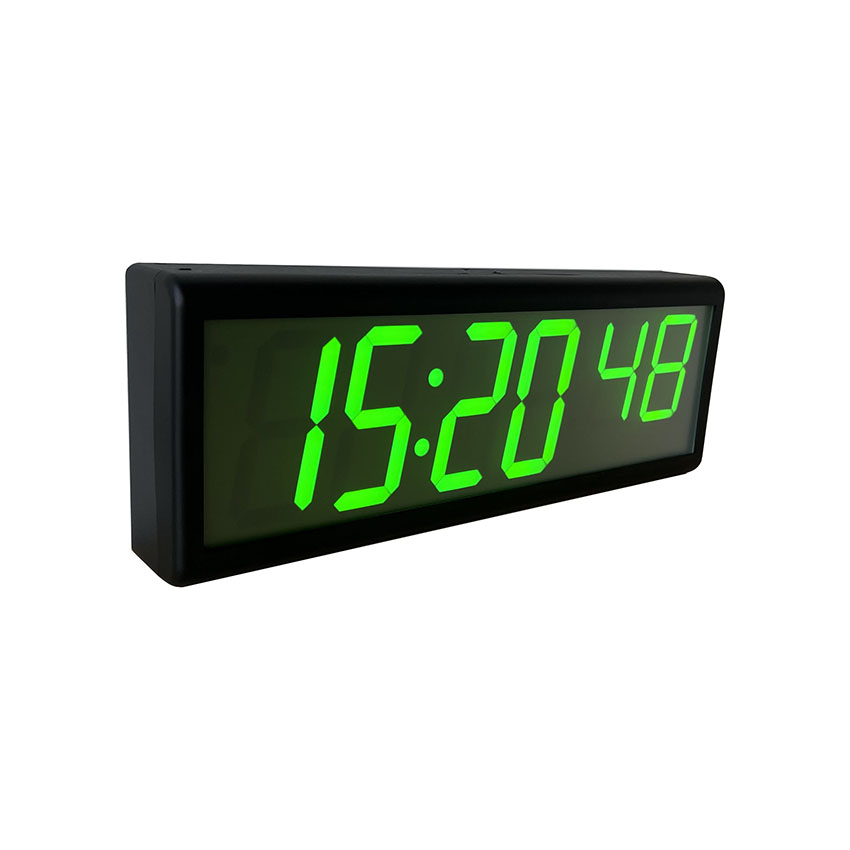

The 4" 6-digit PoE Digital Time Clock provides a clear and highly visible HH:MM:SS display for time-critical environments. With 4-inch hour and minute digits plus 3-inch seconds, it ensures instant readability in hallways, workshops, classrooms, and public spaces.Powered by Power over Ethernet (PoE), this IP digital PoE clock uses a single Ethernet connection for both power and data—no additional power adapter required. It automatically synchronizes time via NTP/SNTP and does not require a master clock, delivering consistent and accurate time across your facility.
✔ PoE One-Cable Setup, power + network over a single Ethernet cable
✔ 6-Digit Time Display – Hour/Minute 4", Seconds 3" (HH:MM:SS)
✔ High Accuracy – up to ±20 milliseconds
✔ Up to 5 SNTP Servers – redundancy for stable time synchronization
✔ 12/24H + Daylight Saving Time supported
✔ DHCP or Static IP networking options
✔ Adjustable Brightness for different environments
✔ Free Software Included
✔ Optional: Bell Relay or Temperature/Humidity Display
|
Clock Display |
|
|
Type |
LED Digital Clock, IP Digital Clock |
|
Digits |
6-digit (HH:MM:SS) |
|
Digit height |
Hour: 4 inches Minute: 4 inches Second: 3 inches |
|
Clock Dimension |

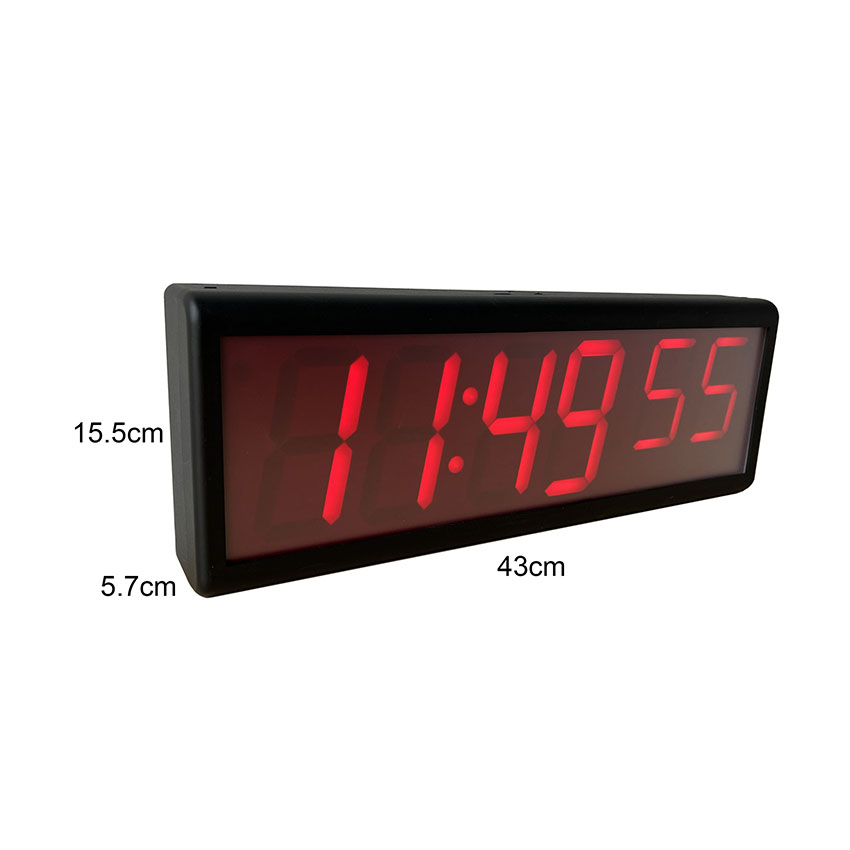

43cm*15.7cm*5.7cm |
|
Clock Color |
Black |
|
Meterial |
Metal |
|
LED color options |

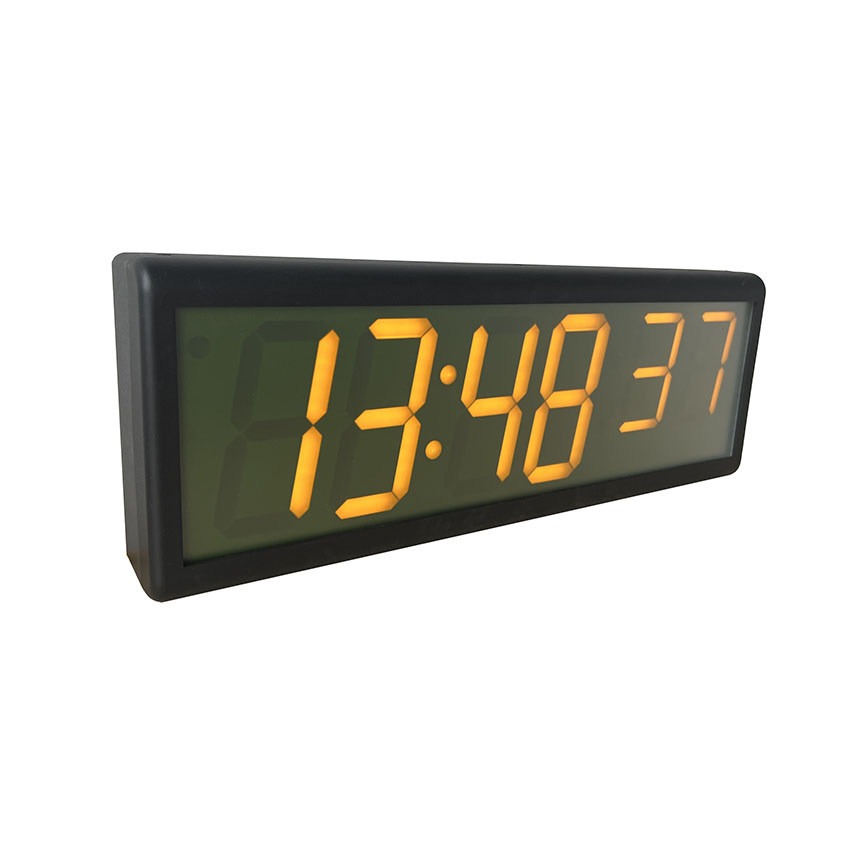

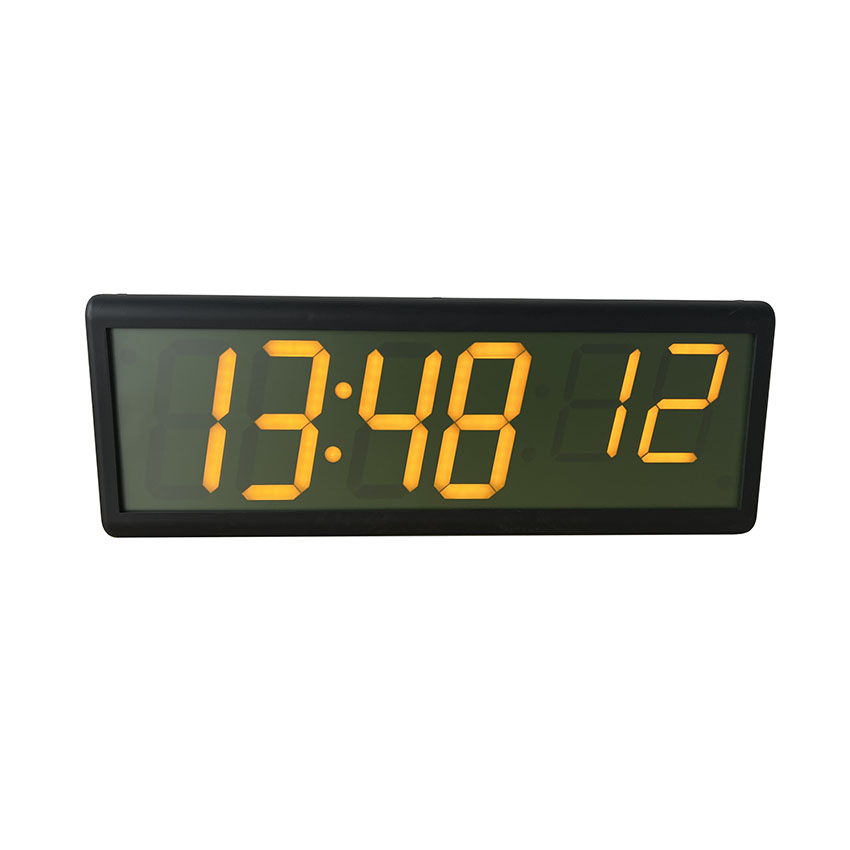

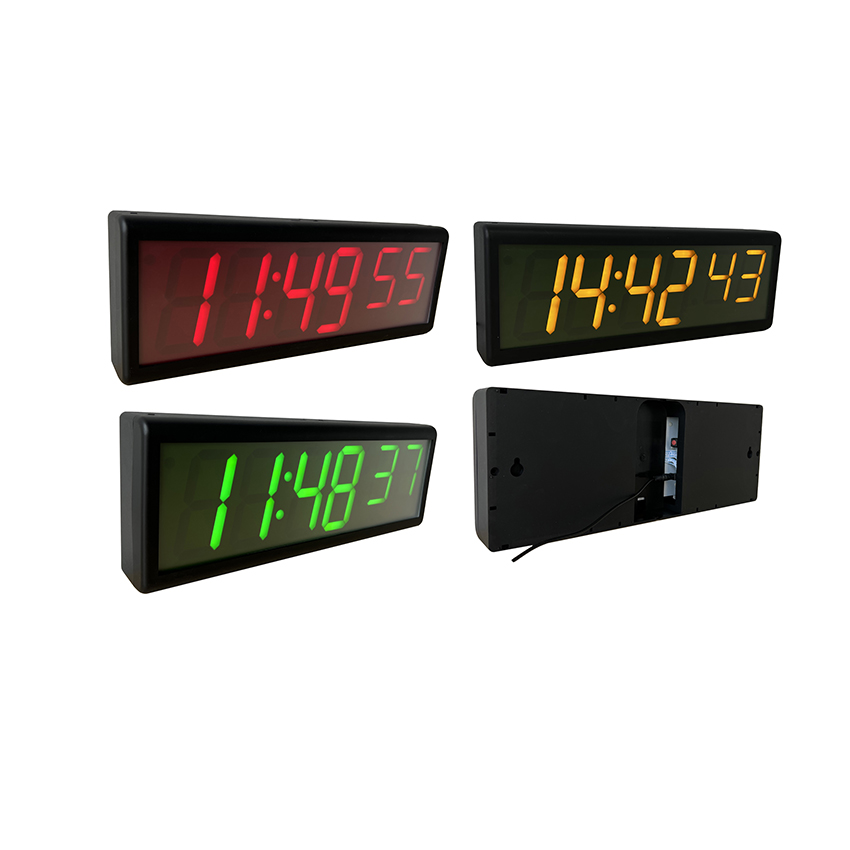

Red / Green / Yellow Optional |
|
Brightness |
Adjustable |
|
Viewing Distance |
150 feet (50 meters) |
|
Operating Temperature |
-10℃ to 60℃ |
|
Operating Humidity |
90% maximum, non-condensing |
|
Weight |
0.9KG |
|
Mounting Option |

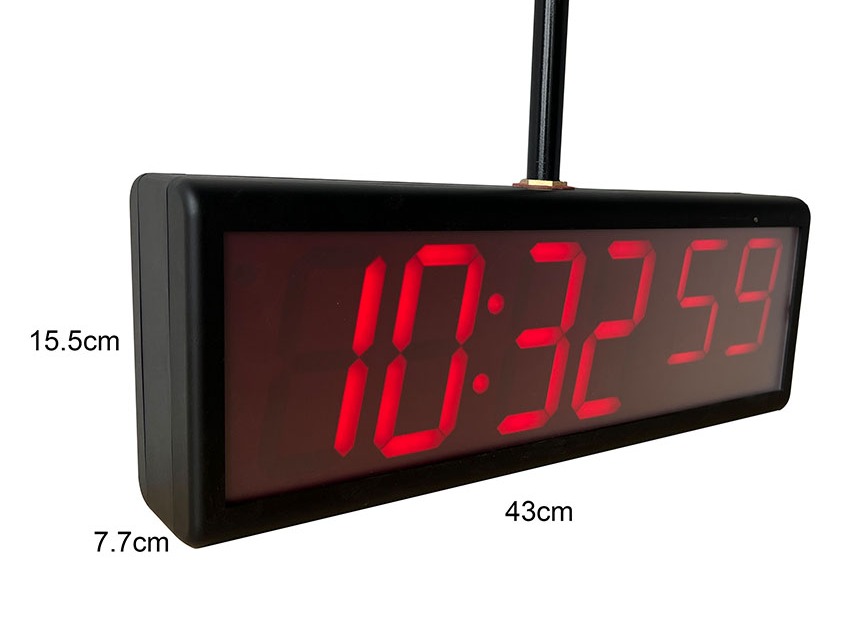

Pendant, Cantilever, Wall, Surface |
|
OEM&ODM |
Yes |
|
Time Sync & Accuracy |
|
|
Time source |
NTP / SNTP |
|
SNTP servers |
Supports up to 5 servers (redundant) |
|
Accuracy |
Approximately ±20 milliseconds |
|
Time format |
12-hour / 24-hour |
|
DST |
Daylight Saving Time supported |
|
Network |
|
|
Ethernet |
10/100 Base-TX, RJ45 |
|
Data Protocol |
NTP, SNTP |
|
Routing Protocol |
IPv4 |
|
Compatibility |
EEE802.3af |
|
IP Addressing |
Static IP address or DHCP |
|
Support DNS |
Yes |
|
Power |
|
|
Power support |
Power over Ethernet (PoE) or 12V DC |
|
Device Management software |
Free software |
|
Optional Functions |
|
|
Bell relay |
Optional |
|
Temperature / Humidity display |
Optional |
Warranty: 1 year
Compliance Certificate: CE, FCC, RoHS
Once connected to your network, the clock automatically synchronizes to your NTP/SNTP server for reliable time accuracy. It supports up to 5 SNTP servers for redundancy, ensuring stable time sync even in demanding enterprise networks.
Designed for simple deployment, the clock runs on PoE—reducing wiring complexity and avoiding the need for nearby electrical outlets. Ideal for new builds and retrofit projects.

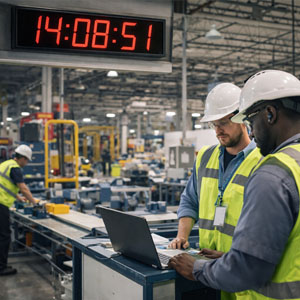

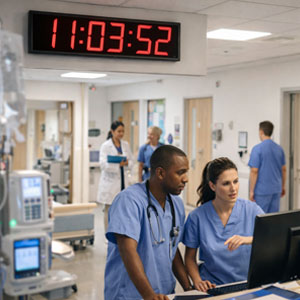

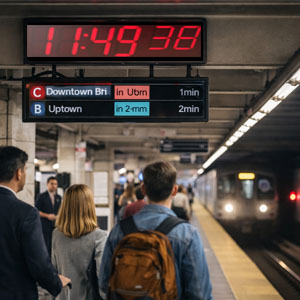

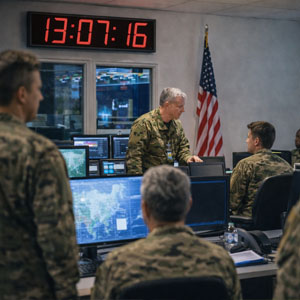

The HH:MM:SS layout is perfect for environments where seconds matter—such as healthcare, production lines, transportation hubs, and security facilities.
Supports 12/24-hour format, Daylight Saving Time, and offers adjustable brightness to match different lighting conditions.

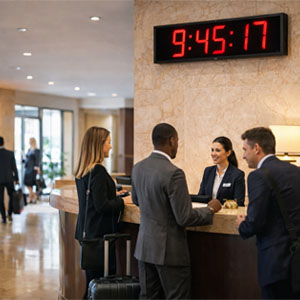

Application Scenario
The synchronized PoE time clock is widely used in six fields:
Q: Simple Explanation How This SP200 PoE Digital Clock Works
A: Plug the clock into a PoE switch (or PoE injector). Set the NTP/SNTP server in the configuration tool. The PoE Digital Clock automatically synchronizes time and keeps your facility’s clocks consistent, no manual setting needed.
Q: Does the SP200 PoE Digital Clock require a master clock to keep accurate time?
A: No. It synchronizes automatically through NTP/SNTP servers, so no master clock is needed.
Q: How is the SP200 PoE digital clock powered?
A: It's powered through Power over Ethernet (PoE). The 12V DC power is optional.
Q: What information can the SP200 PoE digital clock display?
A: It displays hours, minutes and seconds.
Q: Does the SP200 PoE digital clock support 12/24-hour formats and Daylight Saving Time?
A: Yes. Both 12/24-hour modes and DST adjustment are supported.
Q: What network settings are available?
A: The PoE digital clock supports DHCP or Static IP and can connect to up to 5 SNTP servers for redundancy.
