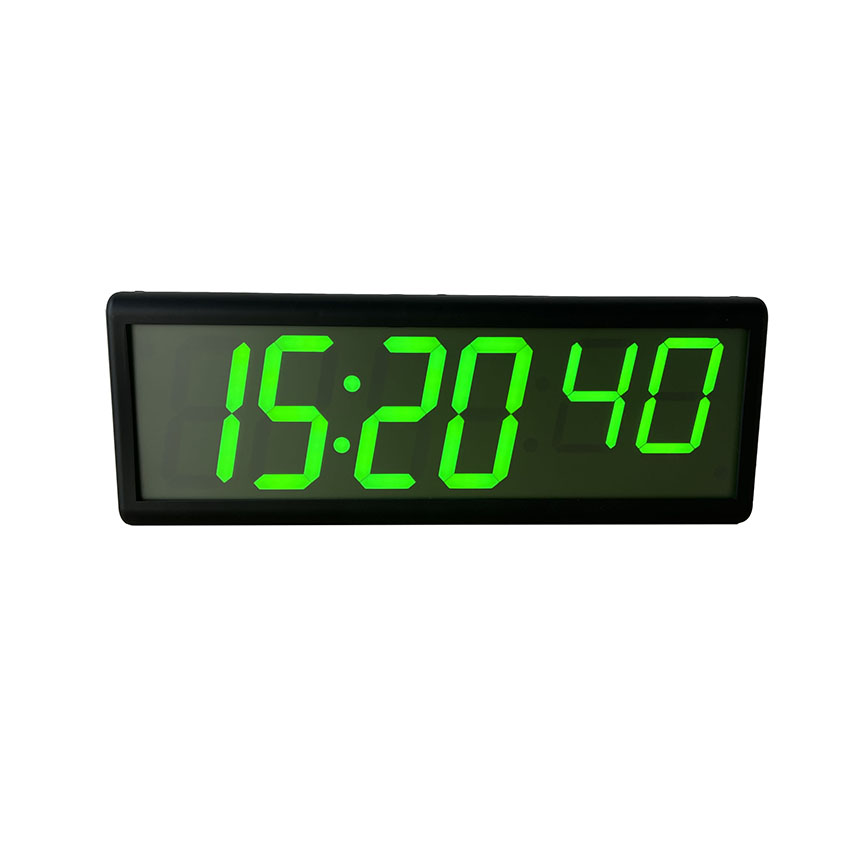

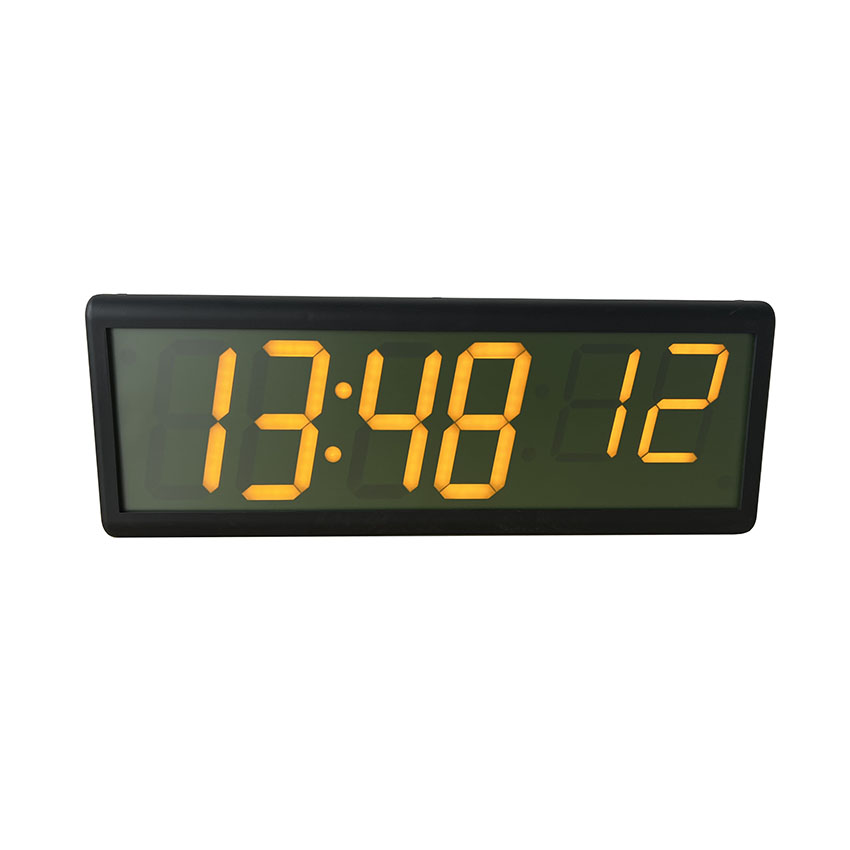

The double-sided PoE NTP Local Clock is a IP Rated Time Clock, HH/MM, LED Colors of red, green, yellow, amber optional, power adapter optional, DHCP or static IP, 12/24 hour mode, daylight saving time. Support OEM & ODM service.
Item No :
SP201Order(MOQ) :
10pcsColor :
Red, Green, YellowLead Time :
One weekWeight :
1.5kg
Product categories4" 6-digit Double-sided LED PoE NTP Local Clock, IP Rated Time Clock 4"HH, 4"MM, 3”ss
The Double-Sided PoE NTP Local Clock Description

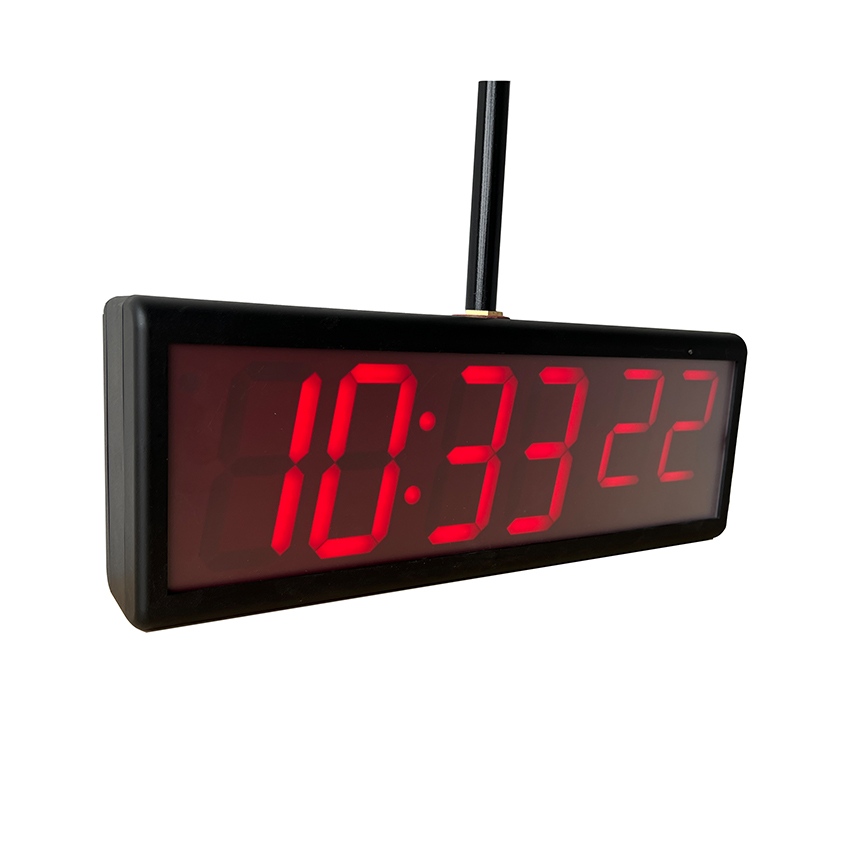

SP201 6-Digit PoE Network Clock ensure precision timing across your facility. This professional-grade, double-sided LED digital clock provides highly accurate time synchronization using Power over Ethernet (PoE), eliminating the need for complex wiring or a dedicated master clock. Featuring high-visibility 4-inch hour/minute digits and 3-inch second digits, this clock is engineered for environments where every second counts,from school hallways and hospital wards to manufacturing floors and transportation hubs.
The NTP Local Clock Features

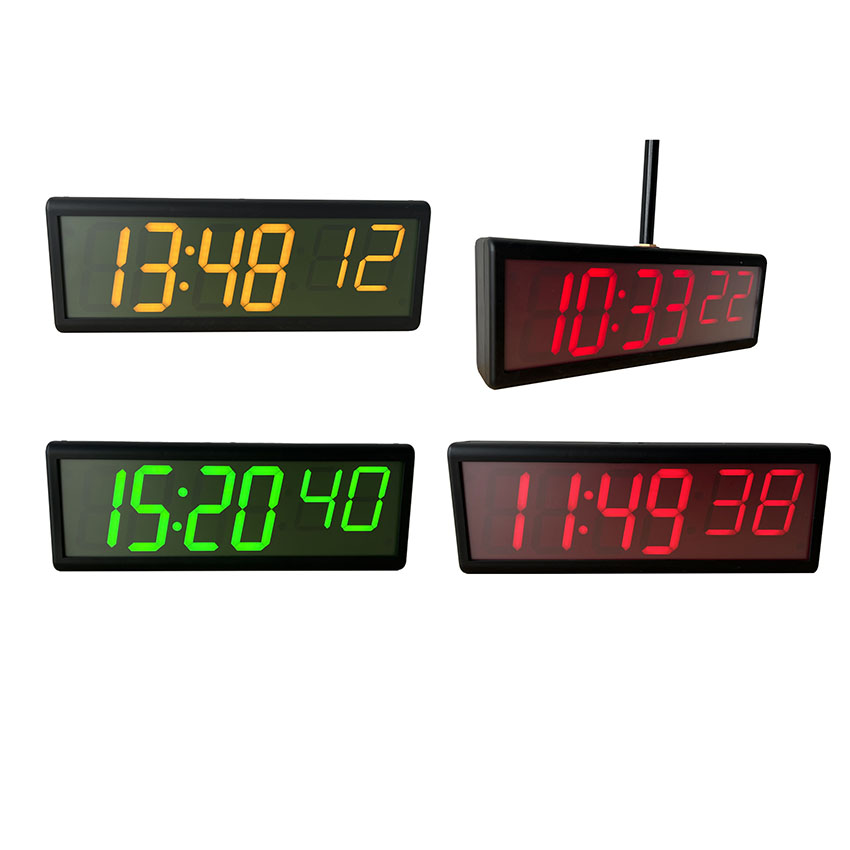

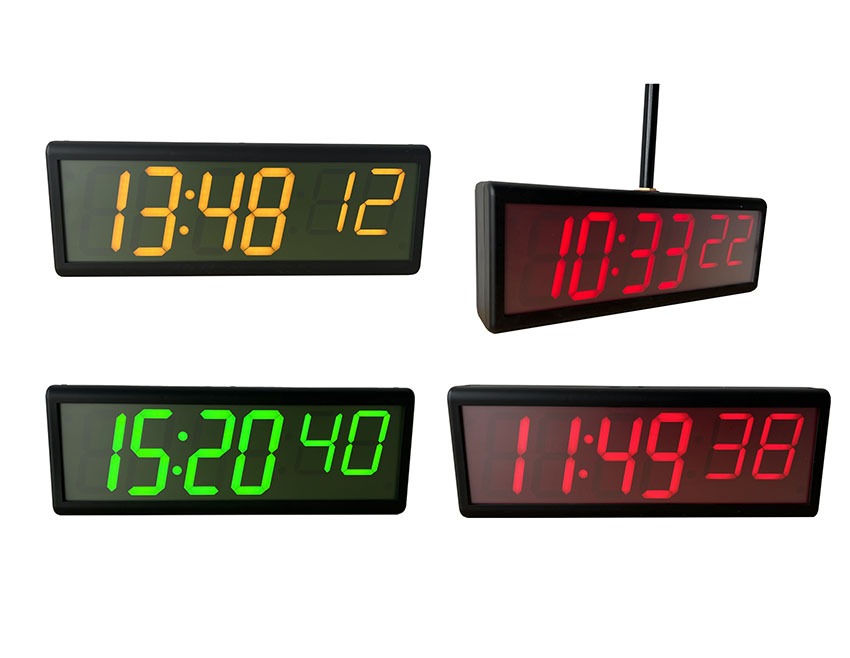

✔ LED colors of red, greem, yellow, optional
✔ Supports up to 5 SNTP servers for redundancy.
✔ DHCP or Static IP addressing.
✔ 12/24 hour mode optional
✔ Supports daylight saving time
✔ Accuracy ±20 milliseconds
✔ Adjustable brightness settings
✔ Software free of charge
✔ Bell relay or Temperature/ Humidity Display optional
Technical Specification
| IP Digital Clock | |
| Network | |
| Ethernet | 10/100 Base-TX, RJ45 |
| Data Protocol | NTP, SNTP |
| Routing Protocol | IPv4 |
| Compatibility | EEE802.3af |
| IP Addressing | Static IP address or DHCP |
| Device management | Free software |
| Support DNS | Yes |
| Power Supply | |
| Power Input | PoE or 12V DC |
| General | |
| Operating Temperature | -10℃ to 60℃ |
| Operating Humidity | 90% maximum, non-condensing |
| Digit Size | 4 inches |
| Viewing Distance | 50 feet (15 meters) |
| Accuracy | approximately ±20 milliseconds |

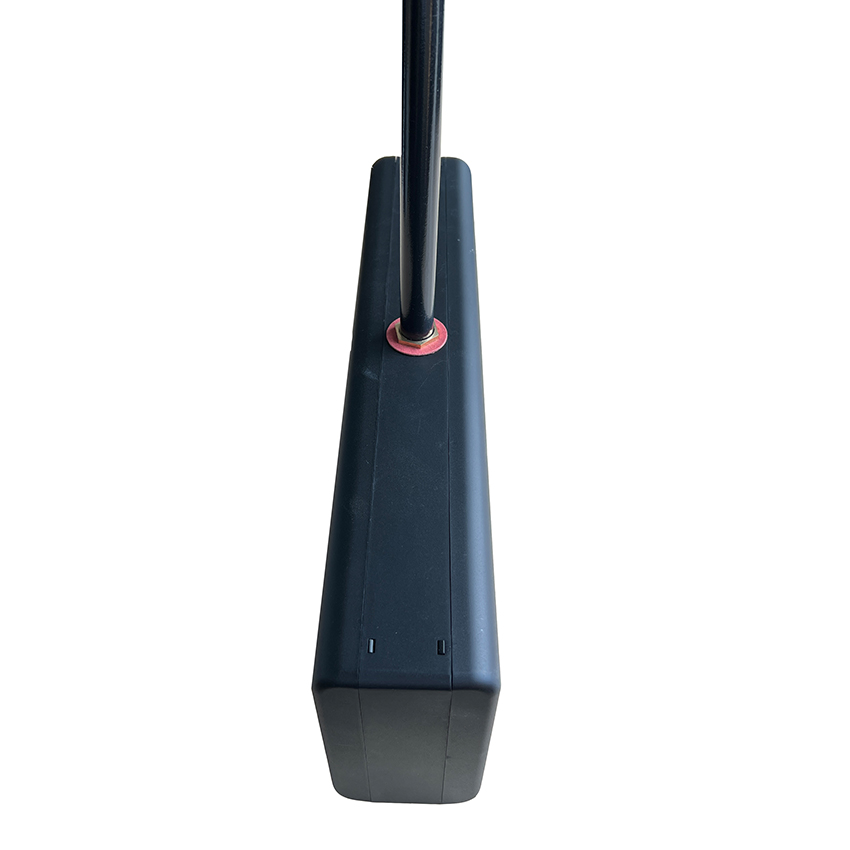

| Mounting Option | Pendant, Cantilever, Wall, Surface |
| Time Format | 12 or 24 hour display |
| Material | Metal |
| Color | Black |
| LED Color | Red, Green, Yellow optional |

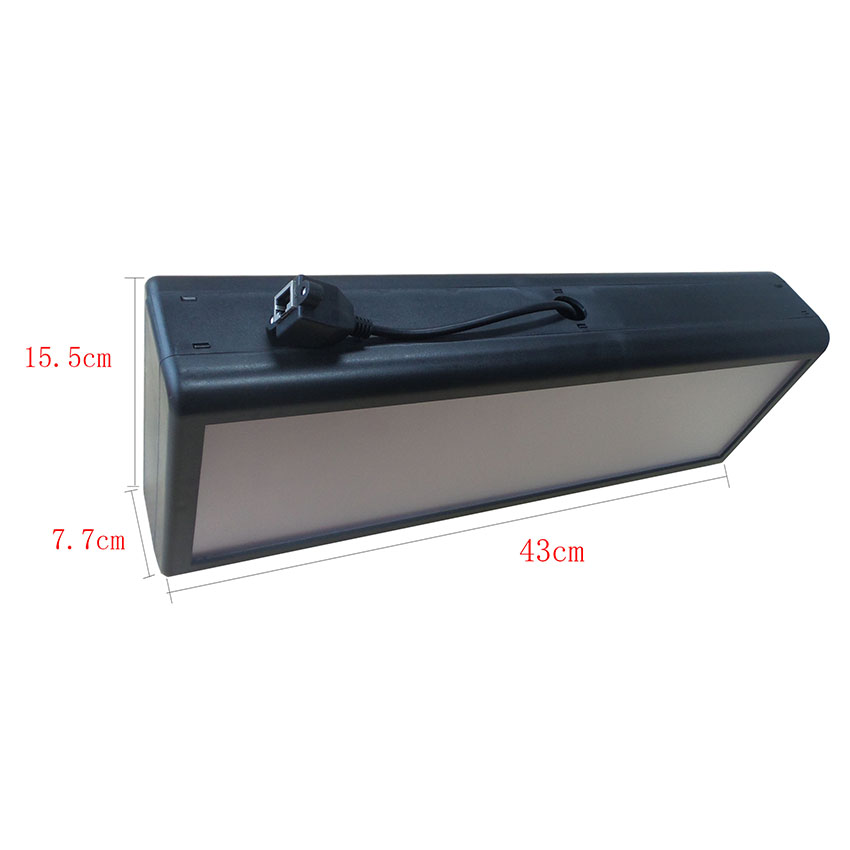

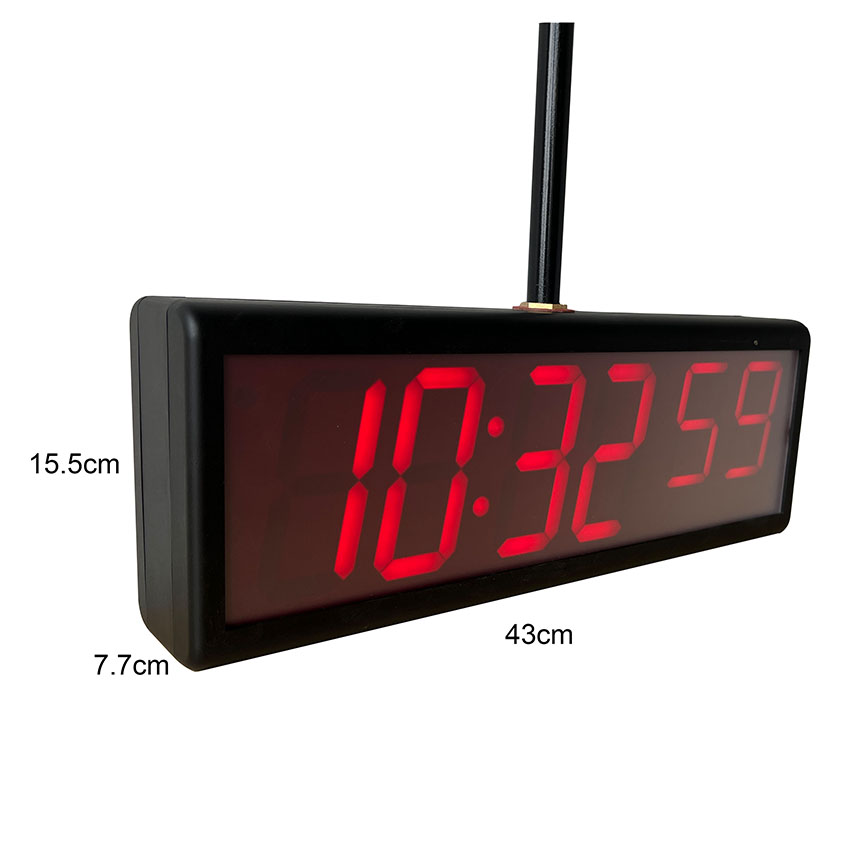

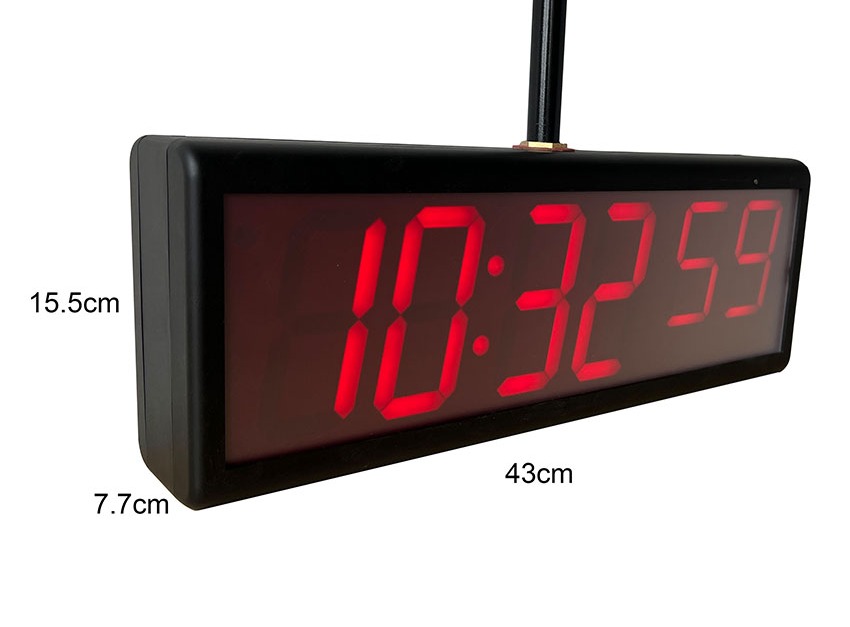

| Dimension | 43cm*15.7cm*8cm |
| Weight | 1.5KG |
| OEM/ODM | Yes |
| Warranty | 1 year |
| Compliance | |
| Certificate | CE, FCC, RoHS |
Key Benefits for Your Facility
Application Scenario
FAQS
Q: Does the SP201 IP time clock require NTP Server?
A: Yes,it will need a private or publick server to ensure uniform time source.
Q: How is the PoE IP rated time clock powered?
A: This PoE digital clock is powered through Power over Ethernet (PoE). The 12V DC power is optional.
Q: What information can the PoE network clock display?
A: It displays hours, minutes and seconds.
Q: Does this SP201 PoE digital clock support 12/24-hour formats and Daylight Saving Time?
A: Yes. Both 12/24-hour modes and DST adjustment are supported.
Q: What network settings are available of this ntp clock?
A: The SP201 clock supports DHCP or Static IP and can connect to up to 5 SNTP servers for redundancy.
Q: What extra function is optional?
A: The belling, temperature or humidity display is optional in hardware.
