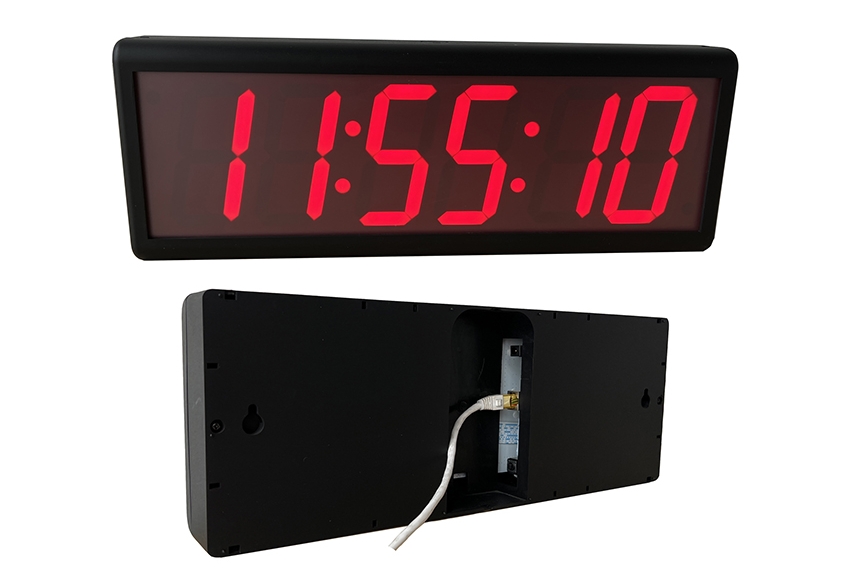

The Network IP Digital Wall Clock comes with 4 inches large screen, can be viewed clearly within 50 meters. It shows HH/MM/SS 12/24 hour mode and the LED color is set defauted as red, also green optional. It can be easily powered with one PoE cable. It also support DHCP or static IP and automatic daylight saving time for accuracy.
Item No :
SP300Order(MOQ) :
10pcsColor :
Red, GreenLead Time :
One weekWeight :
0.9kg
Product categories4" 6-digit Network IP Digital Wall Clock for Synchronized Clock System HH, MM, SS
The PoE Clock Description
The 4" PoE time clock can display the hour, minute, second. The digits size will be 4 inches. It has LED color of red, green options. This IP digital Clock is operated via Power over Ethernet (PoE), receiving automatic synchronization of time via NTP server, no need of master clock. The ntp Poe clock supports 12 or 24 hour format Daylight Saving Time. The synchronized time can be applied in various facilities, including school, hotel, transportation, healthcare, miltary base, government, etc.
The PoE Time Clock Features
✔ LED colors of red, green, optional
✔ Supports up to 5 SNTP servers for redundancy.
✔ DHCP or Static IP addressing.
✔ 12/24 hour mode optional
✔ Supports daylight saving time
✔ Accuracy ±20 milliseconds
✔ Adjustable brightness settings
✔ Software free of charge
✔ Bell relay or Temperature/ Humidity Display optional
Technical Specification
| Power Over Ethernet PoE Clock Synchronized Clock System | |
| Network | |
| Ethernet | 10/100 Base-TX, RJ45 |
| Data Protocol | NTP, SNTP |
| Routing Protocol | IPv4 |
| Compatibility | EEE802.3af |
| IP Addressing | Static IP address or DHCP |
| Device management | Free software |
| Support DNS | Yes |
| Power Supply | |
| Power Input | PoE or 12V DC |
| General | |
| Operating Temperature | -10℃ to 60℃ |
| Operating Humidity | 90% maximum, non-condensing |
| Digit Size | 4"HH, 4"MM, 4”SS |
| Viewing Distance | 150 feet (15 meters) |
| Accuracy | approximately ±20 milliseconds |
| Mounting Option | Pendant, Cantilever, Wall, Surface |
| Time Format | 12 or 24 hour display |
| Material | Metal |
| Color | Black |
| LED Color | Red, Green optional |

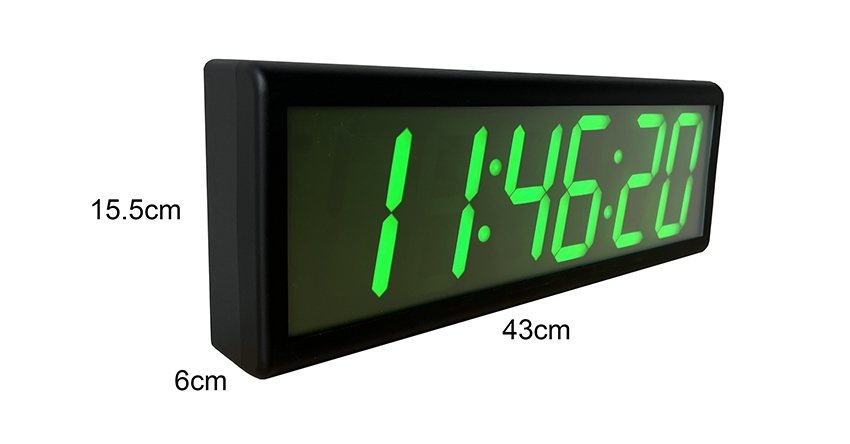

| Dimension | 43cm*15.7cm*5.7cm |
| Weight | 0.9KG |
| OEM/ODM | Yes |
| Warranty | 1 year |
| Compliance | |
| Certificate | CE, FCC, RoHS |
Key Benefits for Your Facility
Application Scenario
FAQS
Q: Does the PoE clock require a master clock to keep accurate time?
A: No. This PoE Clock Synchronized Clock synchronizes automatically through NTP/SNTP servers, so no master clock is needed.
Q: How is the PoE clock powered?
A: This SP300 PoE clock is powered through Power over Ethernet (PoE). The 12V DC power is optional.
Q: What information can the clock display?
A: It displays hours, minutes and seconds.
Q: Does this SP300 PoE clock support 12/24-hour formats and Daylight Saving Time?
A: Yes. Both 12/24-hour modes and DST adjustment are supported.
Q: What network settings are available?
A: The SP300 PoE clock supports DHCP or Static IP and can connect to up to 5 SNTP servers for redundancy.
